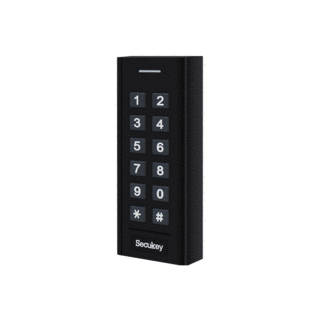

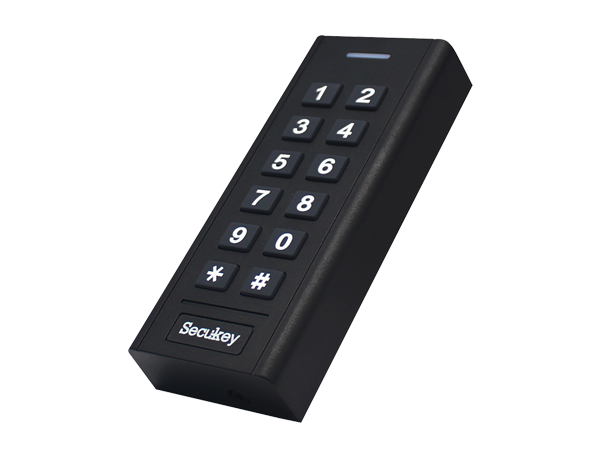

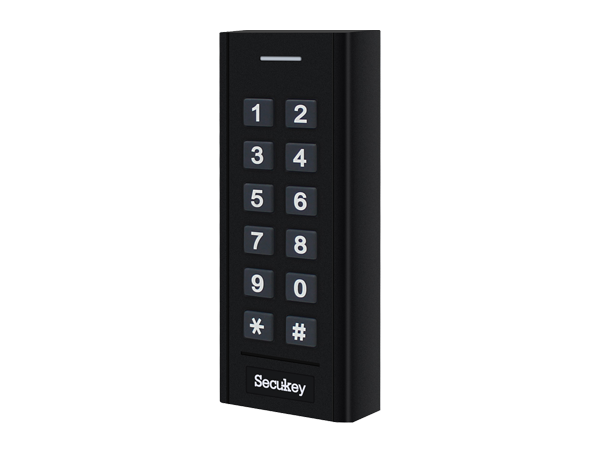

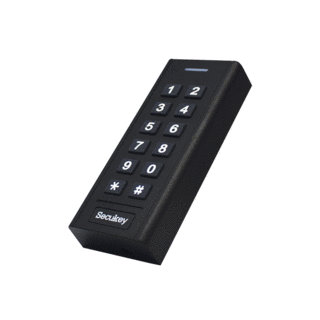

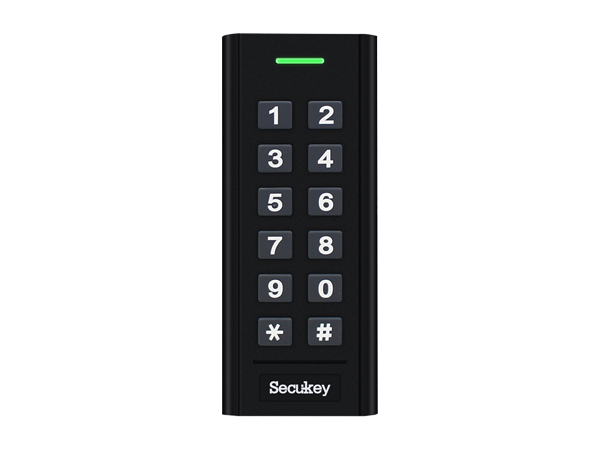

XK6-RX OSDP Keypad Reader

Available from Secukey Technology Co., Ltd.China

Description

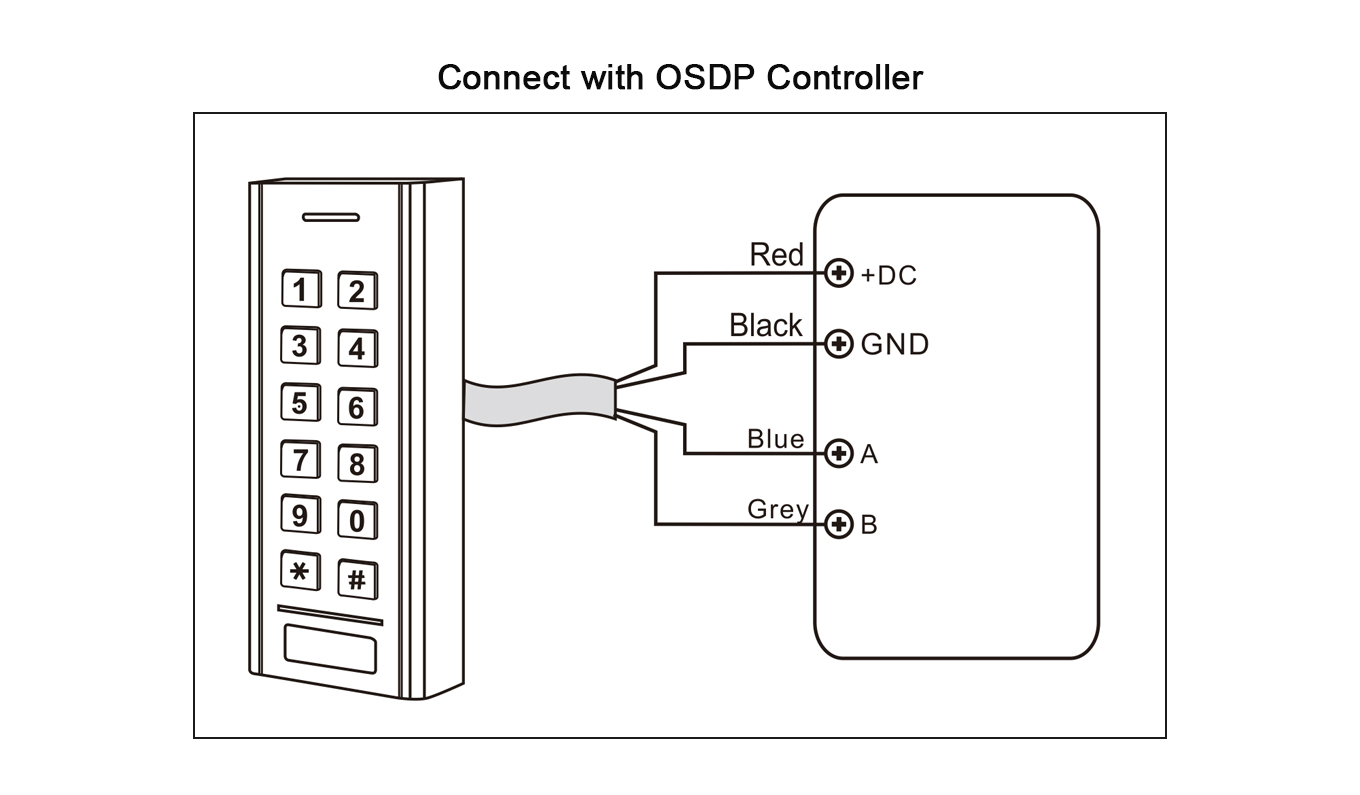

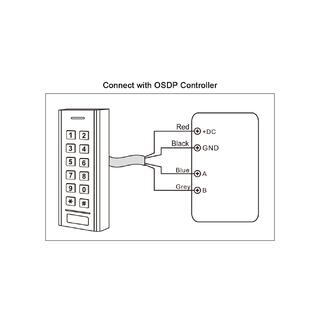

> OSDP reader, work with OSDP controller
> Wiegand reader, work with wiegand controller(optional)
> Waterproof, conforms to IP66
> Card Type: 125KHz HID, EM & 13.56MHz NXP Mifare, Mifare Plus, DesFire,
Mifare Pro, Mifare UltraLight, Mifare Class 4K, NFC and CPU cards
> PIN output: 4 bits, 8 bits or virtual card number

It is a waterproof OSDP keypad reader, can read 125KHz EM card, HID card &13.56MHz Mifare cards.

Specifications:

Operation Voltage: 12-18V DC
Standby Current: ≤50mA
Frequency: 125KHz & 13.56MHz
Read Range: 2~4 cm
Keypad Transmission Format: 4 bits (factory default), 8 bits or virtual card number can be set
Operating Temperature: -40°C~60°C
Operating Humidity: 0%~98%RH
Color: Black
Index of Protection: IP66
Net Weight: 150g
Shipping Weight: 200g

Specifications

Brand
Secukey
Model
XK6-RX
Country of origin
China
