Hydraulic winches

Description

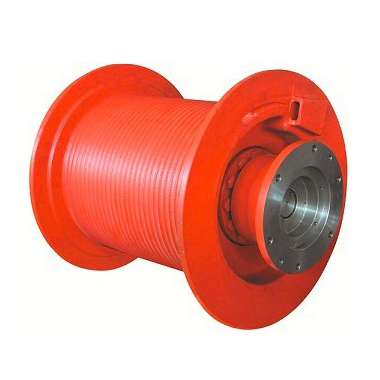

Planetary winch gearboxes of the HFW series are composed of 16 finely spaced frame sizes. The compact design allows the gearbox to be integrated into the winch drum. The failsafe brake can be integrated inside the gearbox or mounted externally, with common lubrication for the gears. Electrically driven versions are available with both in-line and right-angle configurations. Torque ratings are organized by FEM class, in accordance with minimum approved class safety factors for gears.

Key features:
Class approval program
ATEX conformity on demand
Torque ratings are organized by FEM class
The failsafe brake can be integrated inside the gearbox or mounted externally, with common lubrication for the gears

Specifications:

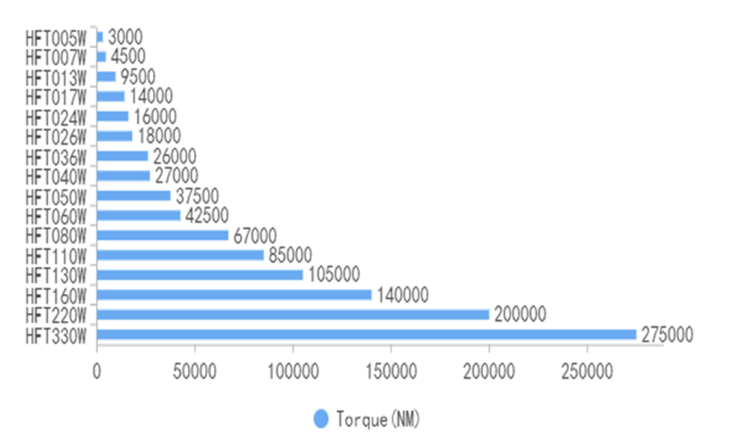

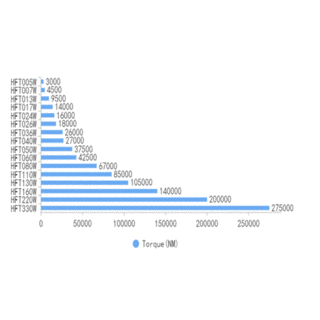

Torque range
3.000 ... 275.000 Nm
Gear ratios
5.3....497
Input speed
up to 4,000 rpm
Applicable motors
Cartridge axial piston hydraulic motors
Flanged axial piston hydraulic motors
Hydraulic orbit motors

Specifications

Country of origin
China
