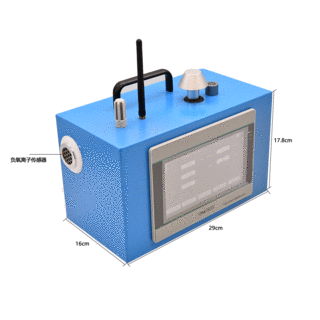

ONETEST-200XP negative oxygen ion detector

Description

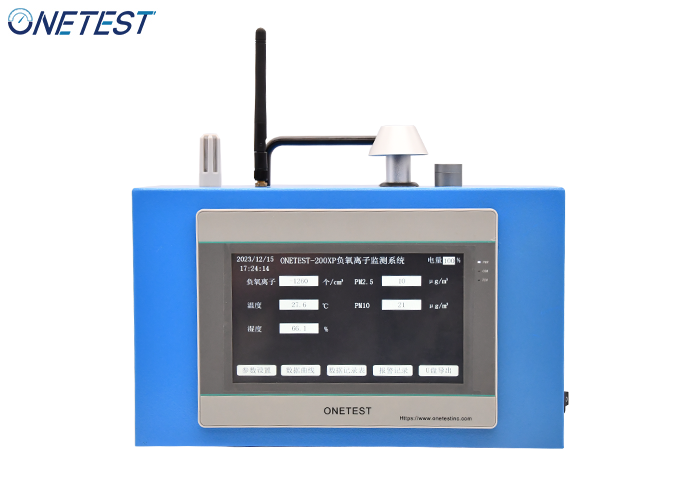

ONETEST-200XP is instrument technology based on 15 years in indoor and outdoor air quality monitoring and instrumentation development experience research and development of a high performance environment negative oxygen ion detector, 7 inch touch LCD screen, multiple parameter display data at the same time, curve, alarm value, etc.,

Product model: ONETEST-200XP
Product manufacturer: Shenzhen Wanyi Technology Co., LTD
Type of measurement: negative ions/temperature/humidity, can increase PM2.5/PM10
Measuring range: 0-2 million /cm³
Precision: ±15%
Application fields: forestry research, park scenic spots, university research, environmental monitoring, air quality assessment research and other fields

1. Have the positive and negative ion measurement function; users can switch by themselves

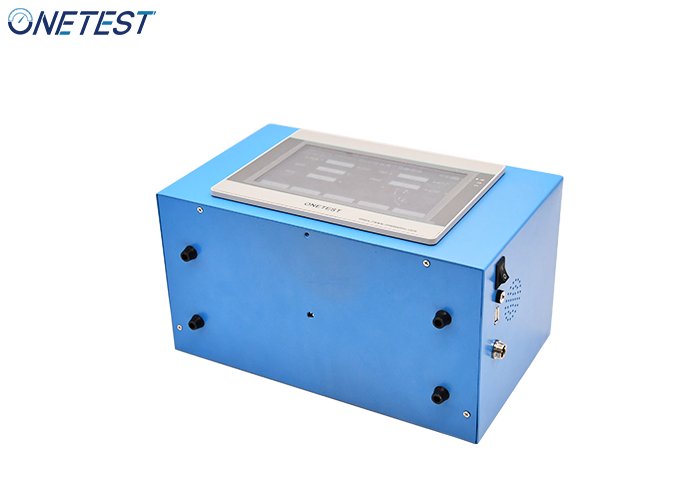

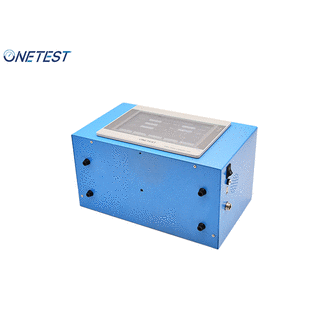

2, the bottom of the reserved tripod installation hole outside the measurement is very convenient
3. Customizable measurement parameters and measurement range
3, high measurement accuracy, sensitive response, strong anti-interference ability;
4. With RS232 optional data management platform for data output
5, multiple indicators measured at the same time with real-time curve drawing
6. The tional data release function can update real-time data of LED display multimedia display terminal screen

Qualification:

principle of ion: coaxial cylinder capacitive collector
Collector length: 14cm
The inner radius: 0.35cm
blowing rate: About 2.3m3/h
polarizing: 15.8V,10.5V Optional
absolute ionic: 0.4,0.6cm2/V. S selectable
certainty of: Better than ± 15%
temperature ℃: -20~60℃, resolution: 0.1℃
humidity%RH: 0-100% RH, resolution: 0.1% RH
accuracy: Better than ± 15%

Packing list:

Include: portable protective box, host, charger, software CD, cleaning cotton swab, instruction manual, calibration report, ground wire, qualification certificate, warranty card.(Tritripod is optional)

Specifications

Model
ONETEST-200XP
Country of origin
China
