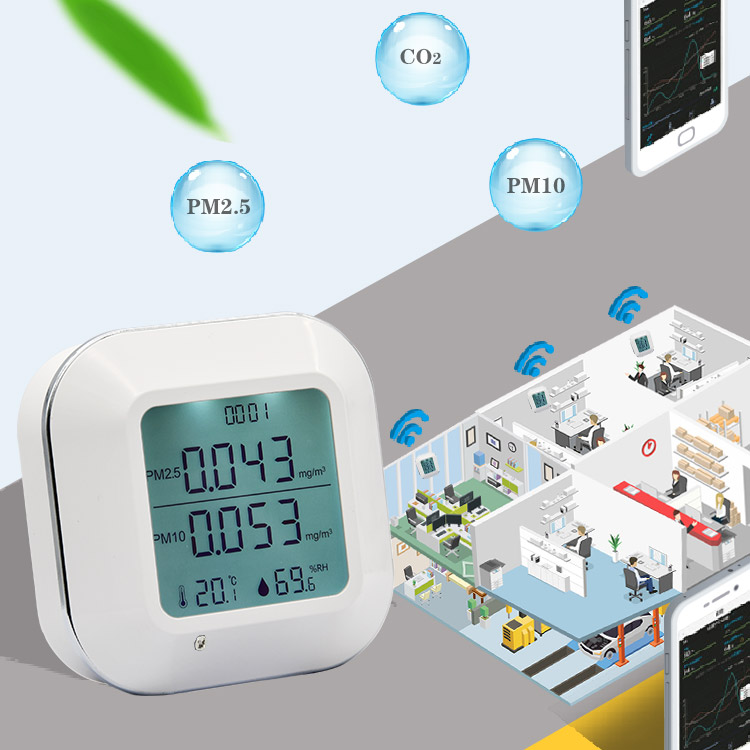

ONETEST - Wall-mounted air quality monitor AQM-80 PM2.5 / PM10 / TEMP / HUM / CO2 / VOC / CH2O RS485 output

Description

The technologies have been upgraded to adapt to the fast-changing needs of the competitive market. As the manufacturing technologies advance, the performance of the finished AQM-80 PM2.5/PM10/TEMP/HUM/CO2/VOC/CH2O RS485output Wall-mounted air quality monitor has been improved a lot.It has an enormous effect on the field(s) of Gas Analyzers.

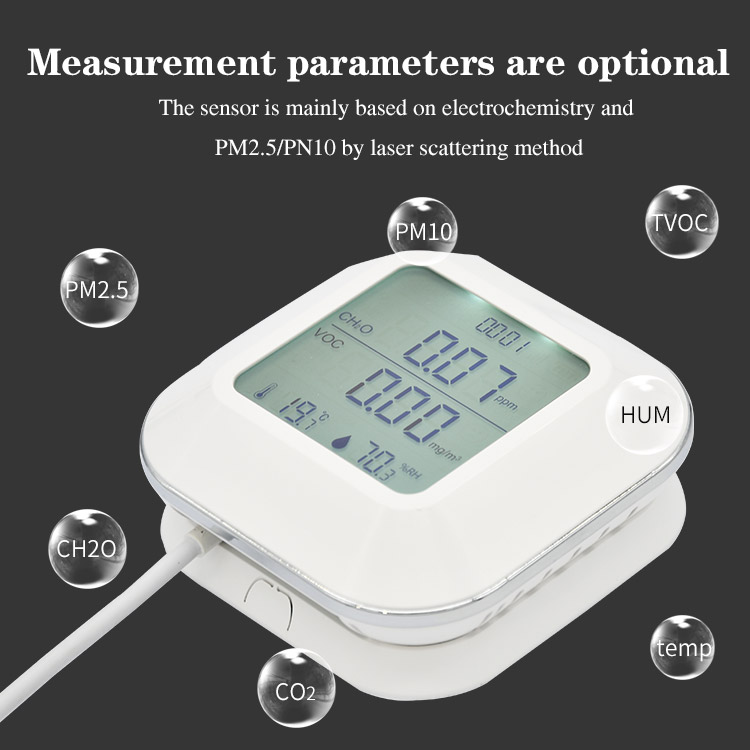

Measurement Range:
TEMP:-20 ~ 50℃
humidity:15~ 100%RH
CH2O:0~2 ppm
TVOC:0~5.00mg/m³
PM2.5:0~1.000 mg/m³
PM10:0~2.000mg/m³
CO2:400~4000 ppm

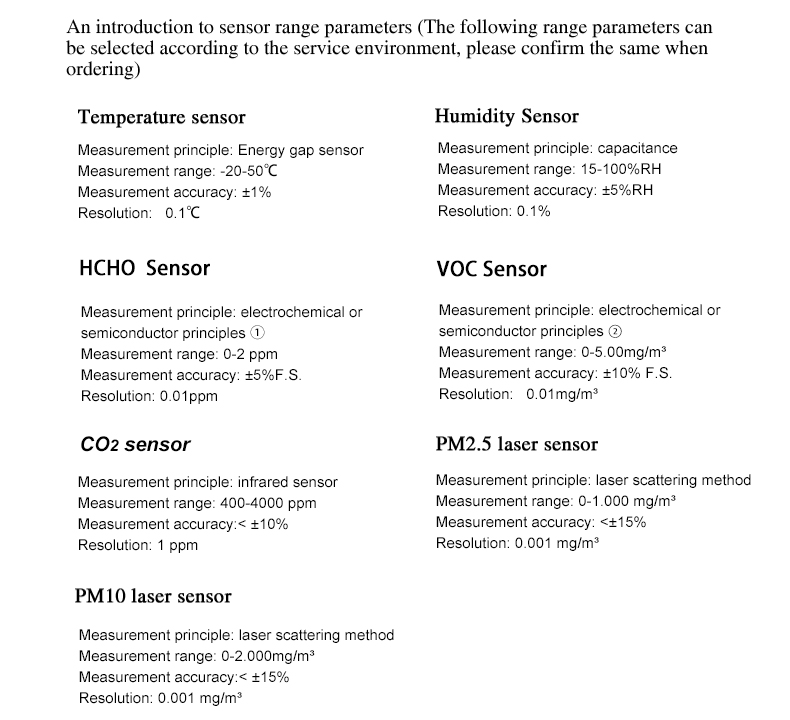

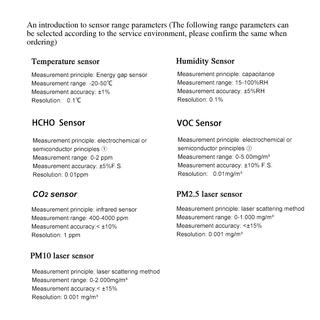

Accuracy: Parameter table below
shipping: Express Sea freight · Land freight · Air freight
Customization: Customized logo (Min. Order: 500 pieces) , Customized packaging (Min. Order: 500 pieces) , Graphic customization (Min. Order: 500 pieces)

Shenzhen Wanyi Technology Co., Ltd. always upholds the principle of'complementary advantages, mutual benefit and win-win', and has established long-term cooperative relations with many well-known domestic and foreign companies. it is highly acclaimed by the clients for its unique features. Shenzhen Wanyi Technology Co., Ltd. will introduce more advanced and innovative technology, and will gather more professional talents together.

Warranty: 1 year
Customized support: OEM, ODM, OBM
Brand Name: KAINAFU

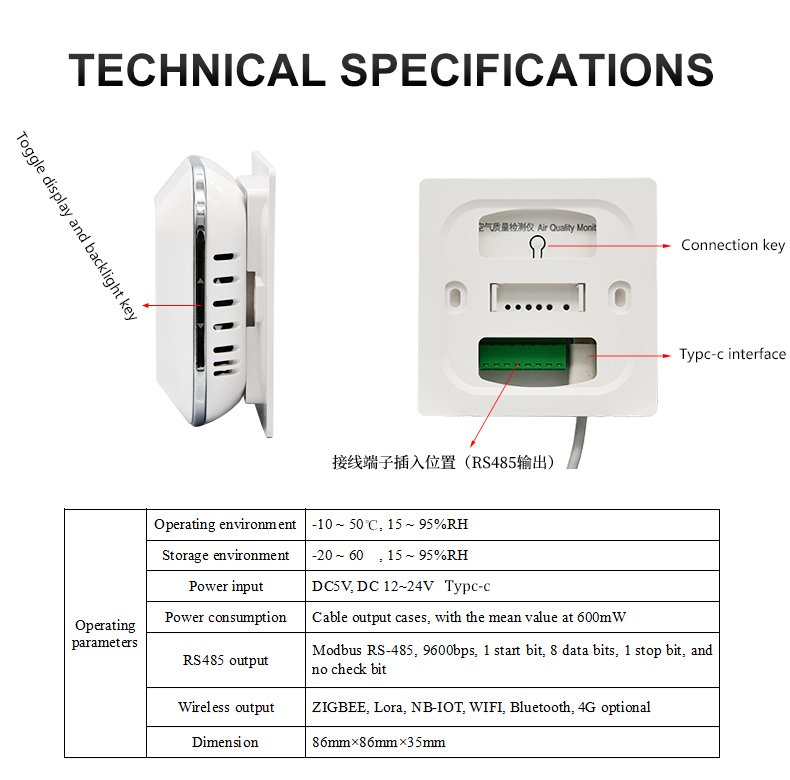

working environment: -10 ~ 50℃,15 ~ 95%RH
power input: DC5V,DC 12~24V,

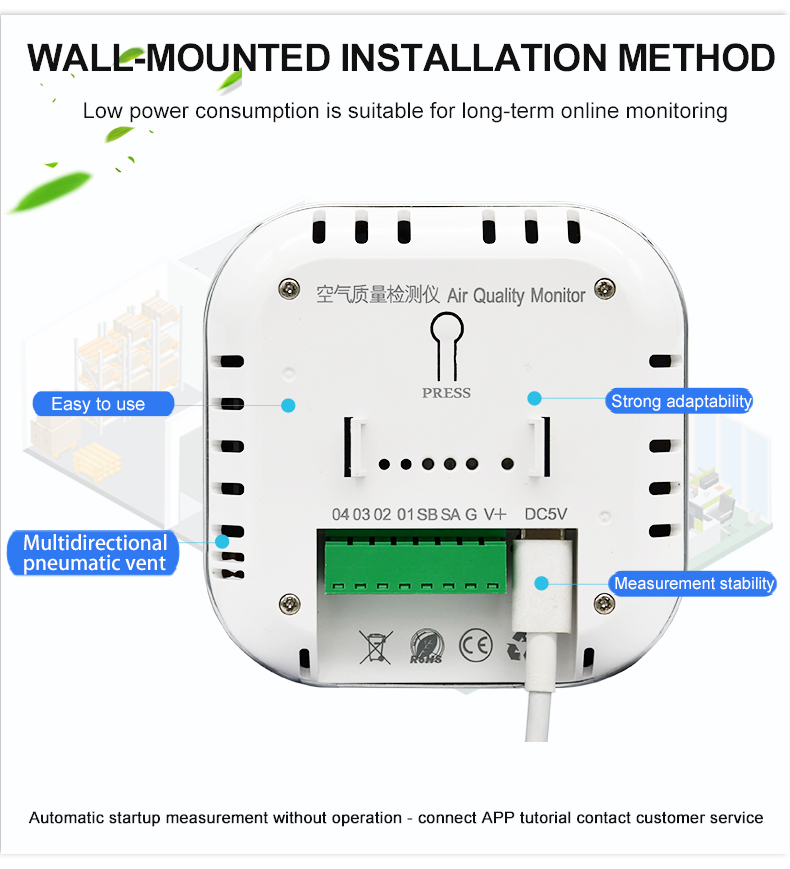

data output: Modbus RS-485,9600bps

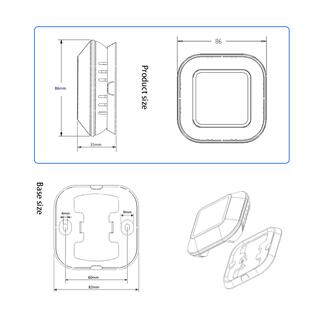

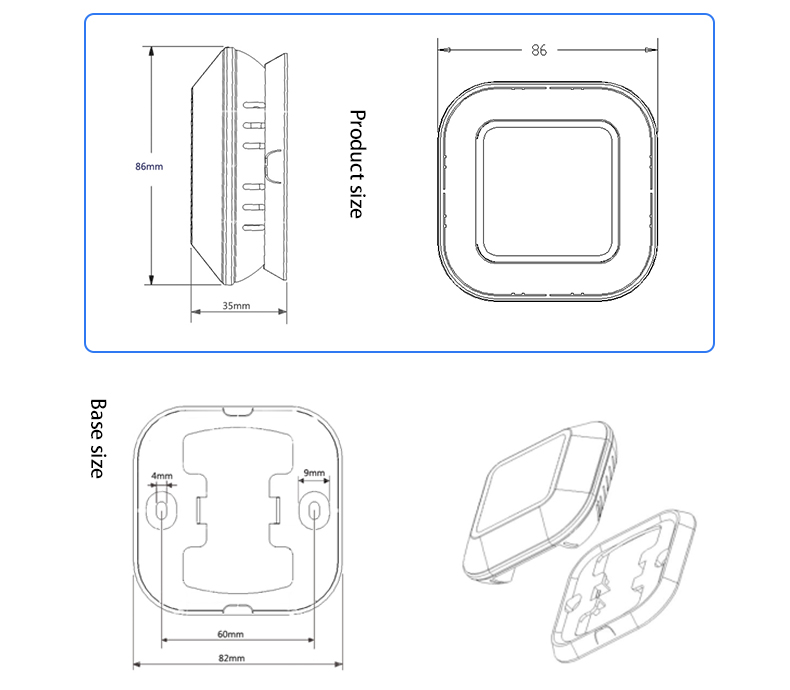

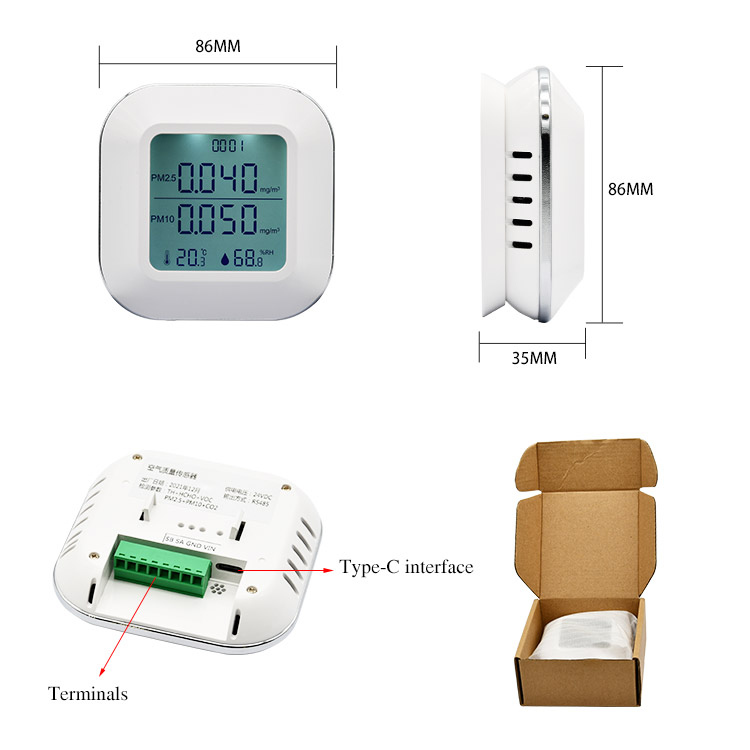

size: 86mmX86mmX35mm
CH20: 0~2 ppm

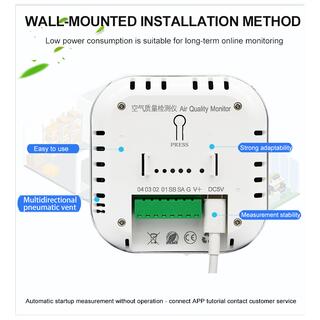

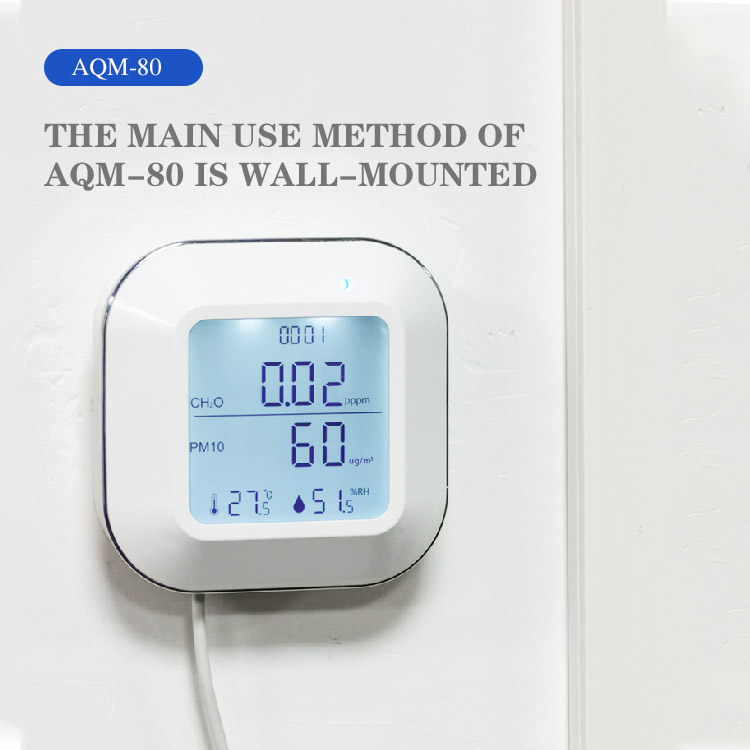

Type: Wall Mounted Indoor Air Quality Monitor
Place of Origin: Shenzhen
Model Number: AQM-80
storage environment: -20 ~ 60℃,15 ~ 95%RH
Power consumption: Wired output, the average is 600mW

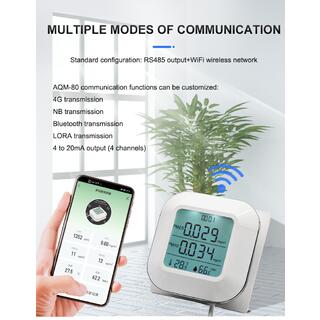

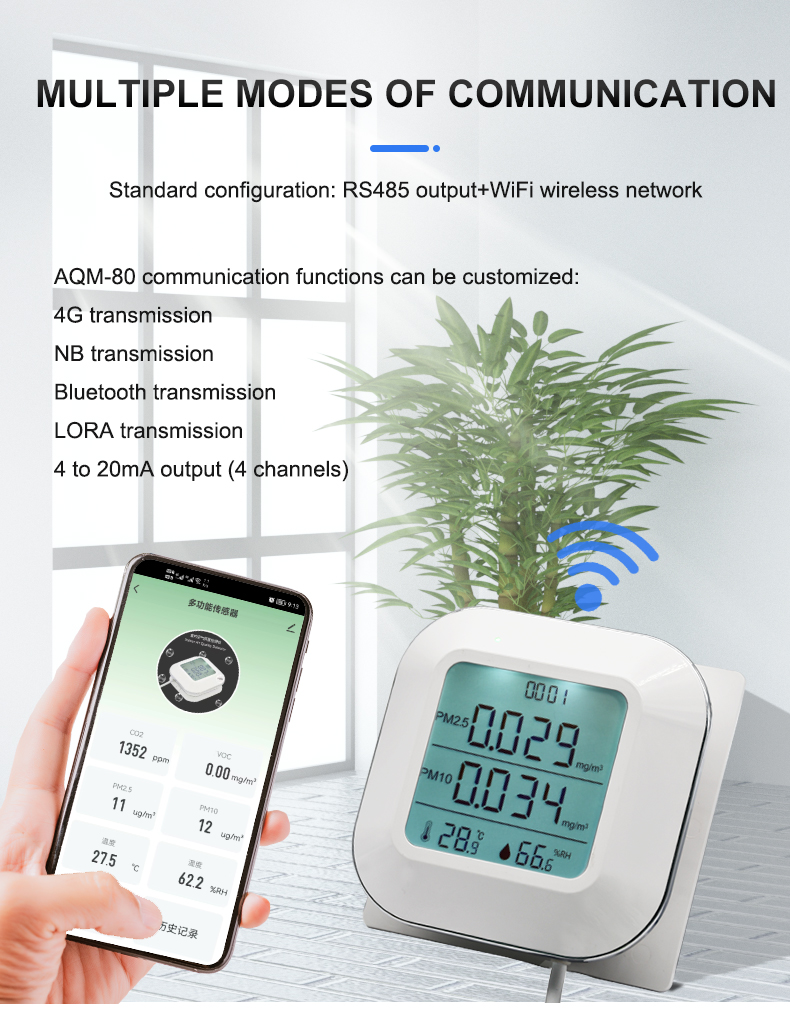

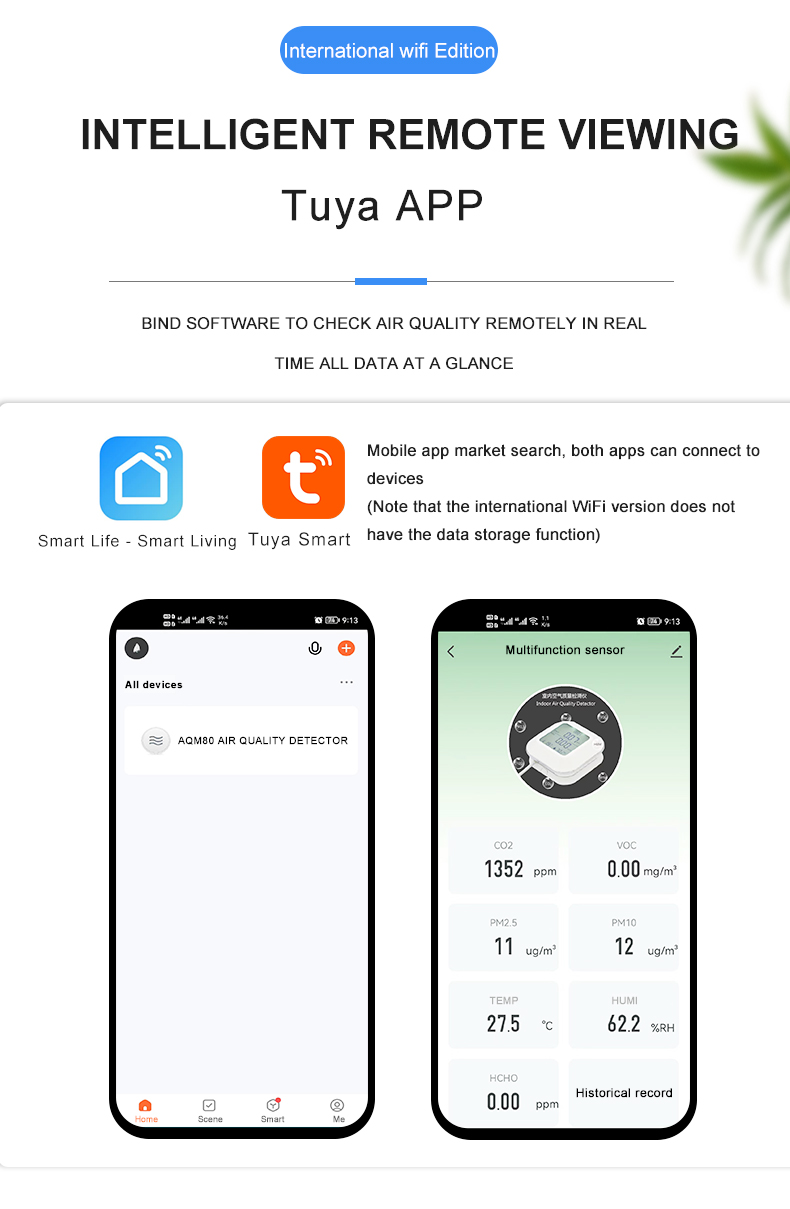

wireless output: ZIGBEE, Lora, NB-IOT, WIFI, Bluetooth, 4G optional
VOC: 0~5.00mg/m³
CO2: 400~4000 ppm

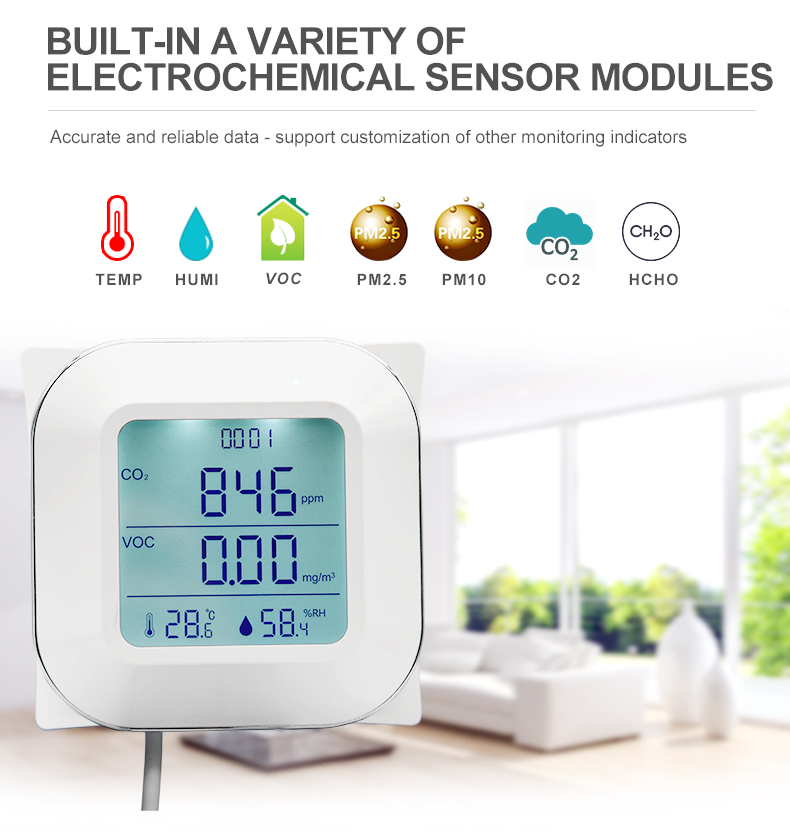

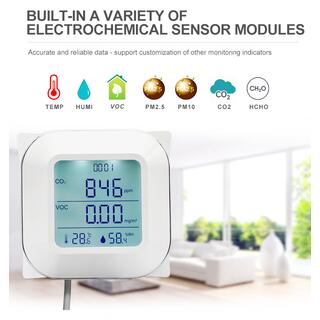

Default configuration: RS485 output + temperature, humidity, pm2.5, pm10, voc, CH2O, co2

AQM80 series multi-parameter atmospheric environment online detector is an online miniature air environment comprehensive index monitor independently developed and produced by Shenzhen Kanafu Technology Co., Ltd. It can be used to detect PM2.5, PM10, carbon dioxide ( CO2), formaldehyde (CH2O), temperature, humidity, TVOC and other parameters are very powerful and basically cover various indicators reflecting air quality. The instrument adopts imported sensors and computing chips, with high precision, high resolution and good stability.

2. Instrument use
The detector is suitable for embedded supporting and system integration of air environment monitoring equipment; such as air environment monitor, residential garden environment monitoring system, fresh air control system, air quality detector, air purification efficiency detector, home environment detection, vehicle air environment detector etc., can also be extended to general online detectors.

3. Features of the instrument

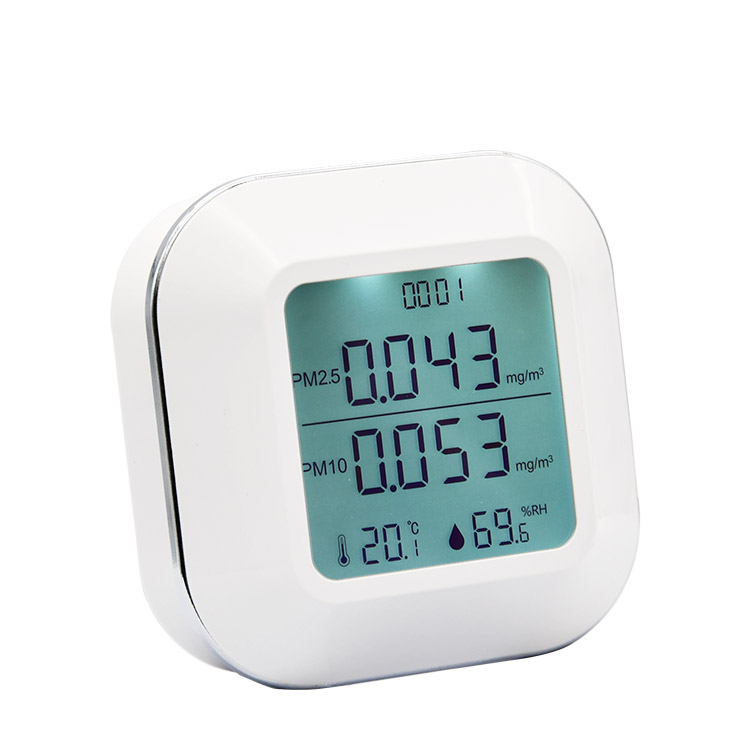

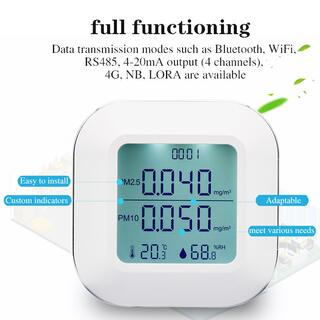

1.Large LCD display;
2.Wired output: RS485 industrial-grade signal output, long transmission distance, up to more than 1 km;

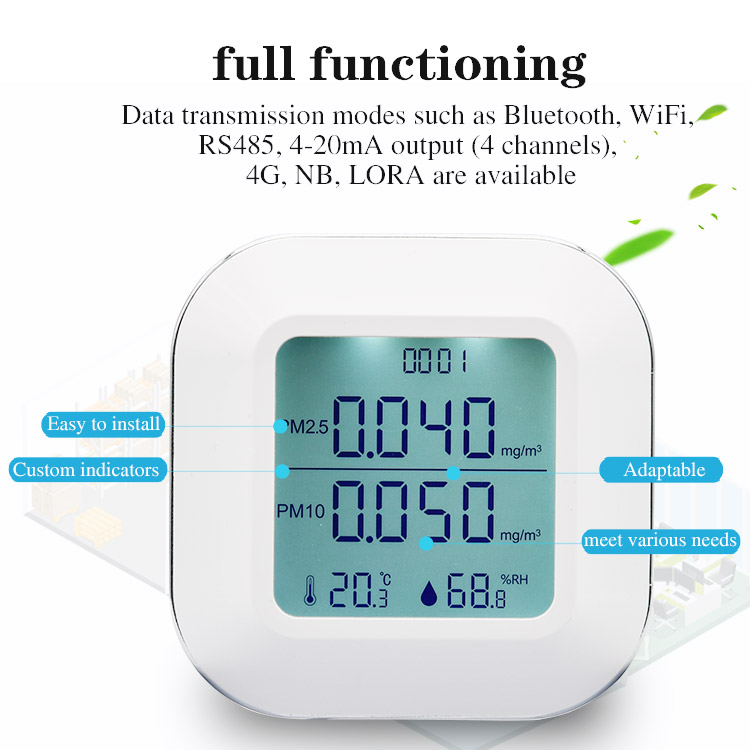

3.Wireless output: Lora, NB, 4G, WIFI, bluetooth, ZIGBEE, etc. (optional function)
4.The communication is stable and reliable, and the power supply is DC5V or DC12-24V;
5.Perfect anti-reverse, overvoltage, overcurrent and anti-interference protection capabilities;
6.Meticulous circuit software and hardware design, low failure rate and short stabilization time;
7.Original high-precision sensors and professional-grade signal processing chips to ensure the accuracy of sensor data;
8.Multi-directional aerodynamic ventilation through holes, the air flow is fully uniform, no need to consider the installation direction;
9.The measurable environmental parameters cover a wide range and can meet the needs of various testing environments;
10.The measurement parameters can be customized according to customer requirements, and the parameter combination is flexible and convenient;

instruction:
1.2.Standard product formaldehyde detection method defaults to electrochemical detection method, TVOC detection method defaults to semiconductor detection method, and customized type can choose other detection principles.

Our Services
* Standardized workshop and calibration process
* Professional quality inspection of 4-12 employees
* Fast delivery, free technical assistance
* Warranty 1 year

FAQ:

Q What price can I get?

We usually quote within 12 hours after receiving your inquiry. If you are very anxious to get the price, please let us know in your email so that we can contact and communicate in time.

How can I get samples to check the quality of your products?

After confirming the price, you can request samples to check the quality of our products. As long as you can afford the express freight, we will provide you with samples.

What is your business scope?

We mainly produce and sell air quality and water quality instruments, such as water quality sensors, water quality online monitoring equipment, air anion detectors, radiation detectors, gas detectors and some of our agents. Welcome to consult

What is your delivery time and warranty period?

Within 5-7 working days after payment is confirmed, customized products need to be discussed in detail, and the warranty period is one year

Specifications

Brand
KAINAFU
Model
AQM-80
Country of origin
China
