Classeq P500A12 Dishwasher

Available from Barcare Supreme Ltd.United Kingdom


3 phase 13 amp
Water Board (WRAS) Compliant

Three wash programs
Intuitive LCD digital display
Simple Two Touch Control Panel Operation
Drain Pump
Rinse booster pump
Continuous Hood Clean System
Colour coded display

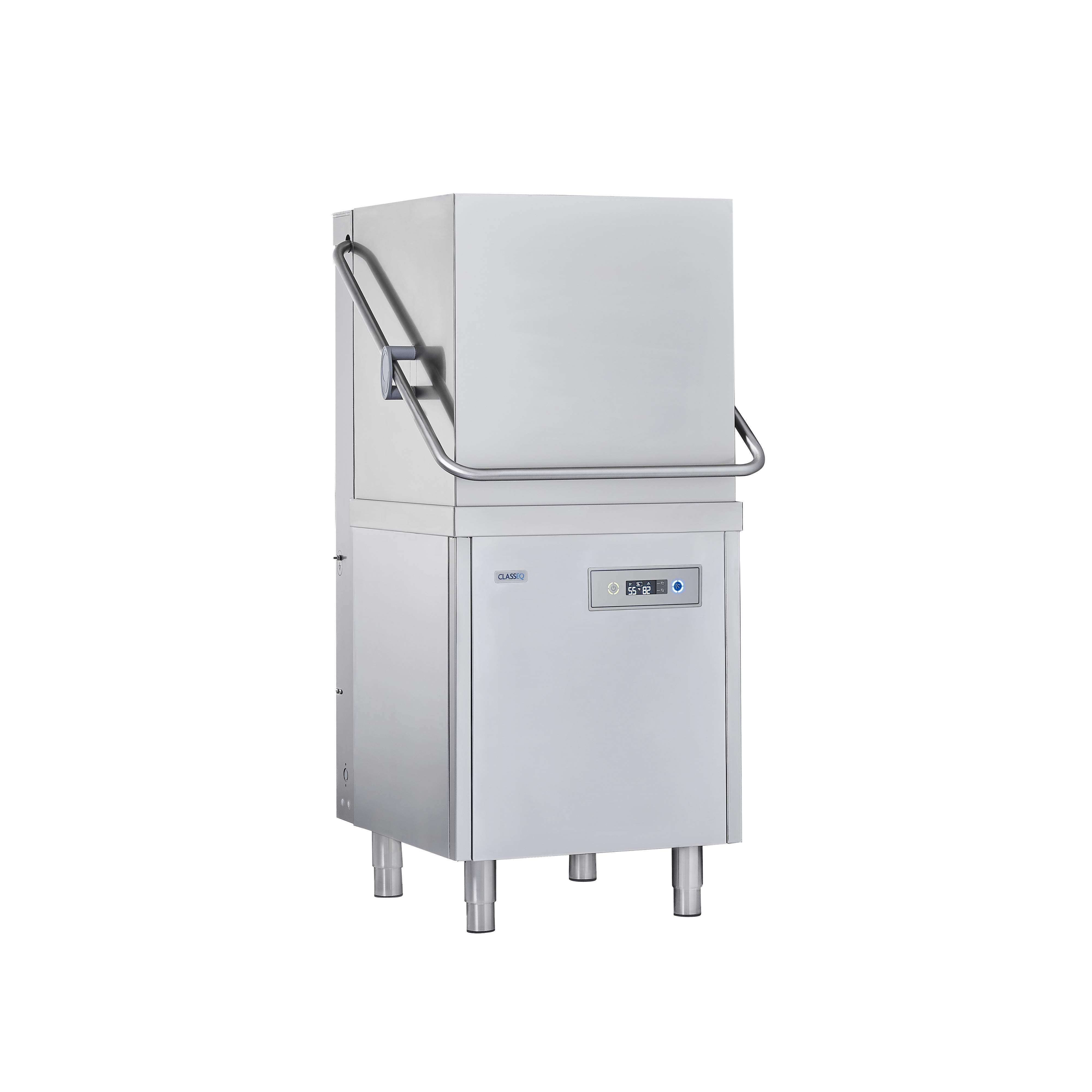

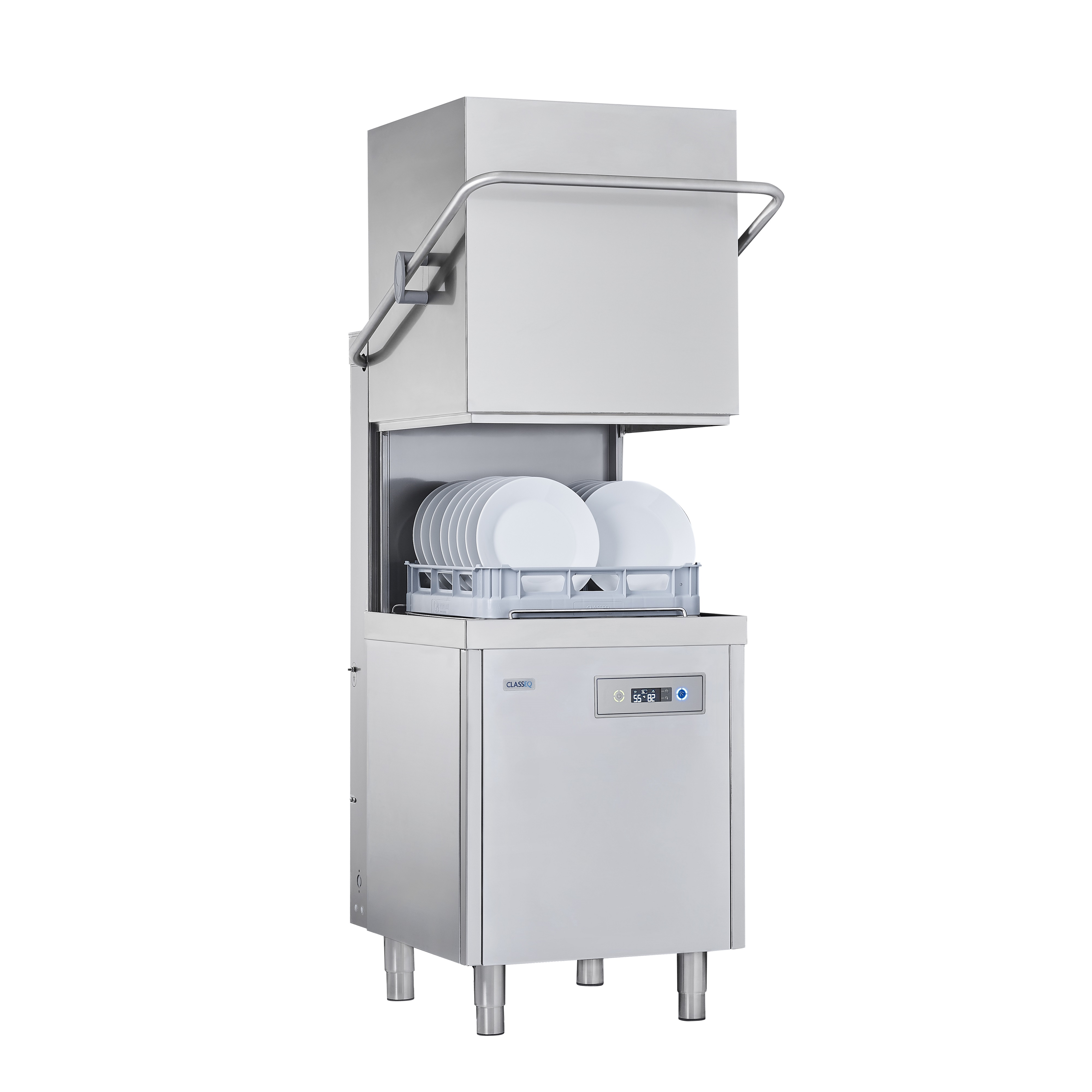

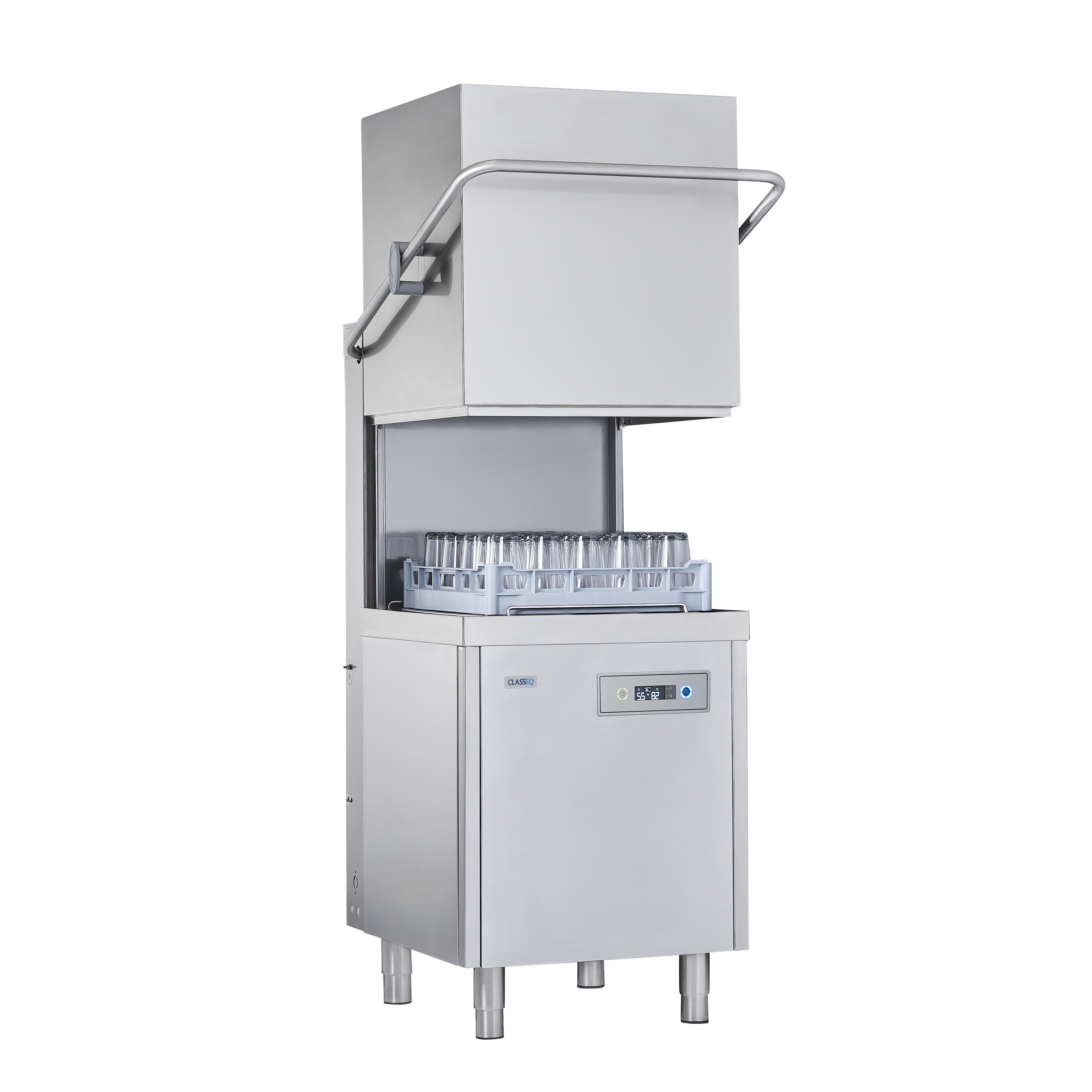

The Classeq P500A12 dishwasher is a powerful 3 phase (12amps/phase) hood type dishwasher. This WRAS Approved pass-through dish washer with a powerful 6kW boiler element for increased performance. Designed for busy professional kitchens suitable for straight-through or corner operation makes it an ideal choice for pubs, restaurants, schools, care homes and hospitals.

Classeq dish washers are manufactured in Staffordshire to a very high standard and with reduced water consumption via a 28 litre wash tank ensures minimised running costs, easy cleaning due to the continuous hood clean and removable front and side panels allows excellent service access.

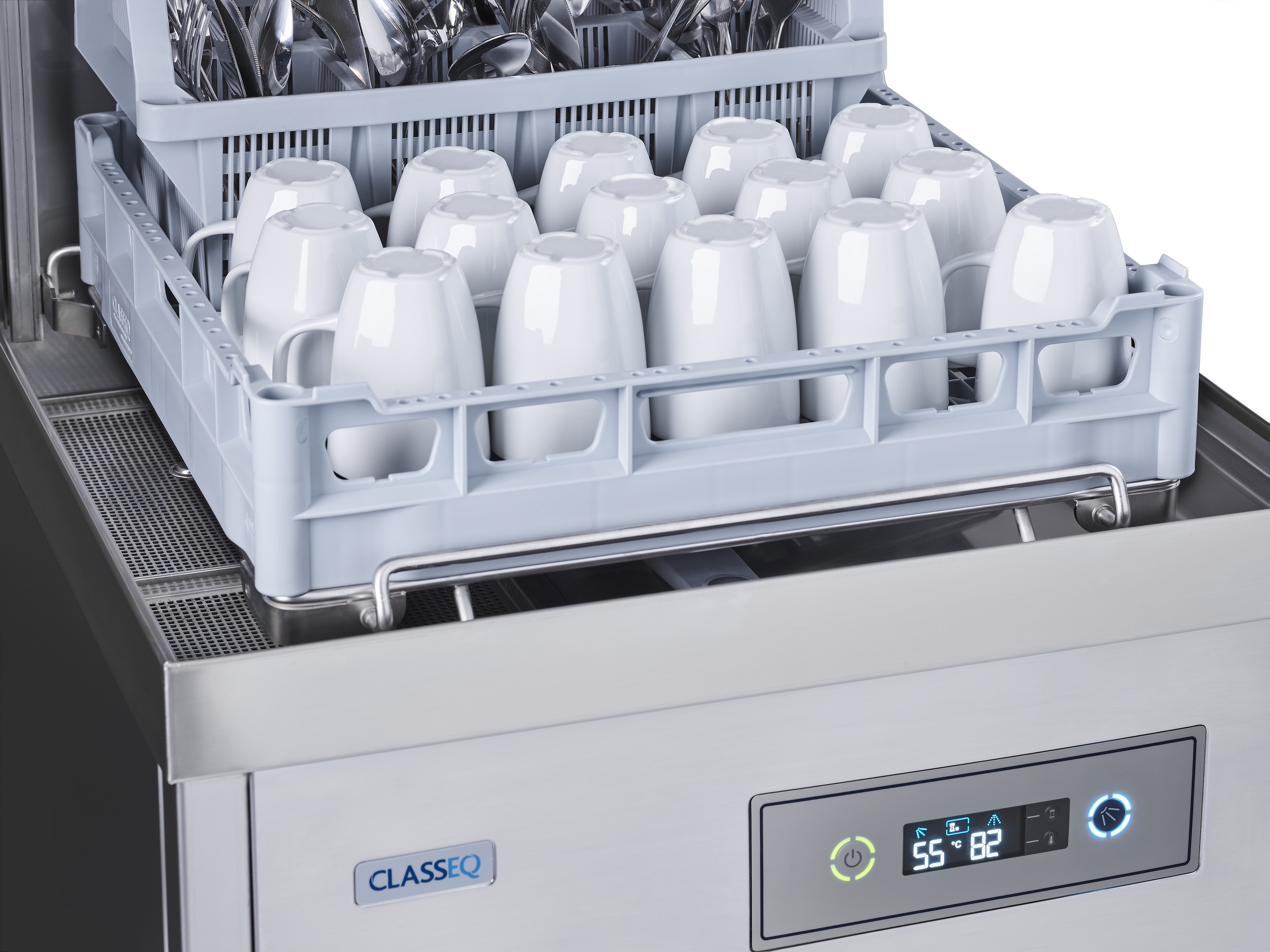

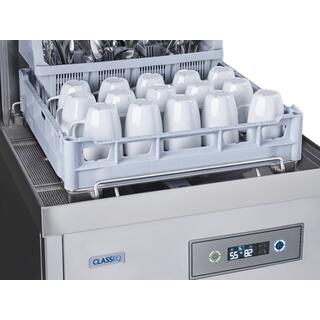

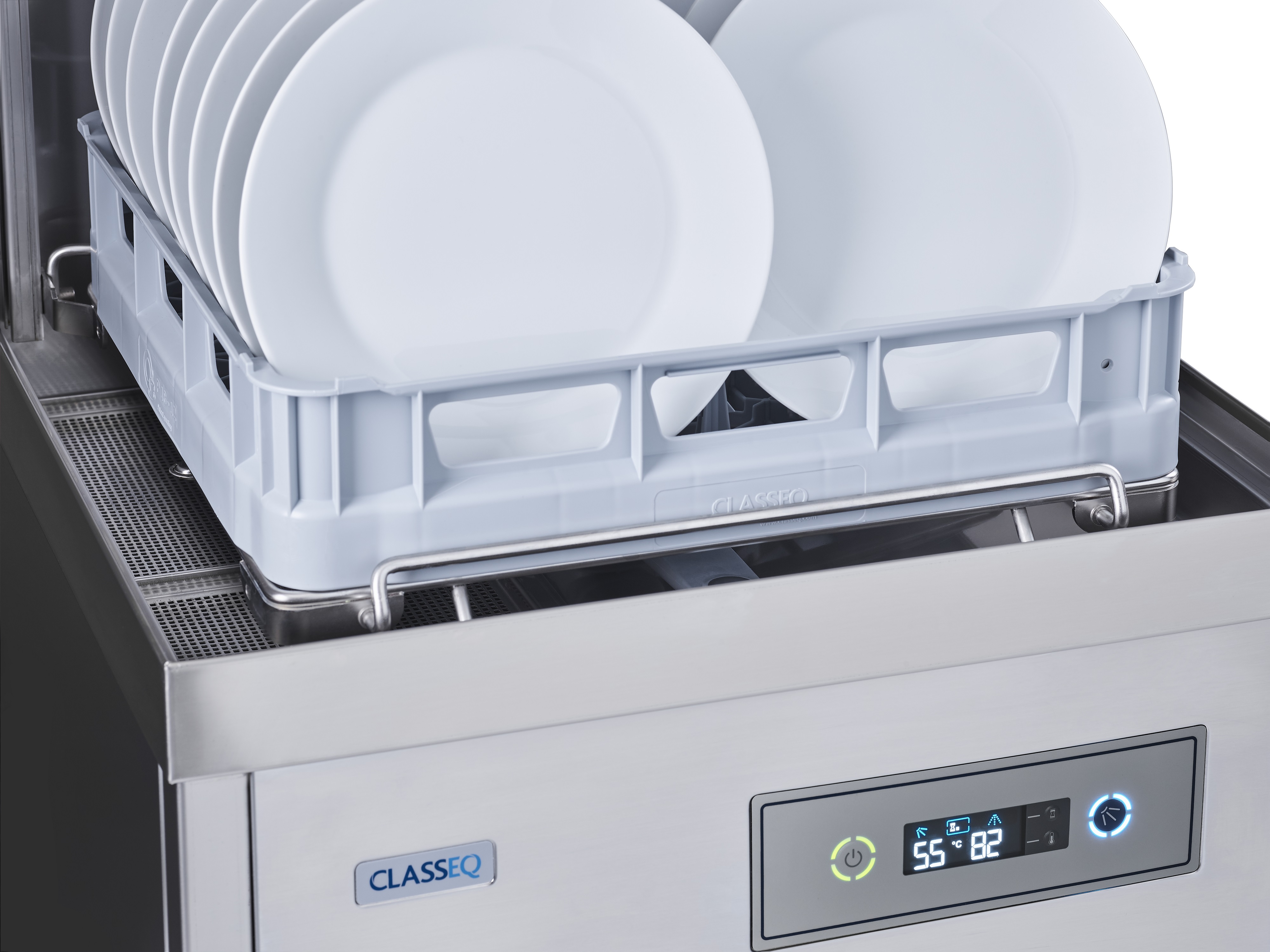

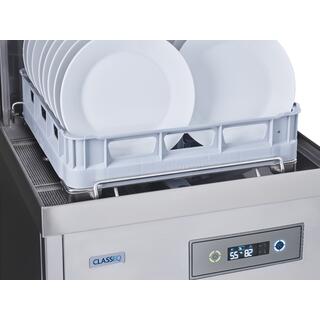

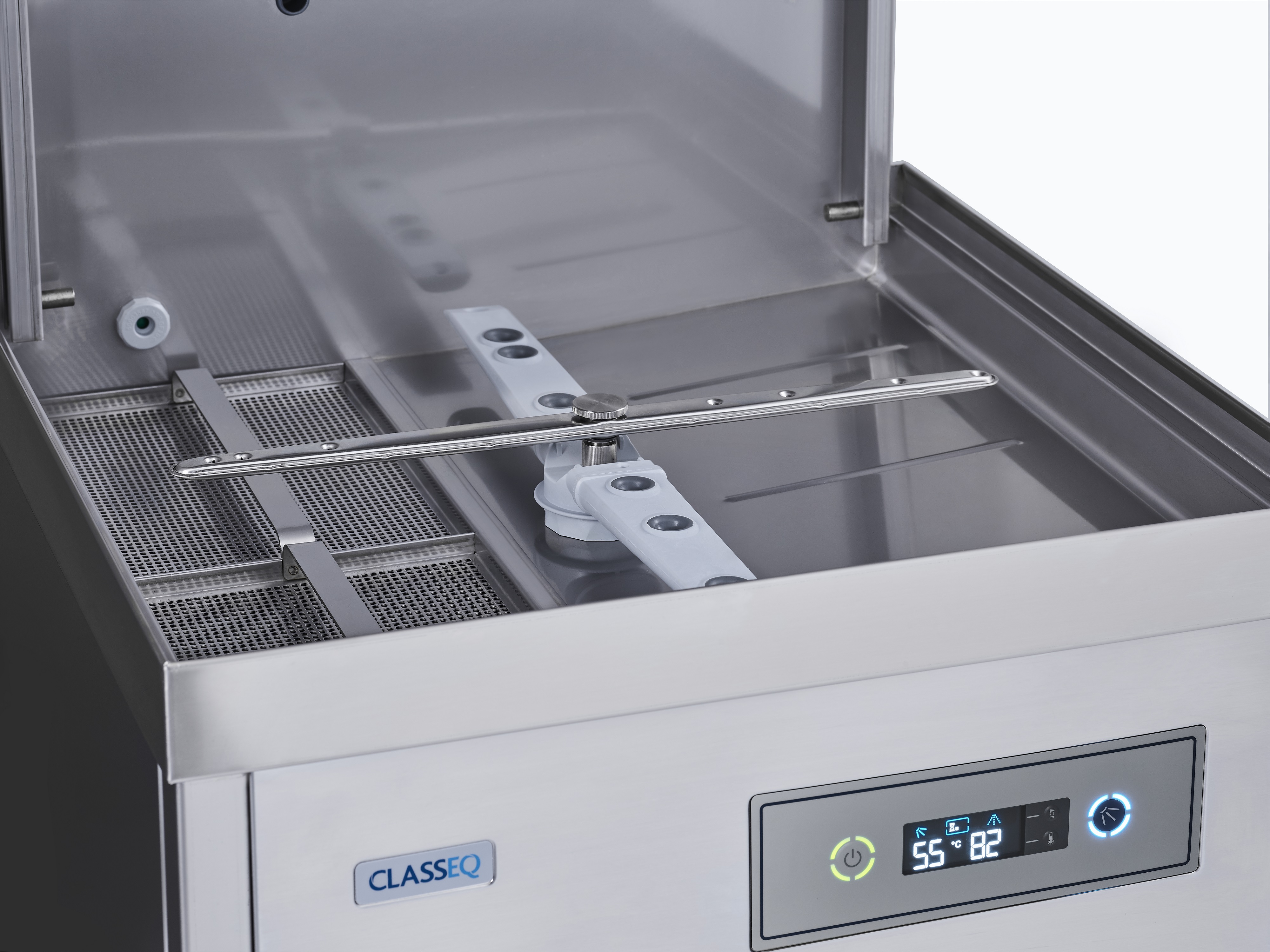

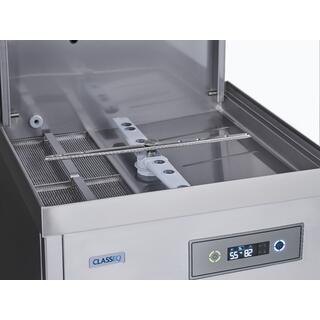

This impressive UK built machine has a digital control panel clearly displaying running temperatures in both the rinse tank and the wash tank. The user has the option of a 1.5, 3 or 5 minute wash cycle to combat different levels of soiling and with a simple two button, user-friendly switch arrangement, makes operating this appliance extremely easy for staff. Clever software constantly monitors water usage, temperature and number of wash cycles giving valuable information to improve operational efficiencies. Colour coded display for easy wash cycle management.

Featuring an integral rinse pump which boosts the rinse pressure keeping the rinse cycle and rinse temperature constant ensures excellent rinse performance and hygienic sanitation of crockery.

Via the control panel you have the option of switching on temperature interlocks which guarantees specific temperatures are reached during washing, giving absolute peace of mind that your customers are protected from germs & viruses.

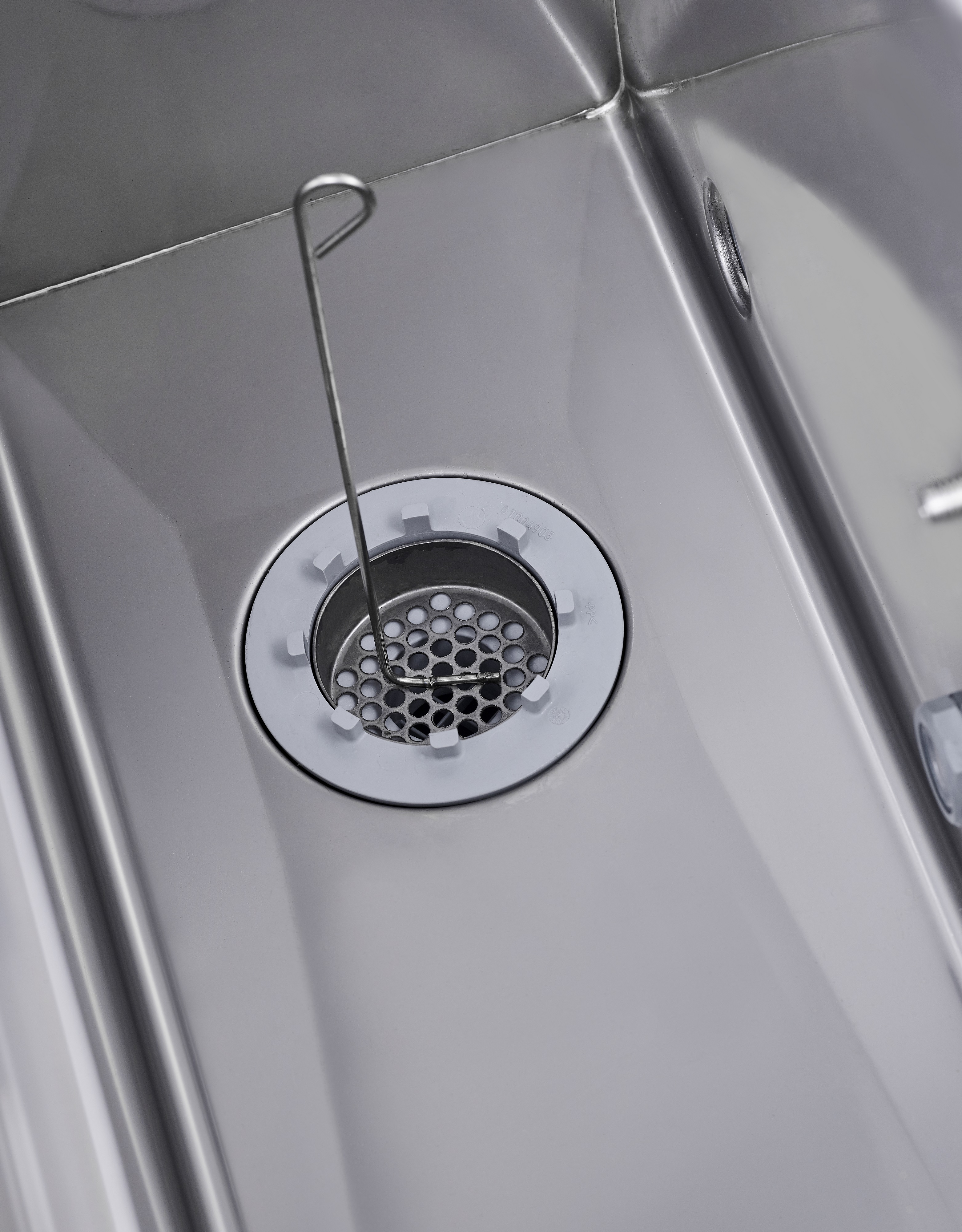

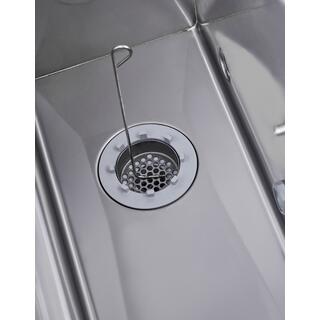

The P500A12 is pump drained therefore no need to pull out a drain plug at the end of the day, just switch off and press the button, the machine will automatically drain down. The built-in drain pump also significantly reduces problems at install if your sites waste is too high for a gravity drain appliance.

If you’re looking for a hard working commercial pass-through dishwasher then the Classeq P500A12 dishwasher is a great option to consider.


Weight: 130 kg
Dimensions (HWD): 1460 × 635 × 712 mm
Amps Required: 13A 3 Phase
Basket Size: 500 mm
Basket Supplied: 2 plus cutlery basket
Brand: Classeq
Clear Entry Height: 440 mm
Cycle Time: 1.5, 3 or 5 minutes
Decibels: <70 dB
Drain Size: 40mm
Finish: Stainless Steel
Min. supply water pressure: 2.0 bar
Operating Voltage: 380-415V/3N/50Hz
Power Source: Hard wired (3 phase)
Required Water Flow Rate: 11 Ltr / min
Rinse Tank Capacity: 7.5 Ltr
Rinse Tank Element: 6 kW
Rinse Water Consumption at 3 bar: 3 Litres / Cycle
Total Connected Load: 6680 Watts
Water supply connection: G3/4” (3/4” BSP)
Wash Tank Element: 4.05 kW
Wash Tank Capacity: 28 Litres
Wash Pump Power: 0.58 kW
Warranty: 2 years Parts & Labour
Height when hood open: 2010 mm
