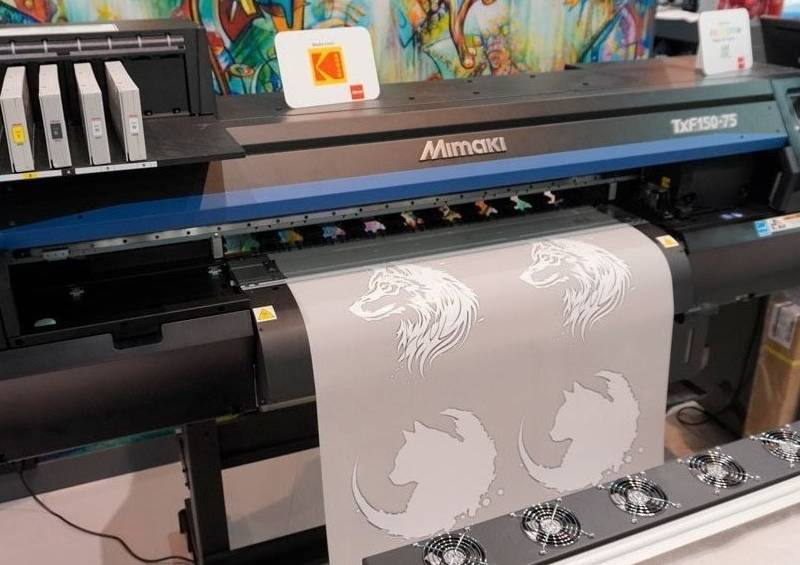

Mimaki TXF150-75 DTF printer

TxF150-75 is a reliable, high-quality printer incorporating Mimaki's technologies based on "safety and stability.” The DTF printer is designed to focus on stable quality, including functions to prevent "ink ejection failure" and "white ink clogging," which have been significant issues for DTF printers.
Equipped with the newest version of Mimaki Circulation Technology (MCTv2) that prevents white ink sedimentation by constantly circulating the ink
A degassed aluminum ink pack prevents nozzle clogging by reducing oxygen and other gases from mixing with the ink.
The nozzle check unit (NCU) & Nozzle Recovery System (NRS) check for clogged nozzles and automatically perform nozzle cleaning and replacement without interrupting printing.
Our Core Technologies
Mimaki Advanced Pass System

Variable Dot Technology

Mimaki Bulk Ink System

Waveform Control

Uninterrupted Ink Supply System

Mimaki Fine Diffusion

Nozzle Check Unit

Nozzle Recovery System

Mimaki Circulation Technology

Mimaki Advanced Pass System

Specifications
Printhead
On-demand piezo head

Print resolution
720dpi, 1,440dpi

Print speed (4 color)
up to 35.5 ft²/hr (3.3m²/hr)

Maximum Print Width
800mm (31.5″in)

Maximum media width
810mm (31.9 in)

Maximum Media Thickness
up to 0.04″ (1 mm)

Maximum Media Weight⁨⁣
Up to 99.2 pounds (45 kg)

Ink Type
Heat transfer pigment ink PHT50 (C,M,Y,K,W)

Interface
Ethernet 1000 BASE-T / USB2.0

Power Supply⁧⁢
Main unit: Single-phase AC100-120 / 200-240V±10%, 50/60Hz±1Hz x 1

Power Consumption
100V system: 1.44kW, 200V system: 1.92kW

Operational Environment
Temperature 20° – 30°C
Humidity: 35 – 65 % RH (Noncondensing)

Dimensions (W × D × H)
1,965mm×700mm×1,392mm
(77.4 x 27.6 x 54.8 in)

Weight
126kg (277.8 lb)

Certifications
VCCI class A, FCC class A, ETL IEC 62368-1, CE Marking (EMC, Low voltage, Machinery directive, and RoHS),CB, REACH,

Energy Star, RCM, KC

Inks
Thermal transfer pigment ink (PHT50) Cyan Magenta Yellow Black White
600ml PHT50-C-60 PHT50-M-60 PHT50-Y-60 PHT50-K-60
500ml PHT50-W-50

Brand

Mimaki

Model

TXF150-75

Country of origin

USA
