Simulated low air pressure temperature and humidity test chamber DO-160G standard

Description

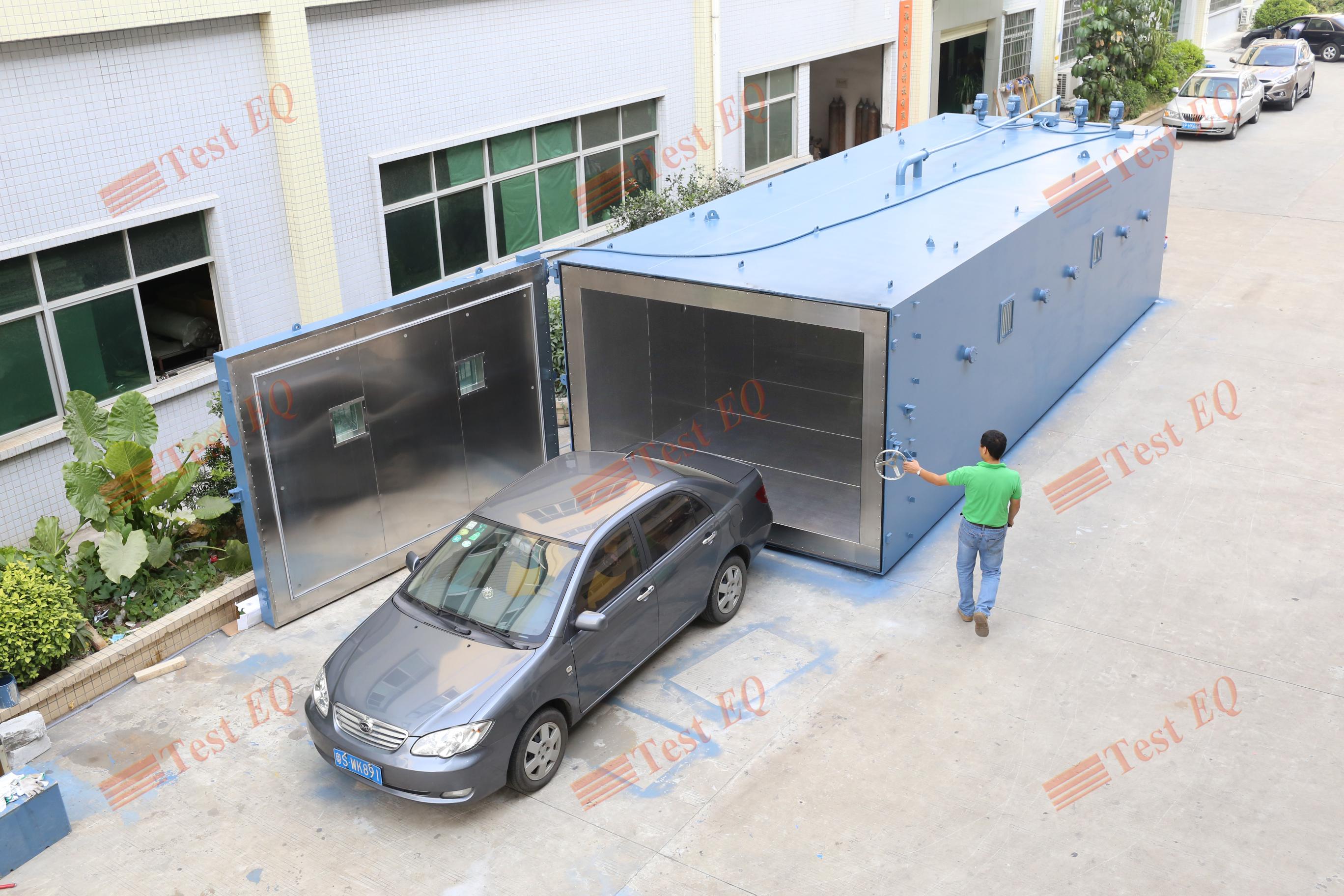

The altitude test chamber is used for conducting vehicle tests under high-altitude environmental conditions and for testing computers, electronic components and packaging that may need to be transported by air. Usually, it is necessary to compare multiple environmental conditions, and the altitude test chamber can integrate these environmental conditions and simulate the changes in gas pressure and temperature.
Equipment features:

The bipolar rotary vane vacuum pump is adopted, with a high ultimate vacuum degree, ensuring that the equipment can operate efficiently and stably throughout the entire working range.If you need more models about our test equipment, please reference our chamber-testing（.）com

High-strength and high-reliability structural design - ensures the high reliability of the equipment;

The material of the studio is SUS304 stainless steel - it has strong corrosion resistance, cold and heat fatigue resistance, and a long service life.

High-density polyurethane foam insulation material - ensuring that heat loss is minimized;

Surface powder coating treatment Ensure the long-lasting anti-corrosion function and appearance life of the equipment;

High-strength and high-temperature resistant silicone rubber sealing strips Ensured the high sealing performance of the equipment door;
Technical Specifications
Temperature Range: -70°C to +180°C

Altitude Simulation: Sea level to 43,000m (110-0.1 kPa)

Rapid decompression: Achieve 16,800m pressure differential (4,550m → 21,350m) within 15 seconds

Humidity Range: 10% to 98% RH

Chamber Capacity: 10 to 100 m³ (customizable)

Noise test：≤ 75dB

Patent Number: CN201520670413.0

Brand

TESTEQ

Model

EQ1020

Country of origin

China
