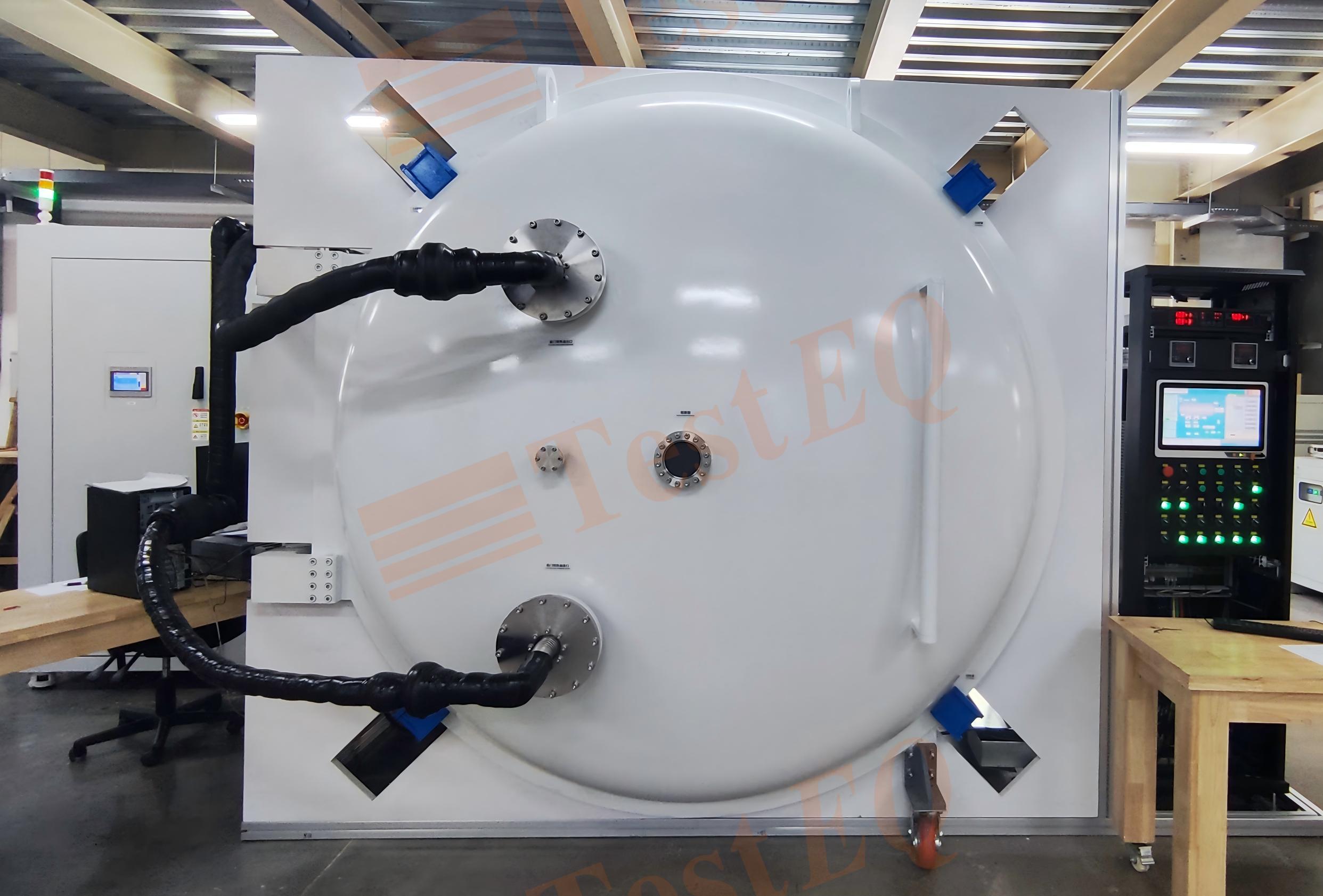

Simulate space conditions Thermal Vacuum Test Chamber MIL-STD-1540E

Description

Thermal vacuum test equipment is mainly used for the testing of aerospace products. It can simulate the vacuum environment and temperature changes in space to verify the performance and reliability of products under extreme conditions.

Vacuum system: The vacuum system of the thermal vacuum test equipment detects the pressure inside the working chamber through a pressure transmitter, and then compares the detected pressure signal with the set value of the control instrument after amplification, analog-to-digital conversion, and nonlinear compensation. This controls the opening and closing of the solenoid valve and the operation of the vacuum pump, keeping the pressure inside the working chamber within a certain range. The vacuum system also includes the main pump (mechanical pump) system, molecular pump, connecting pipes, valves, accessories, vacuum sensors and interlocking devices, etc.If you need more models about our test equipment, please reference our chamber-testing（.）com .

Technical Specifications
Capacity：0.5 m³ to 2.65 m³(Customizable)

High Vacuum Level (mbar)：5.0×10−7

No-load Vacuum Level (mbar)：5.0×10−7(Room temperature)

Vacuum Cube Leak Rate：1×10−9std/cc/sec

Pressure Regulation in

Multiple Ranges (mbar/Torr)：Adjustable

Temperature Range： -190°C(LN2 cooling) to 150°C

Temperature Uniformity：±2℃

Brand

TESTEQ

Model

EQ1030

Country of origin

China
