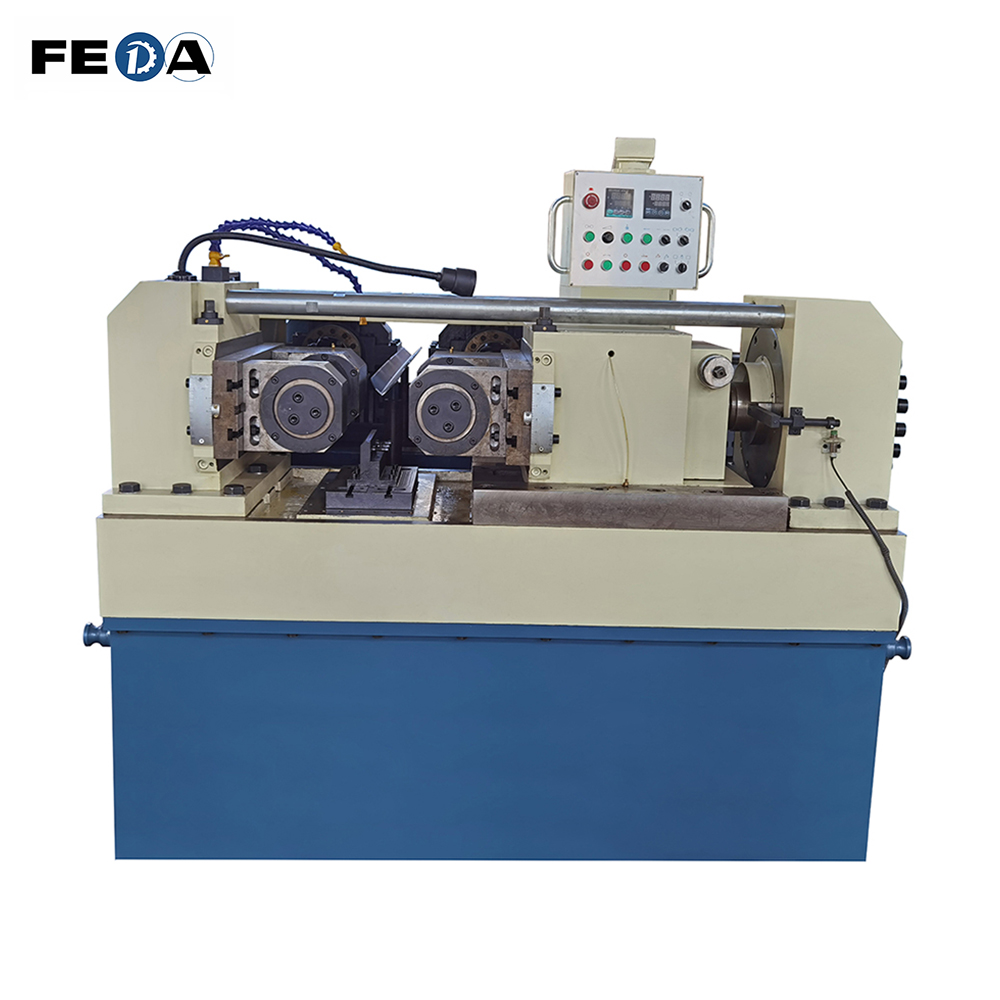

FEDA FD-80T Thread Rolling Machine

Located in China

Description

1. Automatic feeding with adjustable brackets
2. Speed is adjustable for different products
3. 54mm hole diameter for SKD11/DC53 thread rolling dies
4. Max. Rolling pressure is about 800KN
5. It is easy to operate and maintain the machine
6. CE, ISO9001-2008
Specification
Working diameter 12-130mm
Thread pitch 1.0-15mm
Thread length In feed or Thru feed
Spindle speed 16/21/27rpm (variable speed)
Outside diameter of rolling die 220-300mm
Inside diameter of rolling die 100mm
Thickness of rolling die 250mm
Feed stroke 0-20mm
Mian motor 30KW
Hydraulic motor 5.5KW
Max rolling pressure 80T
Supply voltage 380V 3P 50Hz
Weight(reference) 7800(KG)
Package Dimension(L*W*H) 2550*2250*2000mm
Dimension(L*W*H) 2450*2150*1850mm
WeChat:szfeda08
Whatsapp:+(86)19166277530
QQ:3802687697

Brand
FEDA
Model
FD-80T
Country of origin
China
