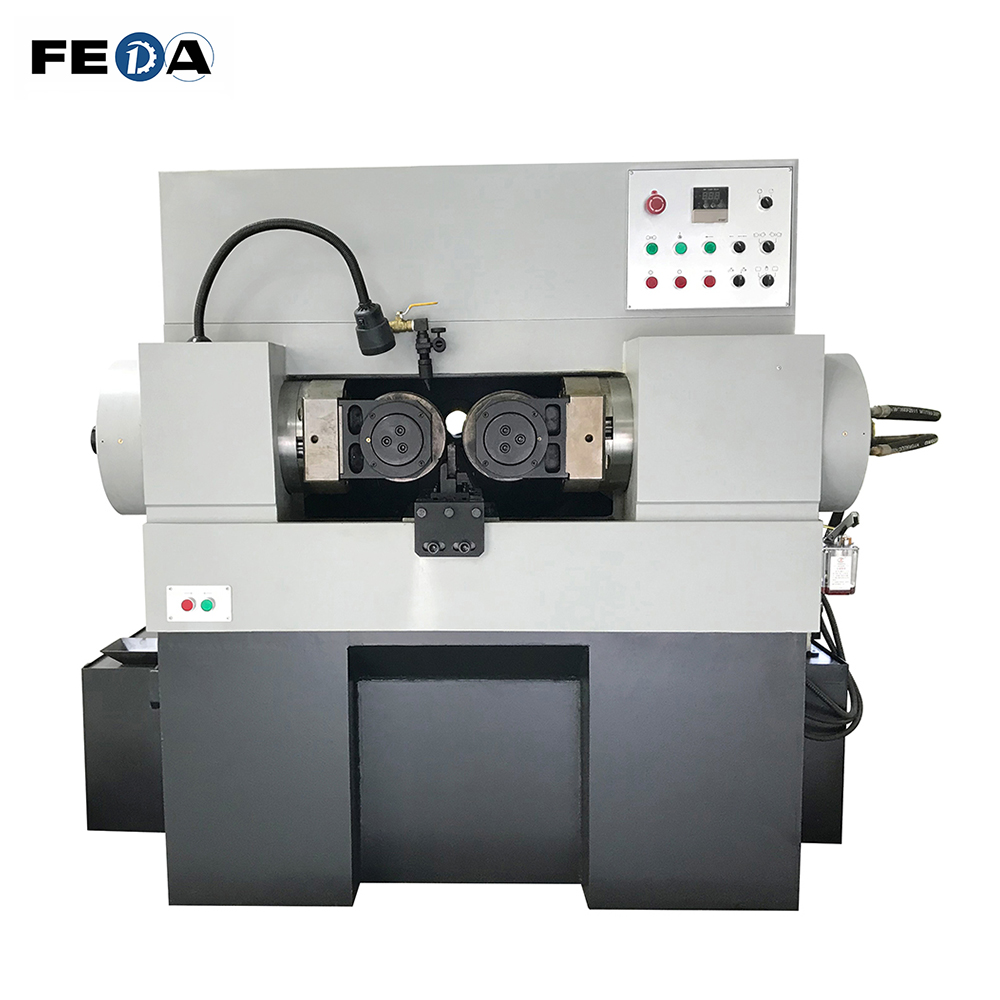

FEDA FD-35T Thread Making Machine

Description

1. Automatic feeding with adjustable brackets
2. Speed is adjustable for different products
3. 54mm hole diameter for SKD11/DC53 thread rolling dies
4. Max. Rolling pressure is about 350KN
5. It is easy to operate and maintain the machine
6. CE, ISO9001-2008
Specification
Working diameter 12-90mm
Thread pitch 1.0-8mm
Thread length In feed or Thru feed
Spindle speed 16/21/27/37/46/62rpm (variable speed)
Outside diameter of rolling die 170-220mm
Inside diameter of rolling die 75mm
Thickness of rolling die 180mm
Feed stroke 0-16mm
Main motor 15KW
Hydraulic motor 3 KW
Max rolling pressure 35T
Supply voltage 380V 3P 50Hz
Weight(reference) 4080(KG)
Package Dimension(L*W*H) 1660*1780*1710mm
Dimension(L*W*H) 1600*1680*1650mm

Brand

FEDA

Model

FD-35T

Country of origin

CHINA
