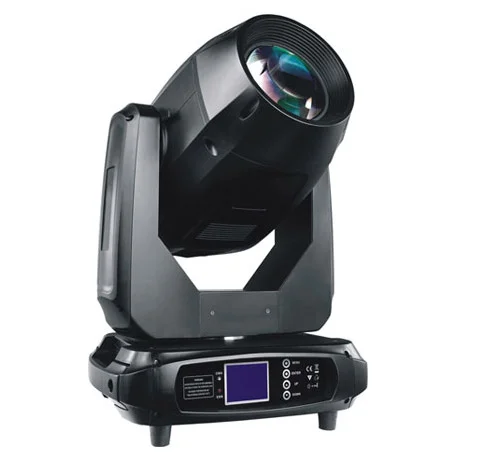

PHA027 380W BWS Moving Head Light

Available from Guangdong Phoenix Lighting Co., Ltd. in China

The PHA027 380W BWS Moving Head Light is a high-performance lighting fixture built around the reliable PHILIPS MSD Platinum 17R lamp. It offers comprehensive DMX control with 17/24 channel modes, managed via an intuitive LCD display and four-button interface. The fixture provides extensive creative control with a 13-color dichroic filter wheel, two independent gobo systems (one rotating with 7 interchangeable gobos and one static with 13 fixed gobos), a 5-effect gobo wheel, and two rotating prisms (8 and 16 facets) that can be superimposed.

Its motorized zoom offers a beam angle range from 3.8 to 53 degrees, complemented by a gradual frost for a wash angle of 7-65 degrees. Movement is precise and quiet with 540 degrees of pan and 270 degrees of tilt, both with 16-bit resolution and adjustable speed. Standard features include 0-100% dimming, a strobe effect from 0.5-14 flashes per second, motorized focus, and photoelectric location for automatic position correction. The unit includes over-temperature protection and operates on AC 100-240V 50/60Hz.

Key Specifications:
• Light Source: PHILIPS MSD Platinum 17R
• Power Consumption: 500W
• DMX Channels: 17/24
• Pan/Tilt: 540° / 270° (16-bit)
• Dimensions: 42.5 x 39 x 62.5 cm (LxWxH)
• Net Weight: 22 kg
• Gross Weight: 25 kg
