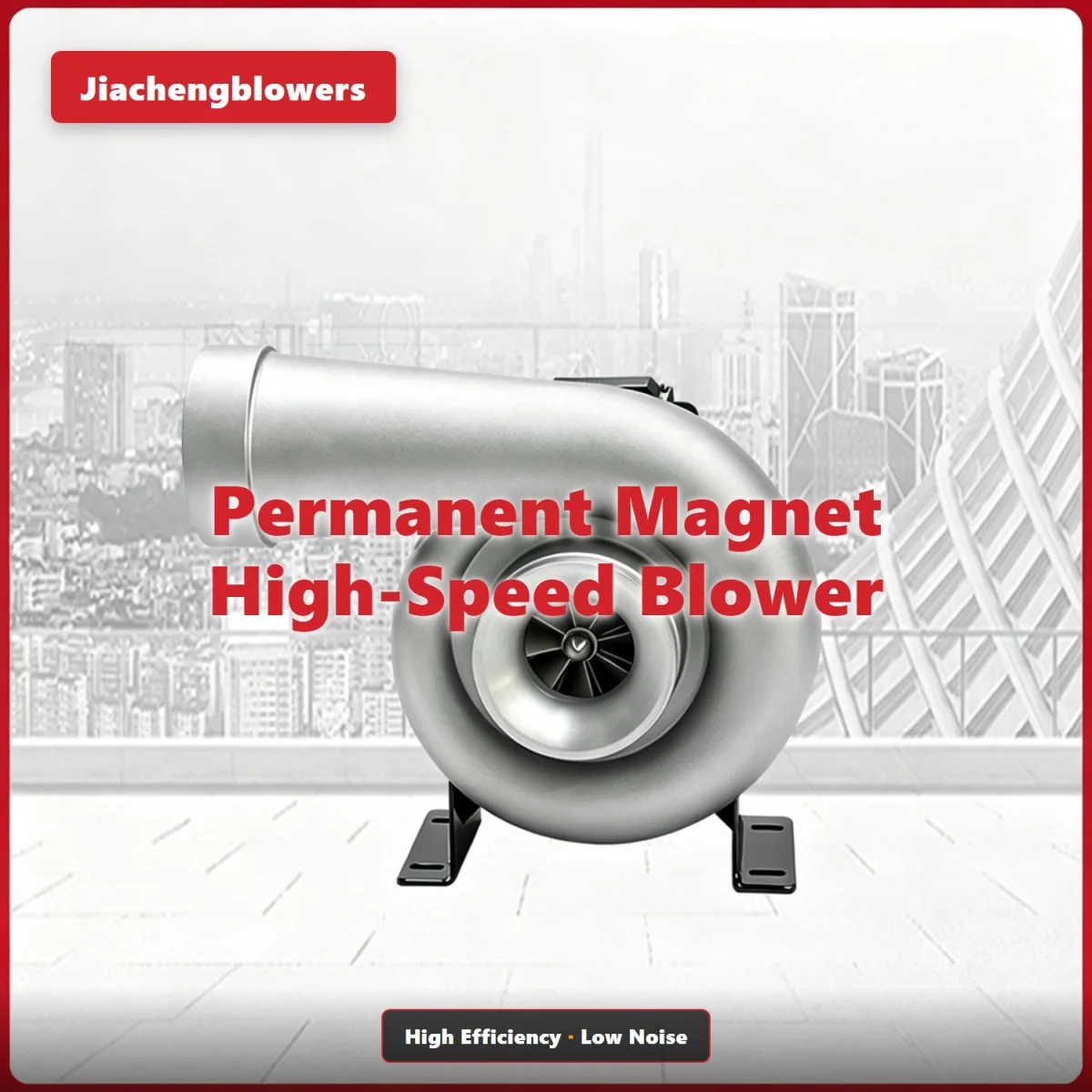

Energy-Saving Permanent magnet synchronous motors high speed Turbo Blower with 3D blower impeller
From Jiacheng Environmental Protection Technology Co., Ltd in China
Energy - Saving Permanent magnet synchronous motors high speed Turbo Blower with 3D blower impeller - Speed Centrifugal Blower | SMD/FD Series | 4–11 kW | 19,000–22,000 RPM | 11–15 kPa | 3D Flow Impeller | IP54 | CE Certified
The Jiachengblowers Permanent Magnet High - Speed Blower (SMD/FD Series) is a next - generation high - speed centrifugal blower engineered for maximum efficiency, durability and quiet operation. Powered by a rare - earth permanent magnet synchronous motor and a 3D - flow impeller, it delivers up to 22,000 RPM with 11–15 kPa pressure while saving up to 30% energy compared to traditional blowers.
Designed for demanding industrial environments, the blower features IP54 dust - and - splash protection, F - class insulation rated to 155°C, and a permanent magnet body that withstands up to 180°C for reliable long - term operation. The integrated variable frequency drive (VFD) enables stepless speed control from zero to rated speed, allowing precise matching of pressure and flow to your process needs. Its compact, space - saving construction simplifies installation in new or existing systems, making it a versatile, energy - saving air movement solution for a wide range of industries.
4. Specifications
4.1 Model & Parameter Table
Parameter
4 kW
5.5 kW
7.5 kW
11 kW
Model
SMD/YC - 4 - FD
SMD/YC - 5.5 - FD
SMD/YC - 7.5 - FD
SMD/YC - 11 - FD
Rated Power
4 kW
5.5 kW
7.5 kW
11 kW
Speed
19,000 rpm
21,000 rpm
19,000 rpm
22,000 rpm
Rated Discharge Pressure
11 kPa
15 kPa
11 kPa
15 kPa
Rated Inlet Flow
1,200 m3/h
1,200 m3/h
1,800 m3/h
1,800 m3/h
Frequency
633.3 Hz
700 Hz
633.3 Hz
733.3 Hz
Speed Range
0–633.3
0–700
0–633.3
0–733.3
Rated Current
8 A
11 A
12.1 A
17.6 A
4.2 General Specifications
Item
Specification
Equipment Type
High - Speed Centrifugal Blower
Rated Voltage
AC 380V
Standard Atmosphere
101 kPa
Working Temperature
20°C – 60°C
Impeller Structure
3D Flow
Noise Level
≤ 85 dB (bare machine)
Temperature Resistance
180°C
Motor Type
Rare - Earth Permanent Magnet 3 - Phase Synchronous
Overall Dimensions (L×W×H)
440 × 490 × 400 mm
Protection Rating
IP54 (dust & splash proof)
Insulation Class
F (155°C)
Matching VFD
Included
Permanent Magnet Synchronous Motor — Rare - earth permanent magnet three - phase synchronous motor delivers higher efficiency and superior power factor than traditional asynchronous motors, significantly reducing operating energy consumption and cutting energy costs by up to 30% .
3D Flow Impeller Design — Optimized airflow channels minimize vortex loss and maximize full - pressure efficiency for stable, high - performance output across the entire operating range.
Wide - Frequency Speed Regulation — Stepless speed control from zero to rated speed via the integrated VFD, precisely matching different air pressure and flow requirements for any application.
Ultra - Low Noise & Reliable Protection — Optimized impeller, volute silencing layer, vibration - damping base and sealed diversion keep noise at ≤85 dB (bare machine), with IP54 dust/splash protection and F - class insulation (155°C).
Compact & Versatile — Space - saving integrated design is easy to install or integrate into existing production lines, ideal for automotive, electronics, medical, printing, textile, food & beverage, aquaculture, hardware and plastics industries.
