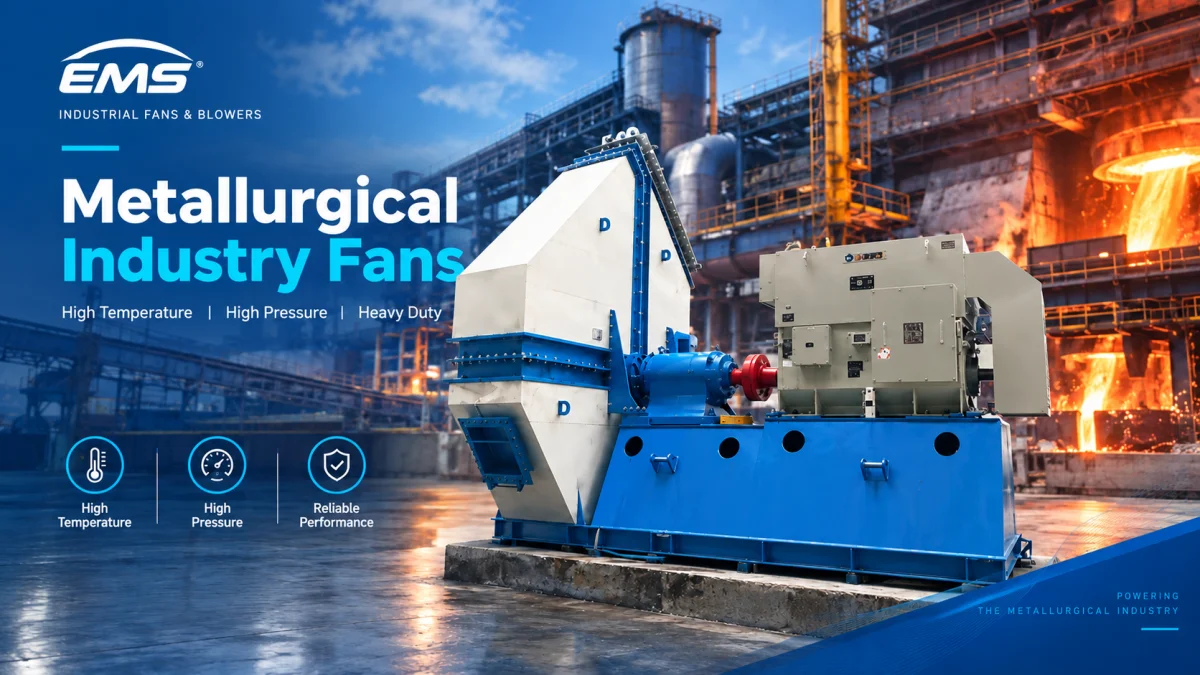

Metallurgical Industry Fans

Metallurgical Industry Fans
Product Overview
Metallurgical Industry Fans are engineered for demanding applications in iron and steel production, metal smelting, sintering, pelletizing, furnace operation, casting, dust collection, cooling, and flue gas handling.
EMS provides industrial centrifugal fans for metallurgical plants where high temperature, heavy dust loads, abrasive particles, high system resistance, and continuous operation require robust fan construction and reliable performance.
Fan design can be customized according to airflow, pressure, gas temperature, gas composition, dust concentration, installation conditions, and operating requirements.
Main Fan Types
Metallurgical Furnace Fans
Used for combustion air supply, furnace ventilation, exhaust, and process gas handling in metallurgical furnaces.
Metallurgical Furnace ID Fans
Designed to extract hot furnace gases and convey them to dust collection and flue gas treatment systems.
Metallurgical Forced Draft Fans
Supply combustion air to furnaces and other thermal processing equipment where stable and controlled airflow is required.
Metallurgical Dust Collection Fans
Used for extracting dust and fumes from steelmaking, smelting, sintering, material handling, and other metallurgical processes.
Steel Mill Exhaust Fans
Used for industrial exhaust, workshop ventilation, furnace area exhaust, and process gas extraction in steel plants.
Sinter Plant Fans
Used for sintering machine draft, process gas handling, exhaust, dust collection, and sinter gas treatment systems.
Pelletizing Plant Fans
Used for drying, induration, cooling, and process gas circulation in pelletizing plants.
Metallurgical Cooling Fans
Used for cooling equipment, metal-processing areas, high-temperature components, and industrial process zones.
Flue Gas Exhaust Fans
Used for conveying hot flue gases and process exhaust to dust collection and environmental treatment systems.
Heavy-Duty Metallurgical Fans
Designed for high-load and continuous-duty applications involving high temperature, heavy dust, abrasion, and demanding operating conditions.
Typical Applications
Iron & Steel Production
Steel Making
Iron Making
Metal Smelting
Sintering
Pelletizing
Blast Furnace Systems
Electric Arc Furnace Systems
Reheating Furnaces
Smelting Furnaces
Casting
Metal Processing
Dust Collection
Flue Gas Treatment
Typical Technical Parameters
Parameter Typical Range
Air Volume 2,000–500,000 m³/h
Total Pressure 1,000–20,000 Pa
Static Pressure 800–18,000 Pa
Operating Temperature -20°C to 500°C+
Motor Power 2.2–1,000 kW
Fan Speed 500–2,900 rpm
Fan Efficiency Up to 85%+
Impeller Diameter Approx. 400–3,000 mm
Drive Type Direct / Coupling / Belt
Material Carbon Steel / Stainless Steel / Wear-Resistant Steel
Installation Horizontal / Vertical / Customized
These are typical engineering ranges for reference. Final specifications depend on the actual airflow, pressure, gas temperature, gas composition, dust concentration, system resistance, and project requirements.
