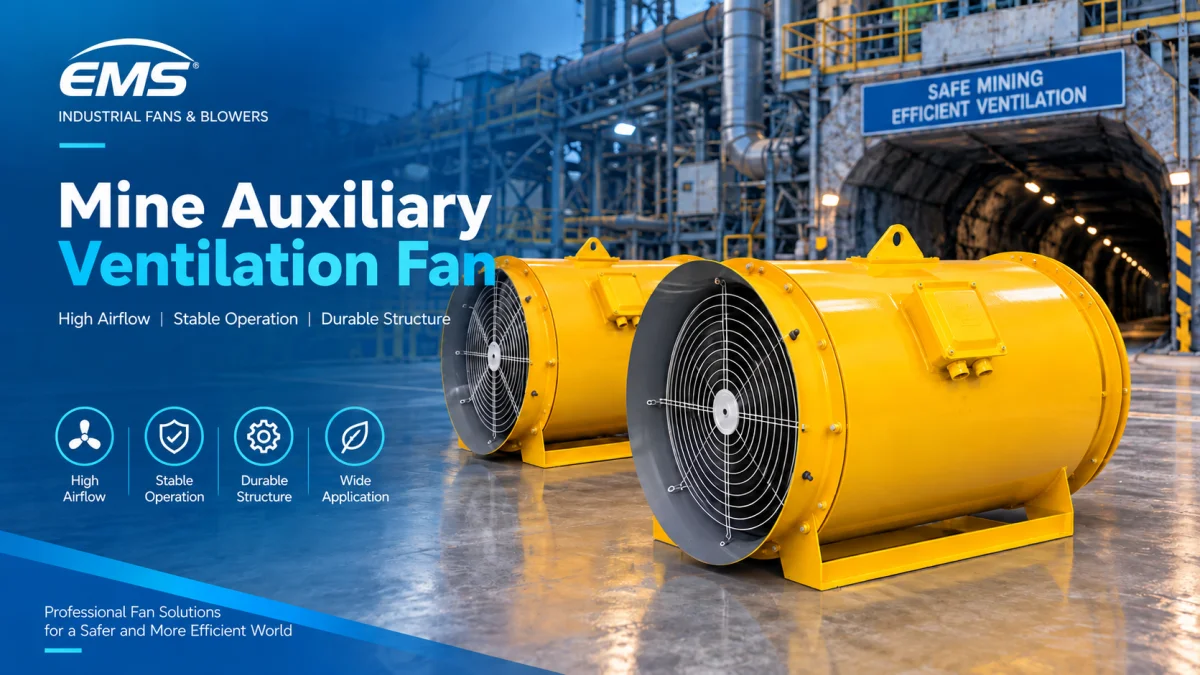

Mine Auxiliary Ventilation Fan

Mine Auxiliary Ventilation Fan
Product Overview
The Mine Auxiliary Ventilation Fan is designed for local and auxiliary ventilation in underground mines, including coal mines, metal mines and underground development projects.
The fan is typically installed near a mine heading or working area and connected to a flexible ventilation duct to deliver fresh air over long distances.
With an axial-flow configuration and compact construction, the JK / DJK series is suitable for mine heading ventilation, underground tunnel ventilation, local working-area ventilation and auxiliary mine ventilation systems.
Depending on the actual mining environment, the fan can be configured with industrial, mining-duty or flameproof electrical equipment.
Working Principle
The JK / DJK fan operates as an auxiliary forcing ventilation fan.
Typical ventilation arrangement:
Fresh Air → JK / DJK Fan → Flexible Ventilation Duct → Mine Heading / Working Face
The fan pressurizes fresh air and delivers it through the ventilation duct to the underground working area.
For long-distance ventilation, fan selection should consider airflow, pressure loss, duct diameter, duct length and duct leakage.
Main Applications
The JK / DJK Series is suitable for:
Underground Mine Heading Ventilation
Mine Development Tunnels
Coal Mine Roadways
Metal Mine Tunnels
Mine Heading Faces
Underground Working Areas
Local Mine Ventilation Stations
Long-Distance Duct Ventilation
Underground Construction Tunnels
Mine Auxiliary Ventilation Systems
Temporary Underground Ventilation
Tunnel Excavation Areas
Typical Technical Parameters
Parameter Typical Range / Configuration
Product Type Mine Auxiliary Ventilation Fan
Series JK / DJK
Fan Type Axial Flow
Airflow 100–2,000 m³/min
Pressure 500–6,000 Pa
Fan Diameter 300–1,200 mm
Motor Power 2.2–110 kW
Speed 1,450–2,900 rpm
Drive Direct Drive
Motor Industrial / Mining / Flameproof Configuration
Impeller Axial Flow
Casing Carbon Steel / Customized
Blade Material Steel / Aluminum Alloy / Customized
Airflow Mode Forcing / Local Ventilation
Installation Horizontal / Customized
Duty Continuous Operation
Duct Connection Flexible Ventilation Duct
Application Underground Mines / Tunnels
The above values are typical engineering reference ranges. Final airflow, pressure and equipment configuration should be selected according to the actual mine ventilation system, duct diameter, duct length and operating conditions.
