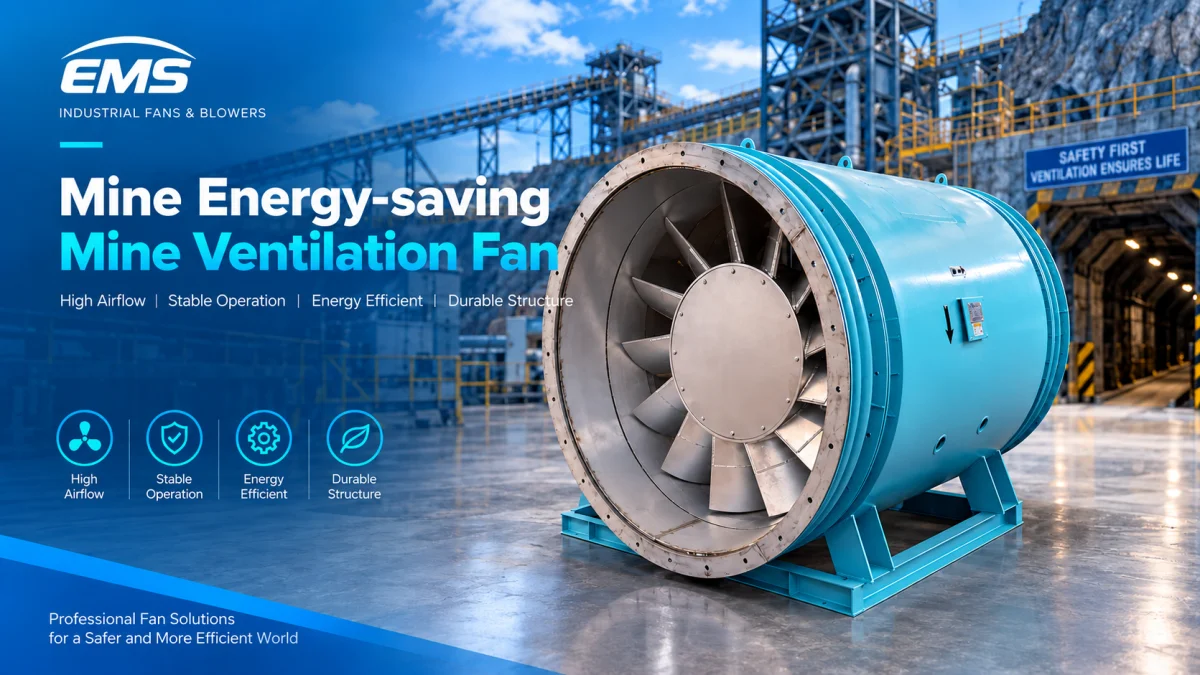

Mine Energy-saving Mine Ventilation Fan

Mine Energy-saving Mine Ventilation Fan
Product Overview
The Mine Energy-saving Mine Ventilation Fan is designed for ventilation systems in coal mines, metal mines, non-coal mines and underground engineering projects.
The fan combines an optimized axial-flow design with suitable motor configuration to provide the required airflow and pressure while reducing unnecessary energy consumption during long-term operation.
K / DK fans can be used for main ventilation, auxiliary ventilation, forced ventilation and exhaust ventilation according to the actual mine ventilation system.
Working Principle
The K / DK Series operates on the axial-flow ventilation principle.
When the impeller rotates, air moves axially through the fan and receives the required pressure and airflow energy.
Typical system:
Fresh Air / Mine Airway → K / DK Fan → Ventilation Duct or Mine Airway → Working Area / Return Airway
For energy-efficient operation, the fan duty point should be properly matched with the mine ventilation network.
Key design considerations include:
Optimized impeller aerodynamics
Reduced internal flow losses
Proper motor sizing
Appropriate operating point
Reduced system resistance
Improved overall operating efficiency
Main Applications
The K / DK Series is suitable for:
Coal Mine Ventilation
Metal Mine Ventilation
Non-Coal Mine Ventilation
Underground Mine Ventilation
Mine Main Ventilation
Mine Auxiliary Ventilation
Local Mine Ventilation
Mine Exhaust Ventilation
Mine Forced Ventilation
Development Tunnels
Underground Working Areas
Mining Ventilation Stations
Typical Technical Parameters
Parameter Typical Range / Configuration
Product Type Energy-Saving Mine Ventilation Fan
Series K / DK
Fan Type Axial Flow
Airflow 5,000–200,000 m³/h
Air Pressure 300–5,000 Pa
Fan Diameter 400–2,500 mm
Motor Power 5.5–315 kW
Speed 500–1,500 rpm
Drive Direct Drive
Impeller High-Efficiency Axial Impeller
Motor High-Efficiency Industrial / Mining Motor
Casing Carbon Steel / Customized
Blade Material Steel / Aluminum Alloy / Customized
Ventilation Mode Forced / Exhaust
Installation Horizontal / Customized
Duty Continuous Operation
Frequency 50 / 60 Hz
Application Coal / Metal / Non-Coal Mines
The above values are typical engineering reference ranges and are not fixed specifications for every K / DK model. Final airflow, pressure, motor power, speed and efficiency should be determined according to the actual fan model and mine ventilation system.
