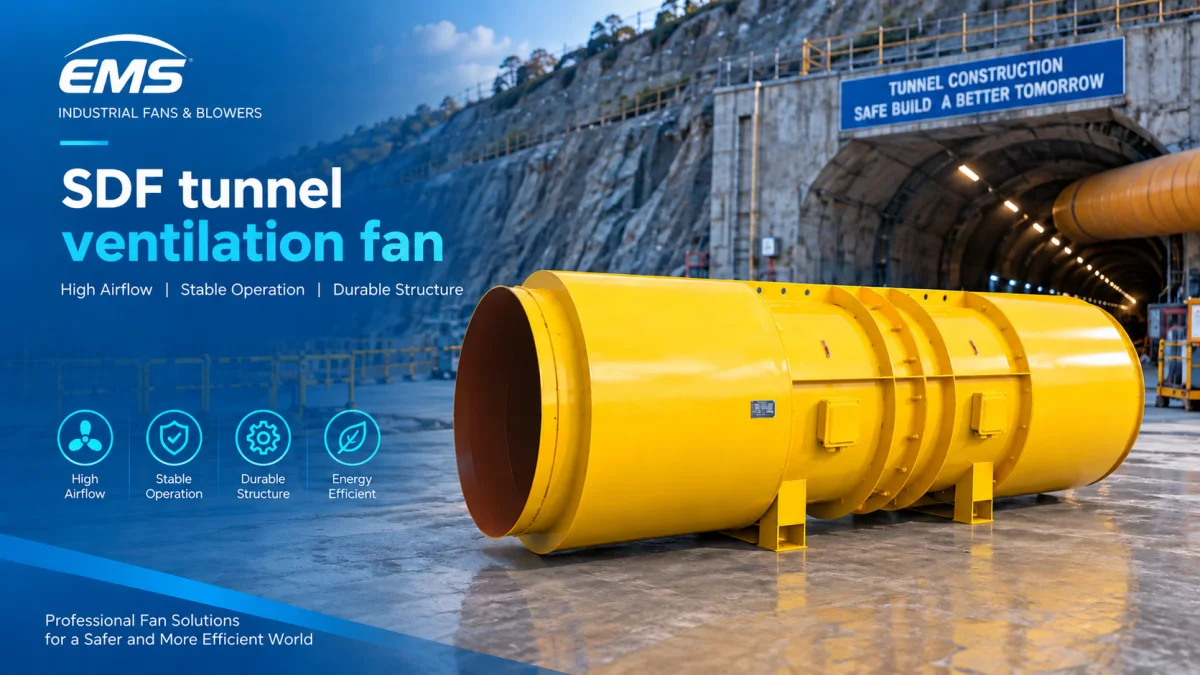

SDF Tunnel Ventilation Fan

SDF Tunnel Ventilation Fan
Product Overview
The SDF Tunnel Ventilation Fan is a high-efficiency axial flow fan designed for forced ventilation and local ventilation in road tunnels, railway tunnels, underground construction projects, mining roadways, and other confined underground spaces.
The fan is commonly connected to a flexible ventilation duct to deliver fresh air to tunnel headings or working areas, while also supporting the removal of contaminated air, dust, heat, and construction fumes.
EMS provides SDF Tunnel Ventilation Fans in different diameters, airflow capacities, pressure levels, motor powers, and configurations according to tunnel length, ventilation distance, duct dimensions, system resistance, and project requirements.
Main Applications
SDF Tunnel Ventilation Fans are suitable for:
Tunnel Construction Ventilation
Road Tunnel Ventilation
Railway Tunnel Ventilation
Underground Construction
Mining Tunnel Ventilation
Mine Heading Ventilation
Tunnel Excavation
Underground Roadway Ventilation
Tunnel Heading Ventilation
Long-Distance Duct Ventilation
Underground Engineering Ventilation
Local Tunnel Ventilation
Construction Site Air Exchange
Typical Technical Parameters
Parameter Typical Range
Product Type Tunnel Ventilation Fan
Fan Diameter 300–1600 mm
Airflow 3,000–150,000 m³/h
Pressure 300–8,000 Pa
Motor Power 2.2–160 kW
Motor Speed 1,450–2,980 rpm
Drive Type Direct Drive
Impeller Type Axial Flow
Motor Industrial / Mining Motor
Casing Material Carbon Steel / Customized
Blade Material Steel / Aluminum Alloy / Customized
Ventilation Mode Forced / Exhaust
Duct Connection Flexible Ventilation Duct
Installation Horizontal / Customized
Frequency 50 / 60 Hz
Duty Continuous Operation
The above values are typical engineering reference ranges and are not fixed specifications for every SDF model. Final airflow, pressure, motor power, fan diameter, and configuration should be selected according to the actual tunnel ventilation system.
