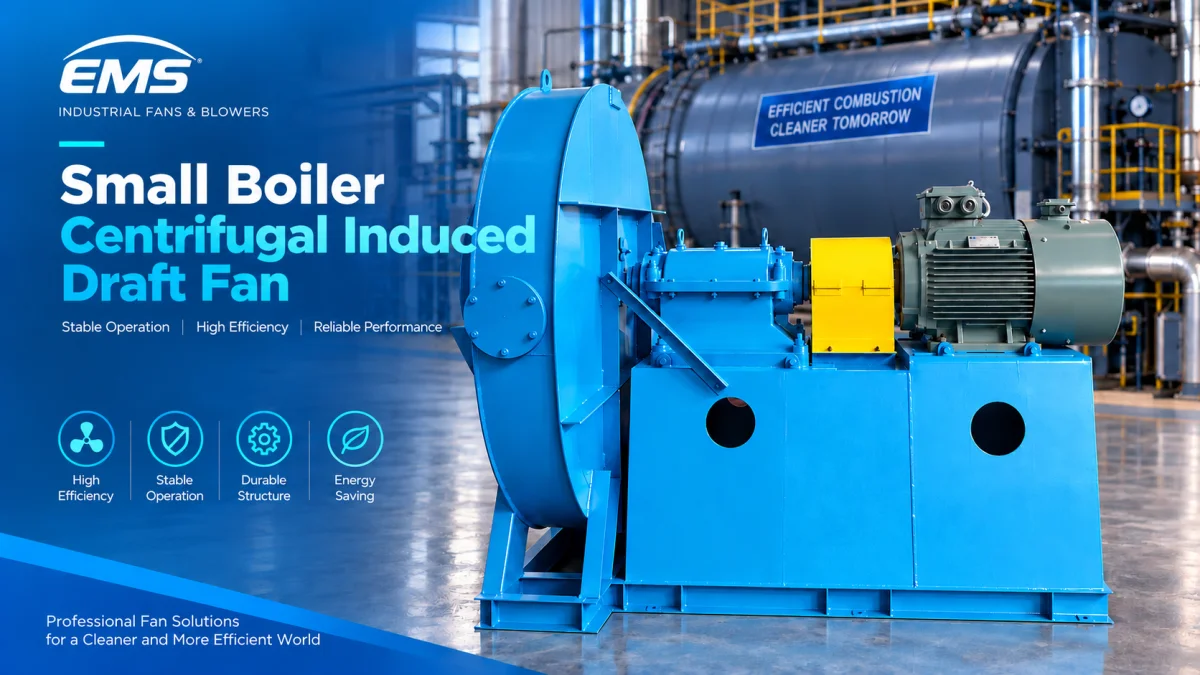

Small Boiler Centrifugal Induced Draft Fan

Small Boiler Centrifugal Induced Draft Fan
Product Overview
The Small Boiler Centrifugal Induced Draft Fan is a centrifugal fan designed for flue gas extraction and induced draft applications in small and medium-sized industrial boiler systems.
Installed downstream of the boiler flue gas system, the fan extracts combustion flue gas and transports it through dust collection, desulfurization, denitrification, or chimney systems. By maintaining the required negative pressure inside the furnace, the Y6-30 ID fan helps support stable boiler combustion and reliable flue gas discharge.
EMS provides Y6-30 boiler induced draft fans with customized airflow, pressure, motor power, materials, drive arrangements, and temperature configurations according to actual boiler operating conditions.
Main Applications
The Y6-30 Small Boiler ID Fan is suitable for:
Small Industrial Boilers
Steam Boilers
Hot Water Boilers
Heating Boilers
Industrial Heating Systems
Thermal Energy Systems
Boiler Flue Gas Exhaust
Boiler Dust Collection Systems
Flue Gas Desulfurization Systems
Flue Gas Denitrification Systems
Heat Supply Stations
Industrial Combustion Systems
Typical Technical Parameters
Parameter Typical Range
Product Type Small Boiler ID Fan
Fan Type Centrifugal Induced Draft Fan
Airflow 2,000–50,000 m³/h
Total Pressure 1,000–4,000 Pa
Motor Power 2.2–55 kW
Fan Speed 1,450–2,900 rpm
Gas Temperature Typically up to 250°C
Drive Type Direct / Belt Drive
Impeller Type Centrifugal
Casing Material Carbon Steel
Impeller Material Carbon Steel / Wear-Resistant Steel
Installation Horizontal
Duty Continuous Operation
Application Boiler Flue Gas Exhaust
The above figures are typical engineering reference ranges rather than fixed specifications for every Y6-30 model. Final airflow, pressure, speed, motor power, temperature rating, and material selection should be determined according to the actual boiler and flue gas system.
