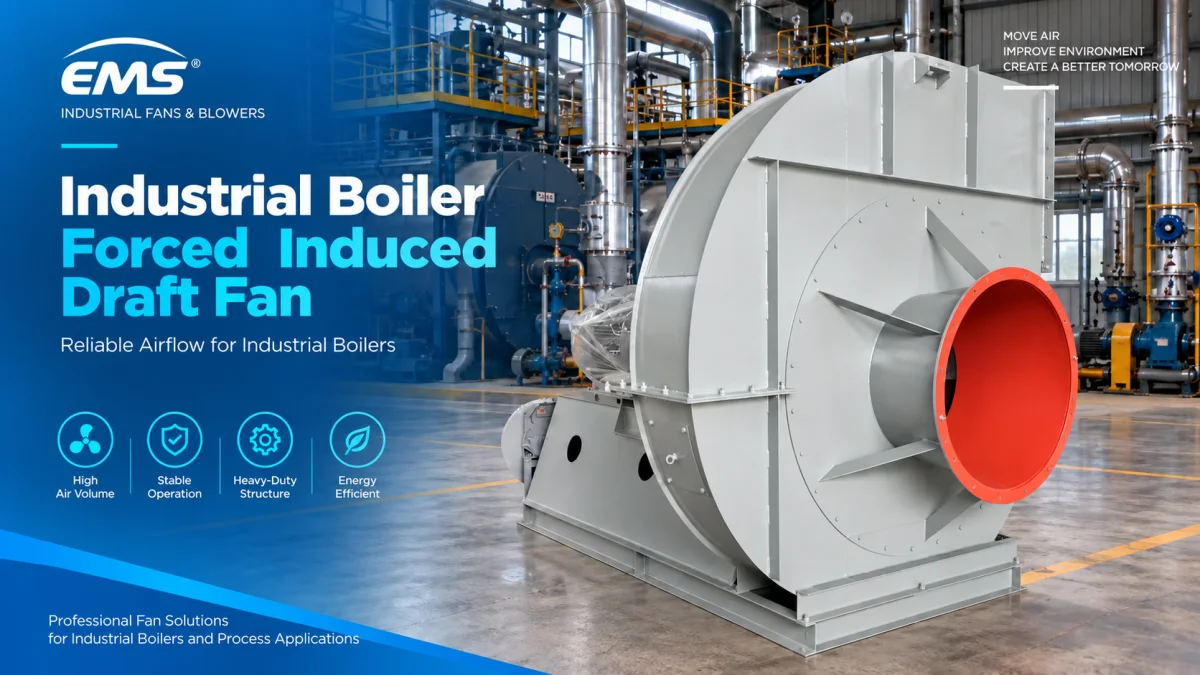

Industrial Boiler Forced Induced Draft Fan

Industrial Boiler Forced Induced Draft Fan
Product Overview
The Industrial Boiler Forced Induced Draft Fan is a centrifugal industrial fan designed for boiler ventilation, combustion air supply, and flue gas extraction applications.
Depending on the boiler system configuration, the GY6-41 can be engineered as a Forced Draft Fan (FD Fan) for combustion air supply or an Induced Draft Fan (ID Fan) for boiler flue gas extraction.
EMS provides customized GY6-41 boiler fans based on boiler capacity, fuel type, airflow or flue gas volume, system resistance, gas temperature, dust concentration, and downstream environmental protection equipment.
Main Applications
The GY6-41 is suitable for:
Industrial Boiler Ventilation
Boiler Forced Draft Systems
Boiler Induced Draft Systems
Steam Boilers
Hot Water Boilers
Industrial Heating Systems
Thermal Energy Systems
Boiler Combustion Air Supply
Boiler Flue Gas Exhaust
Dust Collection Systems
Flue Gas Treatment Systems
Biomass Boiler Systems
Waste Heat Boiler Systems
CHP Systems
Typical Technical Parameters
Parameter Typical Range
Product Type Industrial Boiler Draft Fan
Fan Type Centrifugal Fan
Application Forced Draft / Induced Draft
Airflow 3,000–150,000 m³/h
Total Pressure 1,000–6,000 Pa
Motor Power 5.5–315 kW
Fan Speed 730–2,900 rpm
Gas Temperature Typically up to 250°C
Drive Type Direct / Belt / Coupling
Impeller Type Centrifugal
Casing Material Carbon Steel / Customized
Impeller Material Carbon Steel / Wear-Resistant Steel
Motor Industrial Motor
Installation Horizontal / Customized
Duty Continuous Operation
Application Boiler Air Supply / Flue Gas Exhaust
The above values are typical engineering reference ranges and are not fixed specifications for every GY6-41 configuration. Final airflow, pressure, speed, motor power, temperature rating, and materials should be selected according to the actual boiler system.
