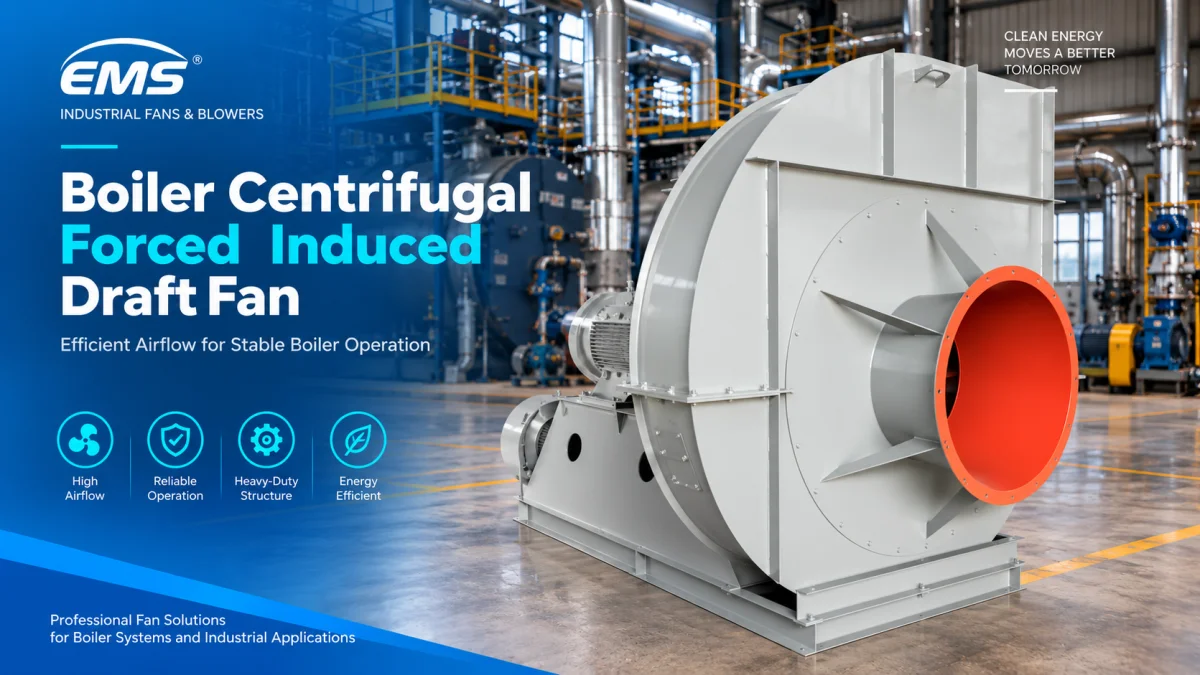

Boiler Centrifugal Forced Induced Draft Fan

Boiler Centrifugal Forced Induced Draft Fan
Product Overview
The Boiler Centrifugal Forced Induced Draft Fan is an industrial centrifugal fan designed for boiler ventilation, combustion air supply, flue gas extraction and draft control.
Depending on the system configuration, the GY5-51 can be used as either a Forced Draft (FD) Fan or an Induced Draft (ID) Fan. It is suitable for industrial boilers, steam boilers, biomass boilers, waste heat boilers, heating systems and boiler flue gas treatment systems.
EMS provides customized fan solutions based on airflow, pressure, temperature, dust concentration, system resistance, material requirements and installation conditions.
Main Applications
Industrial Boiler Forced Draft
Industrial Boiler Induced Draft
Boiler Combustion Air Supply
Boiler Flue Gas Exhaust
Steam Boiler Ventilation
Biomass Boiler Systems
Waste Heat Boiler Systems
Boiler Dust Collection
Flue Gas Desulfurization
Denitrification Systems
District Heating
Thermal Energy Systems
CHP Plants
Industrial Heating Systems
Typical Technical Parameters
Parameter Typical Range
Product Type Centrifugal Forced & Induced Draft Fan
Airflow 3,000–200,000 m³/h
Total Pressure 1,000–6,000 Pa
Motor Power 5.5–500 kW
Fan Speed 730–2,900 rpm
Gas Temperature Up to 250°C typical
Drive Type Direct / Belt / Coupling
Fan Type Single-Suction Centrifugal Fan
Impeller Material Carbon Steel / Wear-Resistant Steel
Casing Material Carbon Steel / Customized
Bearing Heavy-Duty Industrial Bearing
Installation Horizontal / Customized
Frequency 50 Hz / 60 Hz
Operation Continuous Duty
Note: These are typical engineering reference ranges, not fixed specifications for every GY5-51 configuration. Final selection should be based on the actual operating point and system conditions.
