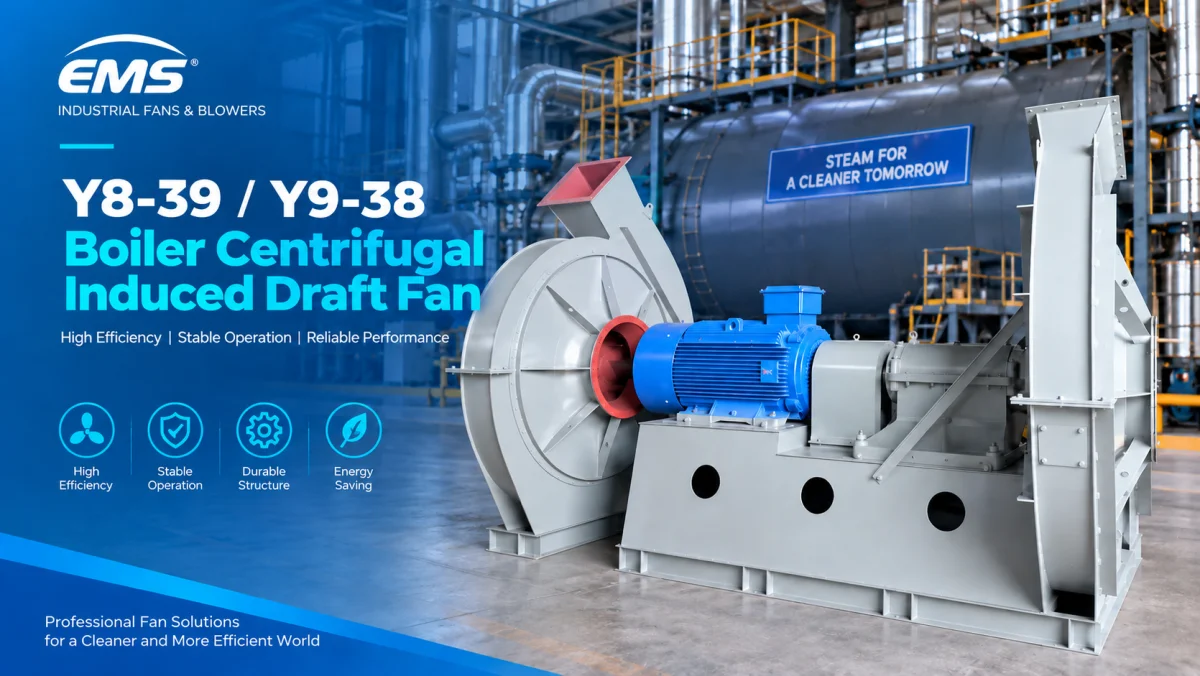

Y8-39 / Y9-38 Boiler Centrifugal Induced Draft Fan

Y8-39 / Y9-38 Boiler Centrifugal Induced Draft Fan
Product Overview
The Y8-39 / Y9-38 Boiler Centrifugal Induced Draft Fan is designed for industrial boiler flue gas extraction, furnace negative pressure control and continuous boiler exhaust ventilation.
The fan is typically installed downstream of the boiler and pollution-control equipment. It extracts combustion flue gas and provides sufficient pressure to overcome the resistance of dust collectors, FGD and DeNOx systems, ducts and chimneys.
The Y8-39 / Y9-38 series is suitable for industrial steam boilers, hot water boilers, biomass boilers, waste heat boilers, district heating systems and industrial thermal energy applications.
EMS provides customized configurations according to airflow, pressure, gas temperature, dust concentration, gas composition and total system resistance.
Main Applications
Industrial Boiler Induced Draft
Boiler Flue Gas Exhaust
Steam Boiler ID Fan
Hot Water Boiler ID Fan
Biomass Boiler ID Fan
Waste Heat Boiler Exhaust
Boiler Dust Collection
Flue Gas Desulfurization
Denitrification Systems
Industrial Heating Systems
District Heating
CHP Boiler Systems
Thermal Energy Systems
Industrial Furnace Exhaust
Typical Technical Parameters
Parameter Typical Range
Product Type Boiler Centrifugal Induced Draft Fan
Airflow 5,000–300,000 m³/h
Total Pressure 1,500–8,000 Pa
Motor Power 7.5–800 kW
Fan Speed 730–2,900 rpm
Gas Temperature Up to 250°C typical
Drive Type Direct / Belt / Coupling
Fan Structure Single-Suction Centrifugal
Impeller Material Carbon Steel / Wear-Resistant Steel
Casing Material Carbon Steel / Customized
Bearing Heavy-Duty Industrial Bearing
Installation Horizontal / Customized
Frequency 50 Hz / 60 Hz
Operation Continuous Duty
Engineering Note: These are typical engineering reference ranges rather than fixed specifications for every Y8-39 or Y9-38 configuration. Actual performance depends on the selected size and operating conditions.
