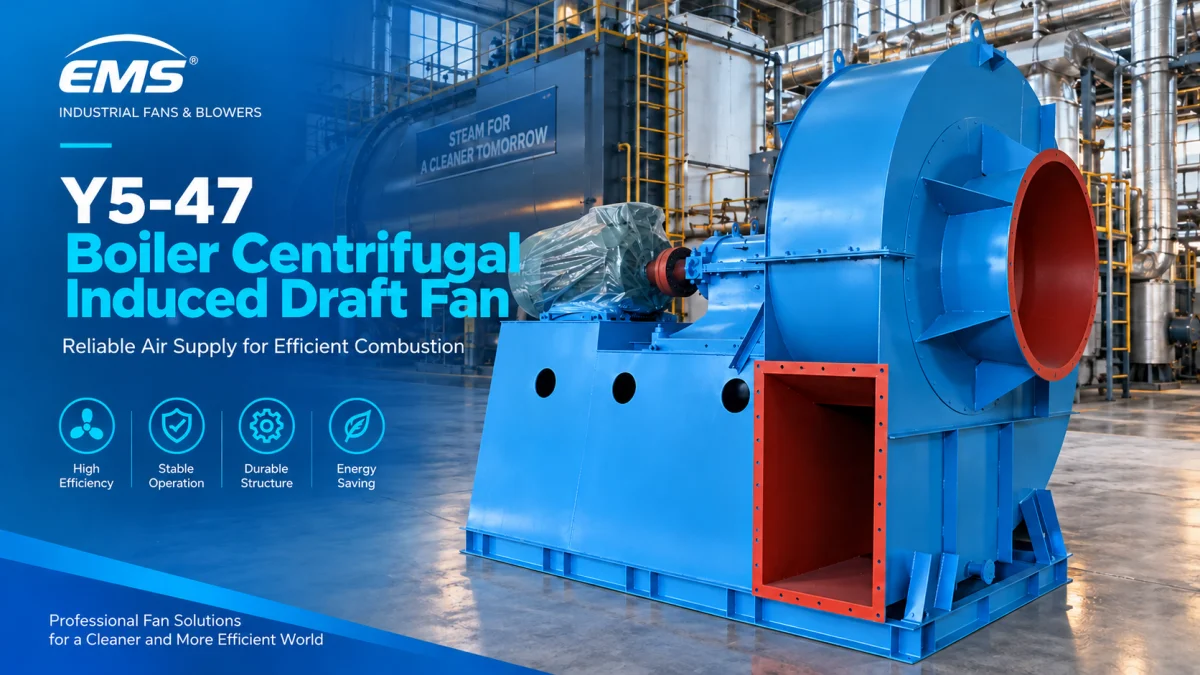

Y5-47 Boiler Centrifugal Induced Draft Fan

Y5-47 Boiler Centrifugal Induced Draft Fan
Product Overview
The Y5-47 Boiler Centrifugal Induced Draft Fan is an industrial centrifugal ID fan designed for boiler flue gas extraction, furnace negative pressure control and continuous boiler exhaust ventilation.
The fan is typically installed in the downstream flue gas system. It extracts combustion flue gas from the boiler and overcomes the resistance of dust collectors, FGD and DeNOx equipment, ductwork and chimneys.
The Y5-47 is suitable for industrial steam boilers, hot water boilers, biomass boilers, waste heat boilers, district heating systems and industrial thermal energy applications.
EMS provides customized fan configurations according to airflow, pressure, gas temperature, dust concentration, gas composition and installation conditions.
Main Applications
Industrial Boiler Induced Draft
Boiler Flue Gas Exhaust
Steam Boiler ID Fan
Hot Water Boiler ID Fan
Biomass Boiler ID Fan
Waste Heat Boiler Exhaust
Boiler Dust Collection
Flue Gas Desulfurization
Denitrification Systems
Industrial Heating Systems
District Heating
CHP Boiler Systems
Thermal Energy Systems
Typical Technical Parameters
Parameter Typical Range
Product Type Boiler Centrifugal Induced Draft Fan
Airflow 3,000–150,000 m³/h
Total Pressure 1,000–5,000 Pa
Motor Power 5.5–315 kW
Fan Speed 730–2,900 rpm
Gas Temperature Up to 250°C typical
Drive Type Direct / Belt / Coupling
Fan Structure Single-Suction Centrifugal
Impeller Material Carbon Steel / Wear-Resistant Steel
Casing Material Carbon Steel / Customized
Bearing Industrial Heavy-Duty Bearing
Installation Horizontal / Customized
Frequency 50 Hz / 60 Hz
Operation Continuous Duty
Engineering Note: These are typical reference ranges rather than fixed specifications for every Y5-47 configuration. Final fan selection should be based on the actual duty point and system conditions.
