Product Overview

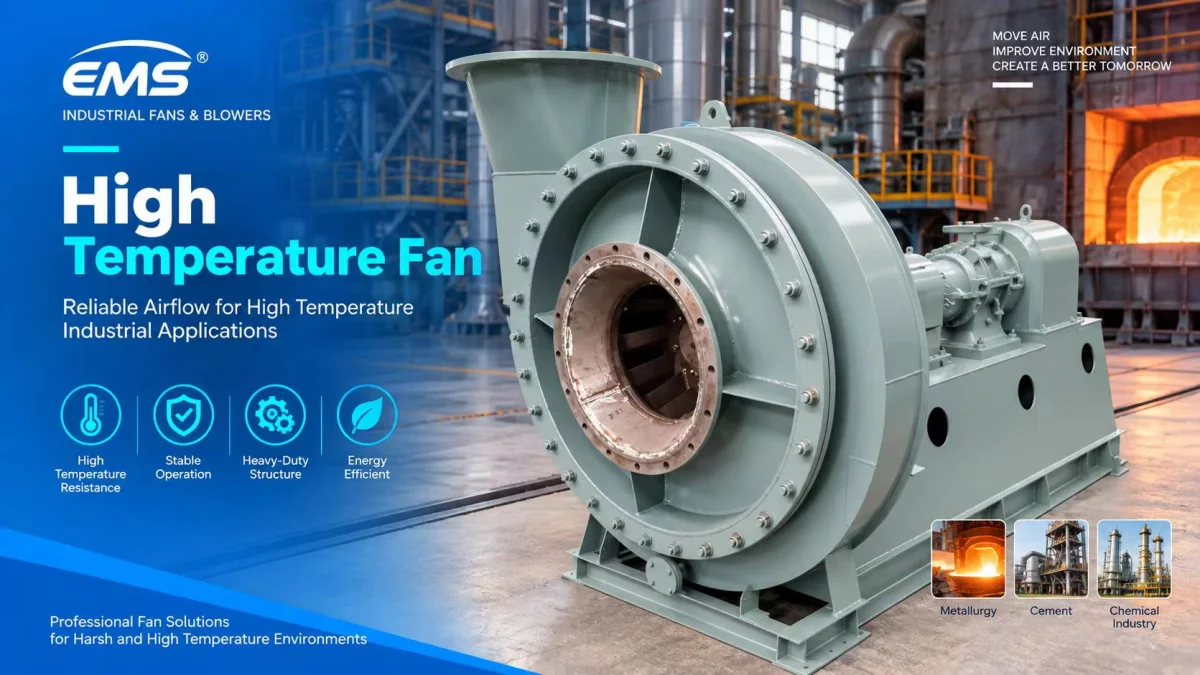

The EMS High Temperature Industrial Fan is designed for conveying high-temperature air, hot gas, furnace gas, flue gas and industrial process gases. The fan can be engineered with high-temperature materials, bearing cooling systems, heat-resistant seals and customized drive arrangements according to actual operating conditions.
High Temperature Centrifugal Fans are widely used in industrial boilers, furnaces, kilns, steel mills, cement plants, glass furnaces, paper mills, waste incineration systems, heat treatment equipment and industrial flue gas treatment systems.
Main Applications
Industrial Furnace Exhaust
High Temperature Flue Gas Exhaust
Boiler Induced Draft Systems
Kiln Exhaust Systems
Steel Mill Furnace Ventilation
Metallurgical Process Exhaust
Cement Kiln Exhaust
Glass Furnace Exhaust
Waste Incinerator Exhaust
High Temperature Drying
Hot Air Circulation
Heat Treatment Equipment
Industrial Waste Gas Treatment
High Temperature Dust Collection
Typical Technical Parameters
Parameter Typical Range
Fan Type High Temperature Centrifugal Fan
Airflow 1,000–300,000 m³/h
Total Pressure 500–15,000 Pa
Motor Power 2.2–800 kW
Fan Speed 730–2,900 rpm
Gas Temperature 100–500°C+
Impeller Diameter 300–3,000 mm
Drive Type Direct / Belt / Coupling
Impeller Material Carbon Steel / Wear-Resistant Steel / Stainless Steel
Casing Material Carbon Steel / Stainless Steel / Customized
Bearing Heavy-Duty Industrial Bearing
Cooling System Air-Cooled / Water-Cooled Optional
Installation Horizontal / Customized
Frequency 50 Hz / 60 Hz
Operation Continuous Duty
Engineering Note: These are typical reference ranges, not fixed specifications for every fan model. Final selection should be based on the required airflow, pressure, gas temperature, gas density, dust concentration, gas composition and total system resistance.
