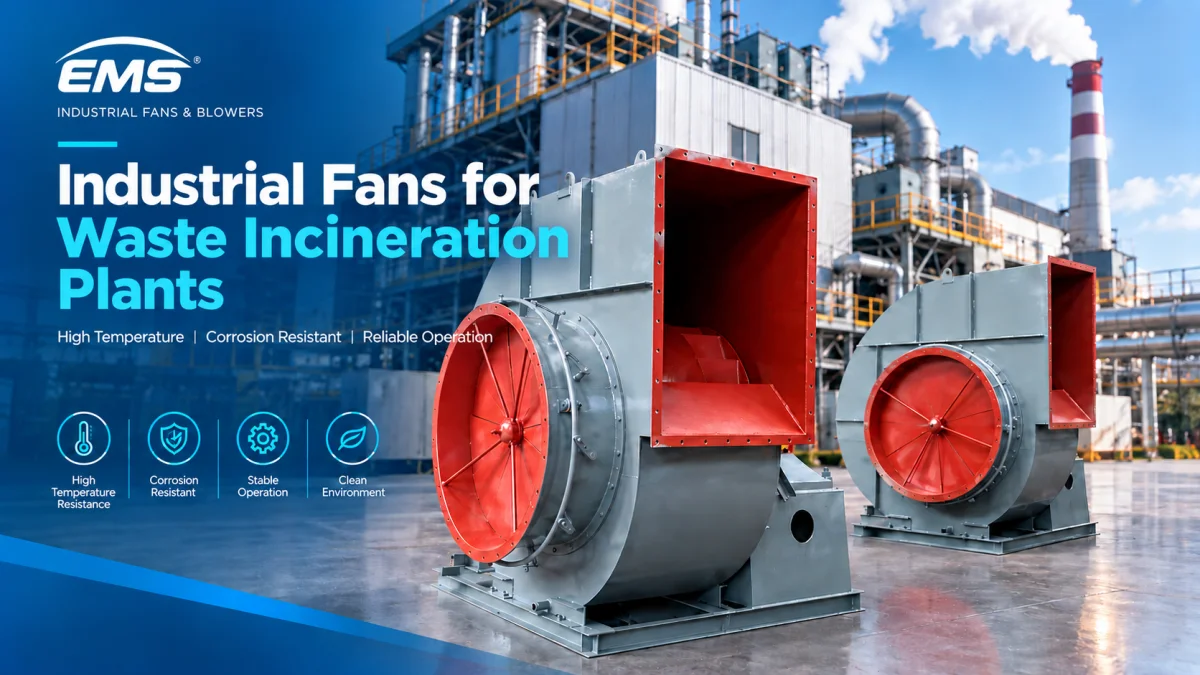

Industrial Fans for Waste Incineration Plants

Industrial Fans for Waste Incineration Plants
Product Overview
Industrial Fans for Waste Incineration Plants are industrial air handling solutions designed for municipal waste incineration, industrial waste treatment, solid waste processing, waste-to-energy plants, and related flue gas treatment systems.
Waste incineration processes involve combustion air, high-temperature flue gas, furnace draft control, dust, corrosive gases, cooling air, and environmental exhaust. These operating conditions require reliable centrifugal fans with appropriate airflow, pressure, temperature resistance, mechanical strength, and continuous-duty performance.
EMS provides a complete range of industrial fan solutions, including Waste Incinerator ID Fans, FD Fans, Primary Air Fans, Secondary Air Fans, Combustion Air Fans, Flue Gas Exhaust Fans, Dust Collection Fans, Waste Gas Treatment Fans, Incinerator Cooling Fans, and High Temperature Centrifugal Fans.
Fan materials, impeller construction, bearings, seals, cooling arrangements, and drive systems can be selected according to gas temperature, gas composition, dust concentration, corrosion conditions, airflow, pressure, and installation requirements.

Main Applications
Waste Incinerator Induced Draft
Waste Incinerator ID Fans extract flue gas from the combustion chamber and help maintain the required negative pressure within the incineration system.
Primary Combustion Air
Primary Air Fans supply combustion air to the grate and primary combustion zone to support stable waste combustion.
Secondary Combustion Air
Secondary Air Fans supply additional combustion air to the furnace and help improve air distribution within the combustion zone.
Combustion Air Supply
Combustion Air Fans provide stable airflow to burners and combustion systems used in waste incineration plants.
Flue Gas Exhaust
Flue Gas Exhaust Fans transport hot flue gas from the incinerator toward downstream flue gas treatment and exhaust systems.
Flue Gas Treatment
Fans can be integrated with dust removal, flue gas cleaning, acid gas treatment, and other environmental protection systems.
Dust Collection
Centrifugal fans can provide the required airflow for baghouse filters, cyclone collectors, and other particulate removal systems.
Incinerator Cooling
Fans can provide cooling and ventilation air for furnace components, grates, equipment, and surrounding high-temperature areas.

Main Product Types
Product Application
Waste Incinerator ID Fan Furnace draft and flue gas extraction
Waste Incinerator FD Fan Combustion air supply
Primary Air Fan Primary combustion air
Secondary Air Fan Secondary combustion air
Combustion Air Fan Incinerator combustion system
Flue Gas Exhaust Fan Flue gas transportation
Waste Gas Treatment Fan Flue gas treatment systems
Dust Collection Fan Dust and particulate extraction
Incinerator Cooling Fan Equipment and furnace cooling
High Temperature Centrifugal Fan High-temperature gas handling
Heavy Duty Incineration Fan Continuous-duty operation
Customized Incinerator Fan Special operating conditions

Technical Parameters
Technical Parameter Typical Range
Air Volume 2,000–500,000 m³/h
Total Pressure 1,000–15,000 Pa
Static Pressure 500–12,000 Pa
Gas Temperature -20°C to 500°C+
Motor Power 2.2–1,000 kW
Fan Speed 500–2,900 rpm
Impeller Diameter 300–3,500 mm
Drive Type Direct / Coupling / Belt Drive
Material Carbon Steel / Stainless Steel / Customized
Installation Horizontal / Vertical / Customized
Application Combustion / ID / Exhaust / Cooling / Dust Collection
Actual specifications should be selected according to incinerator design, waste composition, gas temperature, airflow, pressure, dust concentration, gas composition, system resistance, and installation conditions.
