Company overview

WCB is located in Xuzhou, Jiangsu Province, the largest slewing bearing production base in China. With more than 20 years of slewing bearing production experience.

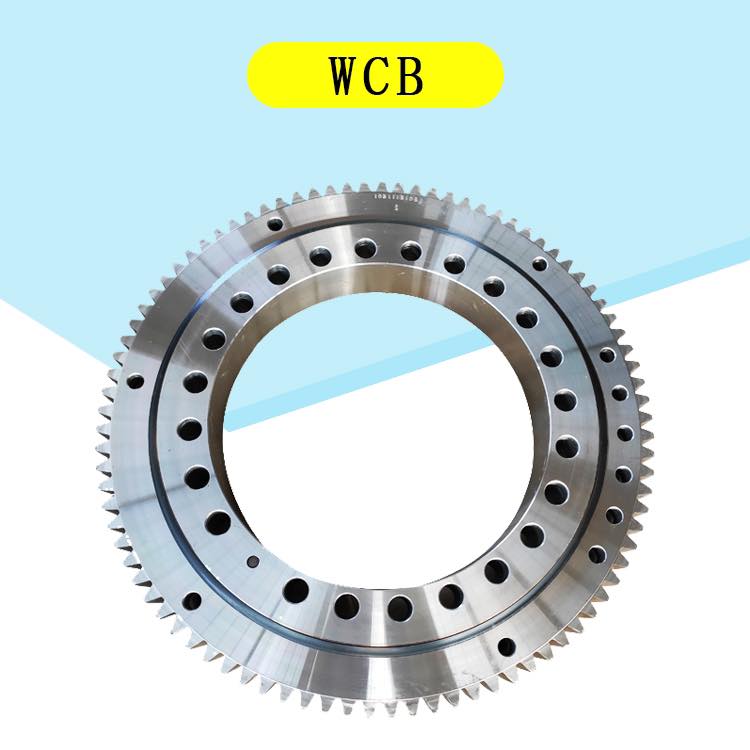

Since our establishment, WCB has produced 4 point single-row ball type, double-row ball type, cross-roller type, three-row roller type slewing bearings.

Our products are widely used in construction machinery, engineering machinery, port machinery, metallurgical machinery, light industrial machinery, wind power, solar power, medical CT and other fields.

Over the years, WCB has provided supporting products for well-known domestic enterprises, and exported to the United States, the United Arab Emirates, Japan, South Korea, Chile, Vietnam, Russia and other countries, and has a good market reputation and reputation.

Raw Material:

Our slewing bearings raw material 50Mn/42CrMo Steel supplier are all from well-known domestic companies, ANSTEEL SHAGANG STEEL BAOSTEEL etc

• No white spots and cracks
• Non-metallic inclusion sulfide <2.5 grade
• Quenched and tempered hardness is 220 HB~262 HB
• Provide material report

Carbon steel combined with a heat treatment, is an excellent solution for heavy load application.

Heat Treatment:

Slewing Bearings heat treatment is a crucial step in the process that gives our slewing bearings their characteristics of outstanding stability and hardness.

The raceway of the ferrule should be quenched, the surface hardness of the raceway should reach 55 HRC~62 HRC, the depth>3mm, and mark “S” at the soft belt. Gears to be quenched are divided into tooth surface quenching and tooth surface tooth root For quenching and full-tooth quenching, the surface hardness of the quenched part is 50 HRC~60 HRC.

Package Detail:

For regular size slewing rings (within 2.2m) the packaging is made of regular plywood without fumigation, export wooden boxes.The following packaging is also supported

• Carton packaging
• Iron frame packaging
• Wooden pallet packaging
• Plastic pallet packaging

Customised packaging types are available upon request.

Business type
Main category
Power Transmission
Main products
Slewing Bearing, Slewing Ring, Swing Gear
