AC90-260/DC 280-320V power supply for 300-350watt CO2 combining beam generator on laser weeding machine

Description

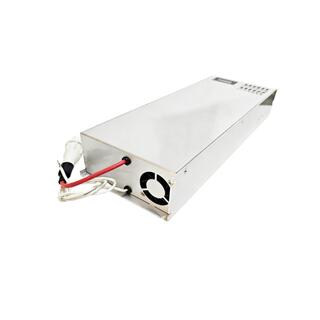

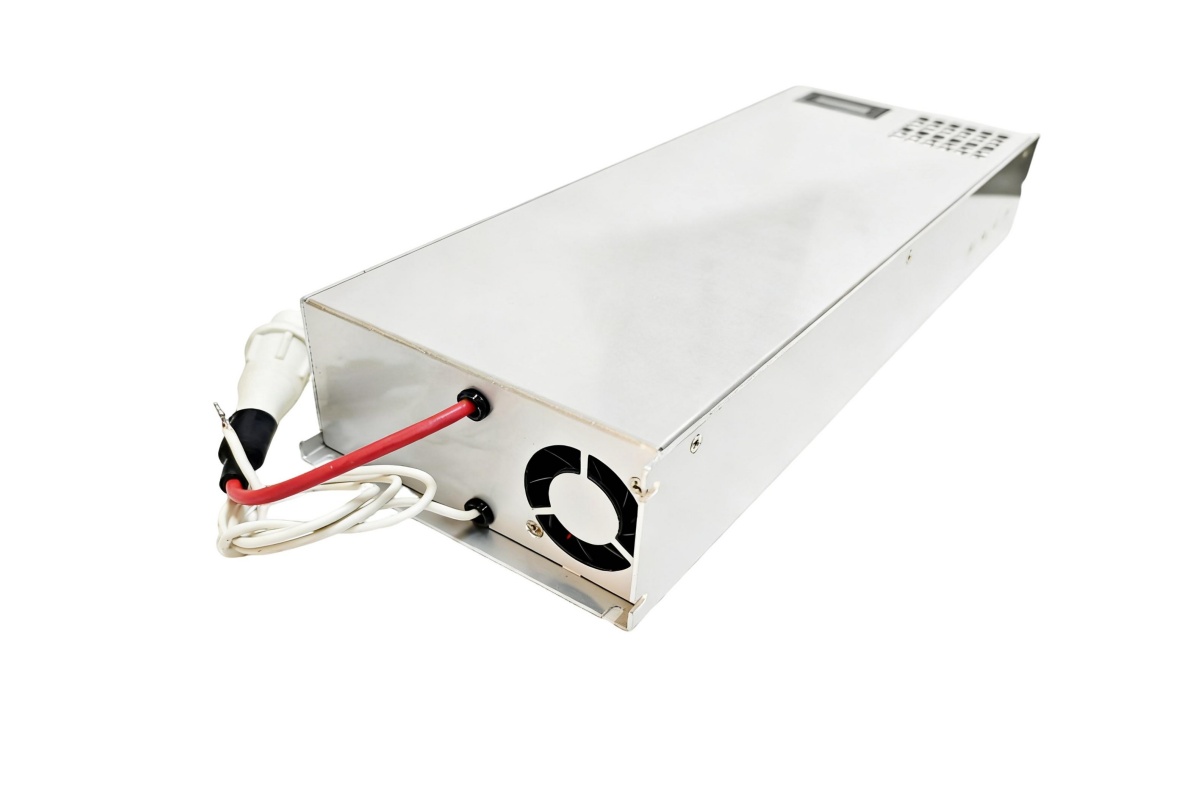

ZS-L150W-Y CO2 Laser power supply


Feature:

1.This ZS-L150W-Y CO2 laser power supply is specially developed on laser weeder or other special CO2 laser application. It can support input voltages of AC180-260V or DC 280-350V. In this way, battery can be used to supply power to this 150W laser power supply instead of using a generator. It saves space, and the laser weeding machine or other special laser equipment can be made very compact. At the same time, it also avoids the noise caused by the generator, allowing the laser machine work very quietly.
2. It has light weight and small size, which is easily used on mobile vehicles.
3. It has CO2 laser tube damage protection. If the laser tube is damaged, power supply will not output current which protects the operator.
4. It has enhanced short-circuit protection and open circuit protection. In short circuit status, the power supply is in a protected condition and stop works. In an open circuit status, the power supply doesn't output high voltage and the laser tube does not output laser power.
5. It can be used to drive ordinary 150W sealed glass CO2 laser tubes. Two pieces ZS-L150W-Y laser power supplies can drive 300-350W combined beam laser generator and 300-350W folded CO2 laser tubes.
6.90-270V voltage stabilization function can be optional.
7. The current adaptive function is optional. Press the button, and the power supply's output current will automatically adjust to the value which matches with the laser tube and remain unchanged.
8. It uses silicon carbide instead of traditional diodes. Silicon carbide has low heat dissipation and low failure rate. So the power supply is durable and can adapt to high temperature and humid environments. The warranty is one year.
9.Due to silicon carbide, it also reduces complex circuit design and ensures power supply has consistent output parameters, which resulting in better laser cutting and engraving effects
10. It can use 0-5V analog signals or PWM signals to control the output power.
11. It has good grounding protection which can provide very safe protection for operators.

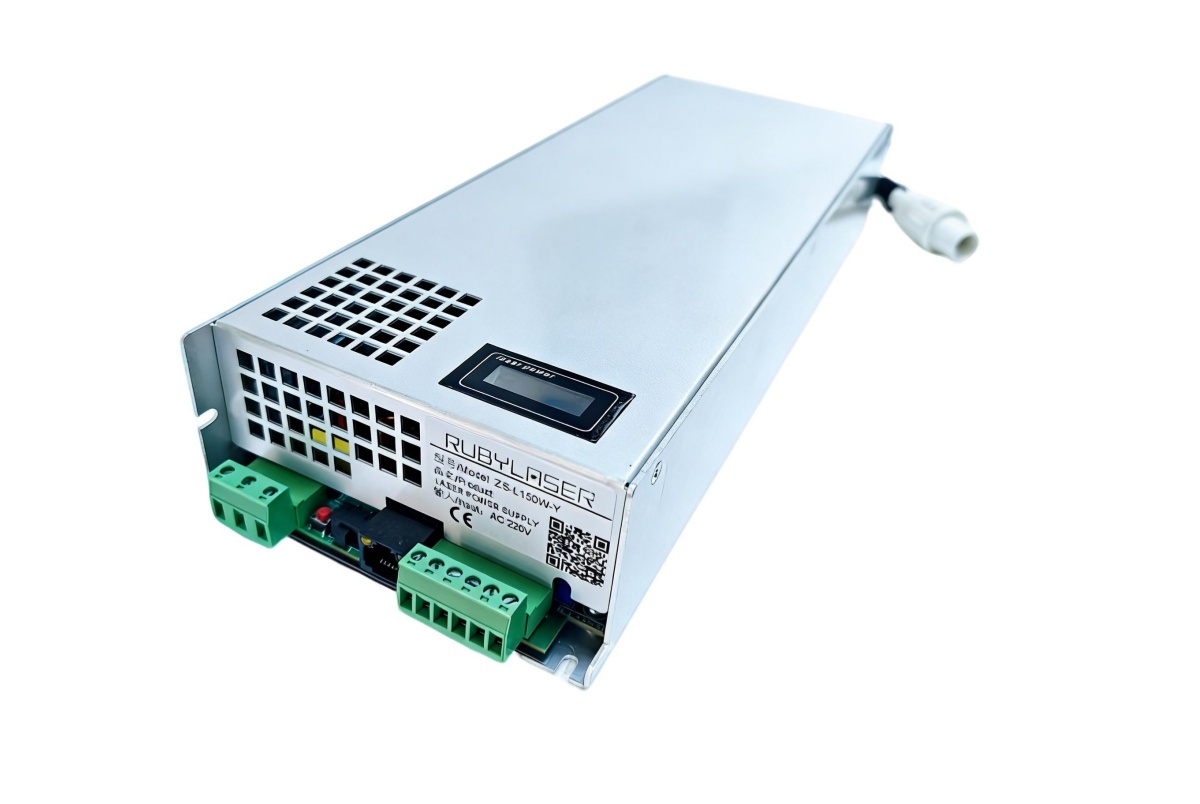

12. It uses H/L/P/G/IN/5V green terminal blocks to receive laser control signals and has an aluminum cover and base, which have good ventilation and heat dissipation functions.
13. Its terminal control is simple and reliable, which is suitable for high and low level signals. TTL level can be used to control the start and stop of laser power. At the same time, an abnormal protection switch has been added to detect whether it has external water through.
14. It adopts surface mount assembly technology, fully automated and standardized production line. Besides, it uses high-definition cameras to detect circuit boards, assembly components, and soldering effects. These methods reduce the possibility of human error causing unquolified CO2 laser power supply.

15. 180W CO2 laser power supply can be customized for buyer's technical requirement.

00 wire connection.jpg

Specification：

lnput

Input voltage

AC180-260V or DC 280-350V±10% (AC110V specified while order)


AC frequency

47~440HZ


Maximum input power

1000W


Maximum input current

4.5A

Output

Maximum output voltage

50KV


Maximum output current

45mA

(depending on the laser tubes of different manufacturers)

Efficiency

More than 90% (Full load)

Response speed

Not more than 1ms

Control lnterace

TTL multilevel switching control,effective level can be high and low selection (see control wining diagram)

Insulation

lnput-output

AC 1500V 1 minutes not more than 10mA


lnput-shell

AC 1500V 1 minutes not more than10mA


Output-shell

Connection

Open Circuit Protection

Can be short circuit (requires a good grounding shell,while avoiding the positive electrode and the shell between the arc)

Environmental Requested

Working temperature

-10℃~50℃


Storage of temperature

-20℃~75℃


Relative Humidity

Maximum 85%RH (non-condensing)


Altitude

100,000 feet of work

200,000 feet of storage,dose not work

Cooling methods

Forced air cooling (fan cooling)

Dimensions (LxWxH)

350mmx123mmx56mm

Brand

RUBYLASER

Model

ZS-L150W-Y CO2 Laser power supply for Co2 combining beam tube on laser weeder

Country of origin

Jinan,china
