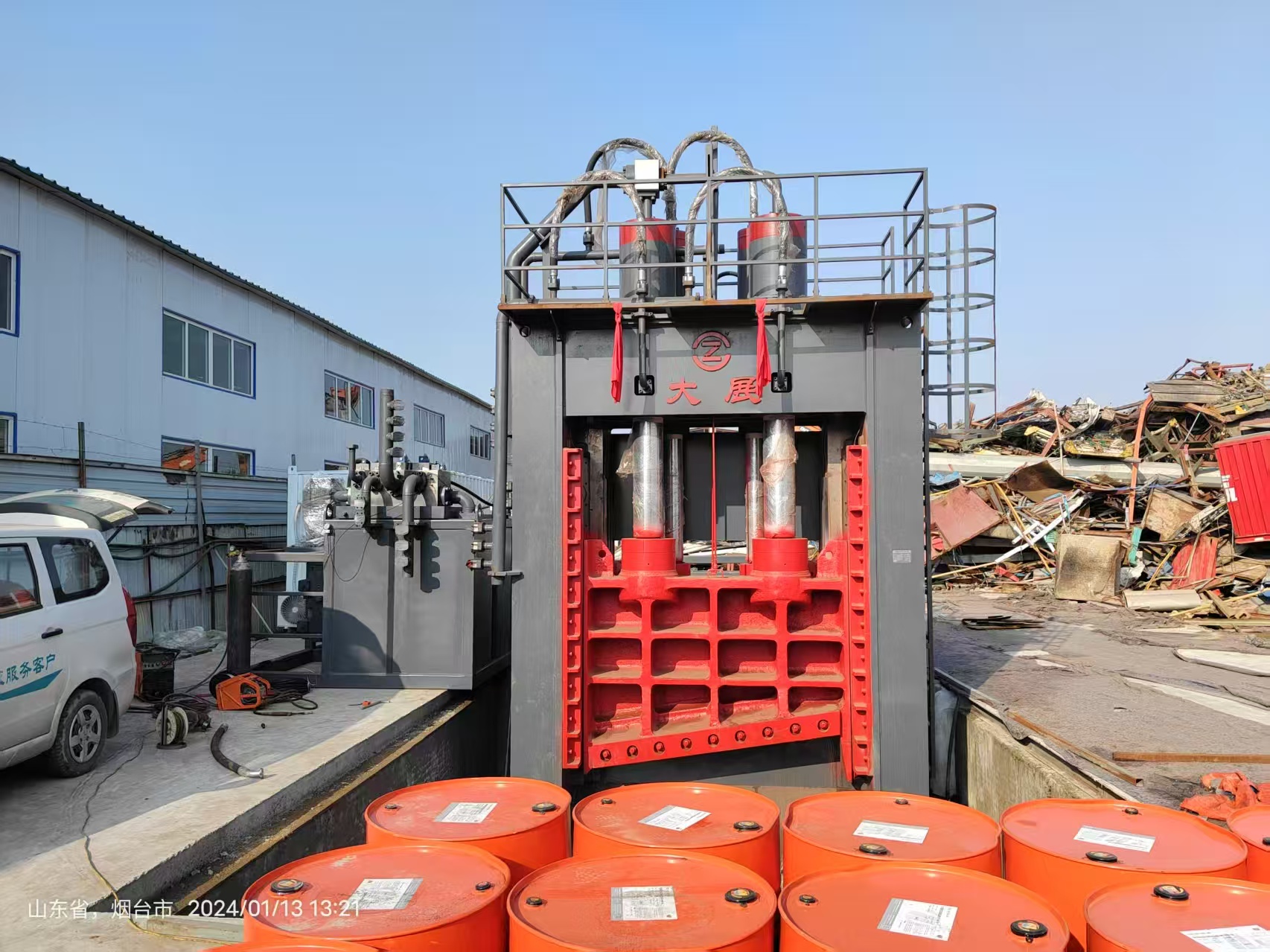

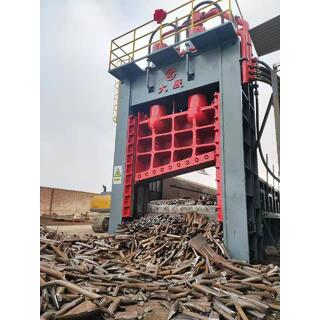

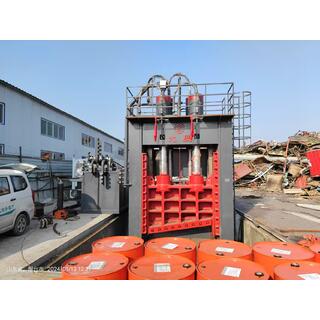

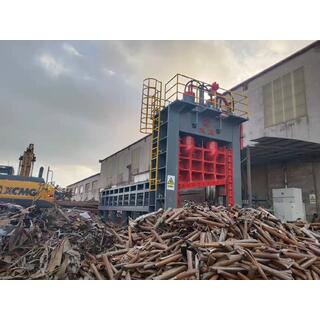

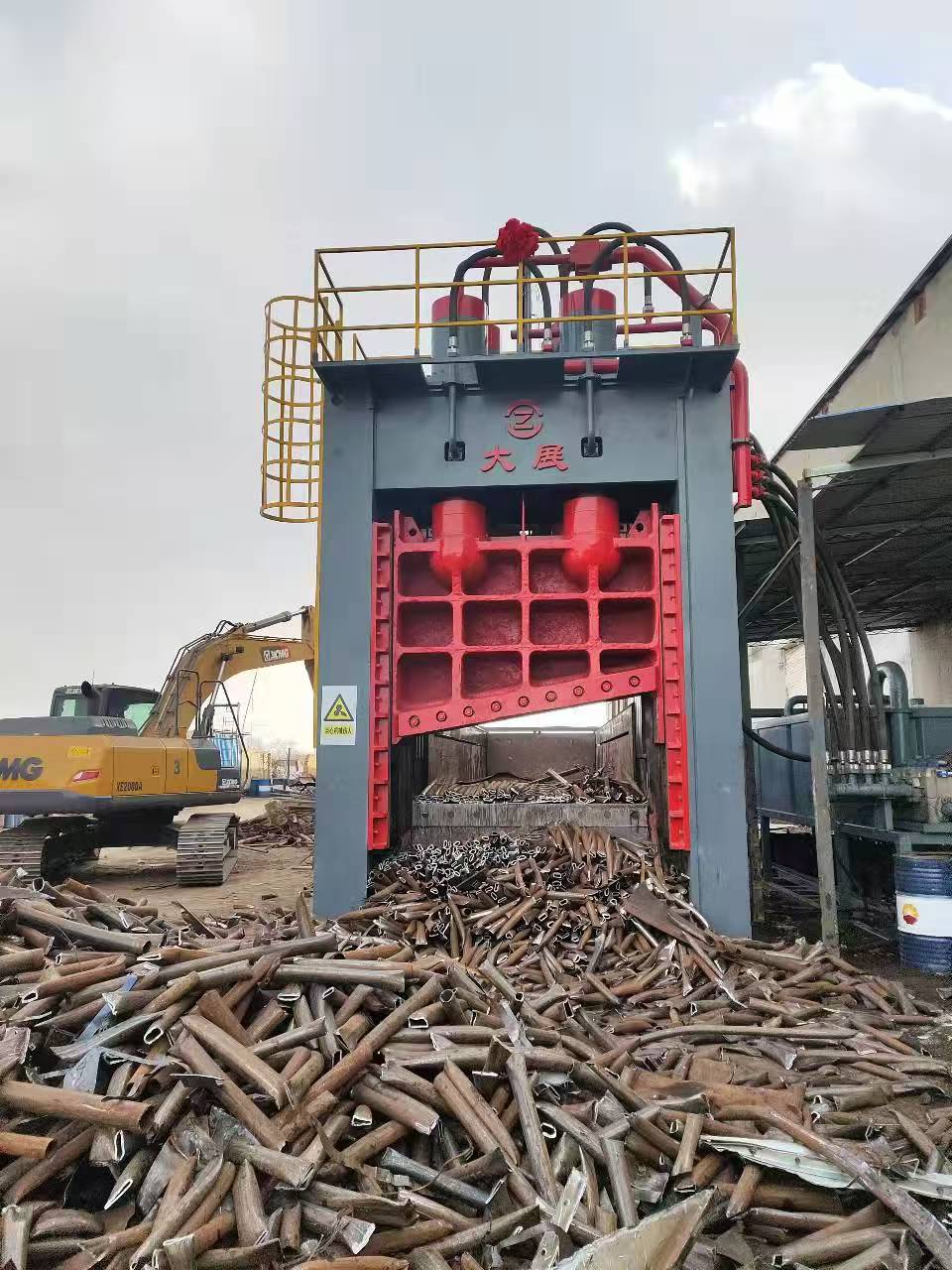

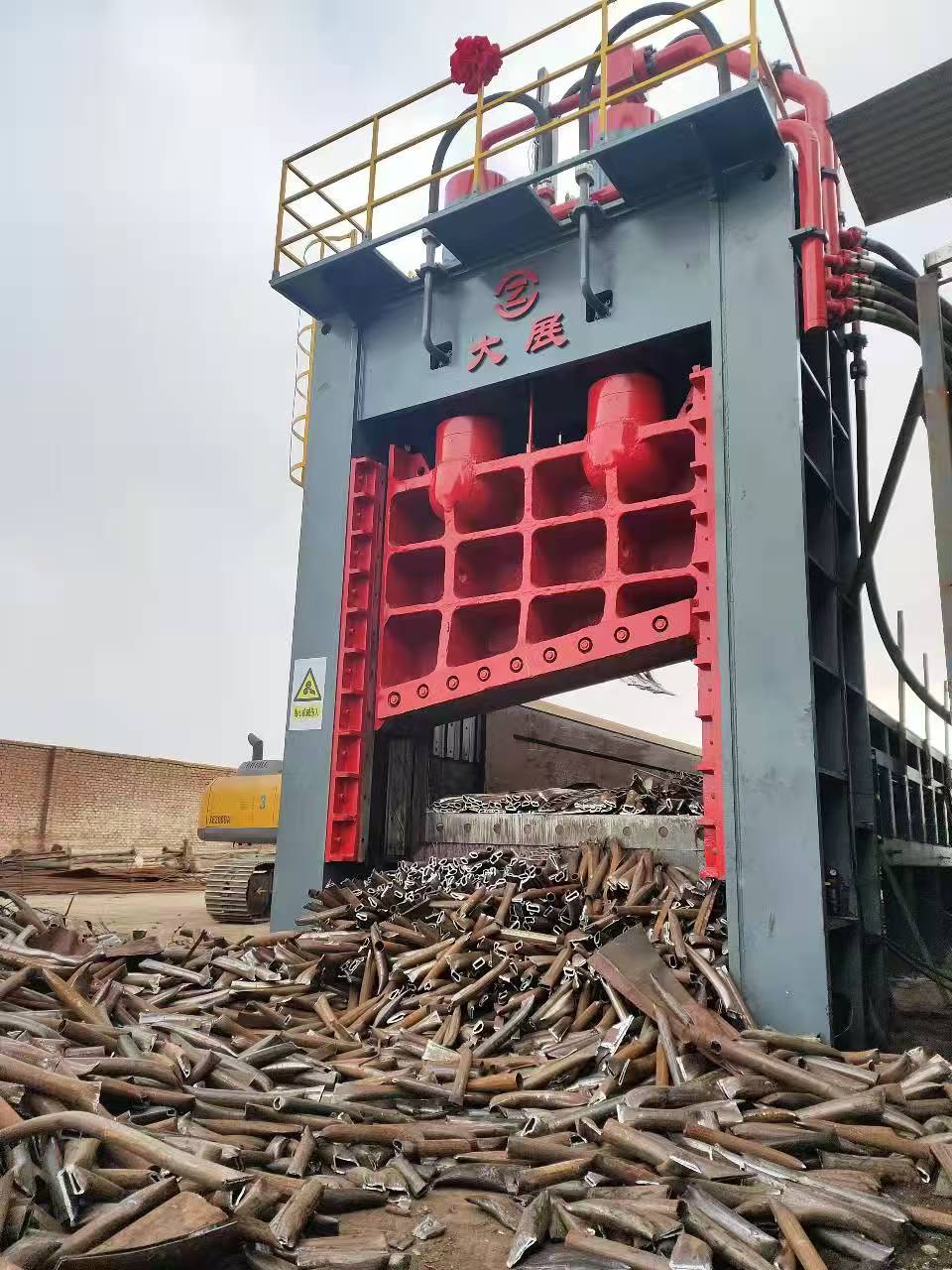

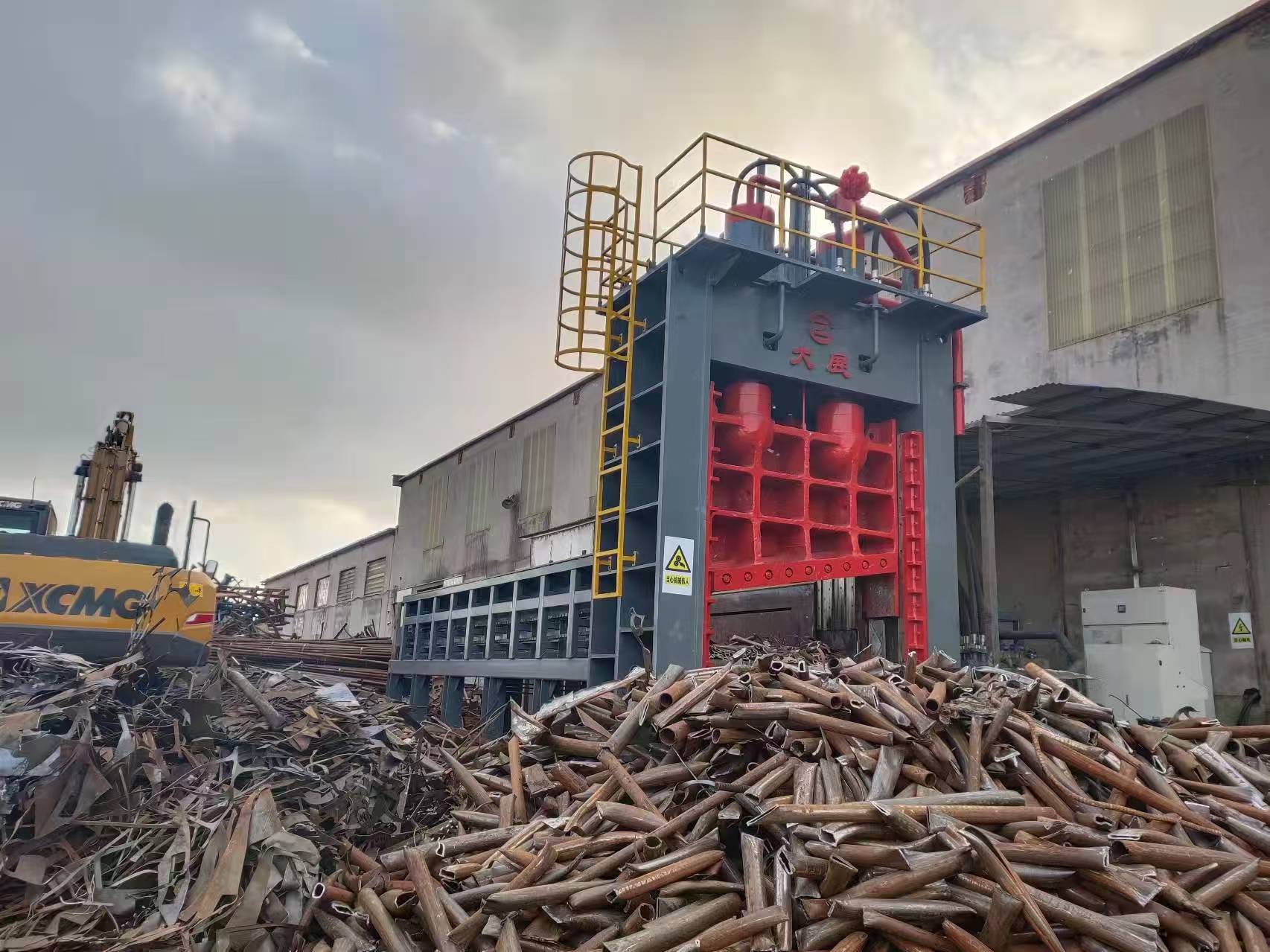

AEMK 660 ton/800 ton gantry shear

Description

Overall Advantages of AEMK Gantry Shears:

1. High Hydraulic System Pressure: The AEMK gantry shear's hydraulic system has a shearing pressure of 28~29MPa. While ensuring the hydraulic cylinder's designed thrust is achieved, it boasts the fastest operating speed with the same motor power, offering advantages in speed and output compared to similar products.
2. Control System with a Fast Shearing Mode: When shearing sheet metal, a single button switch to fast shearing mode shortens the cylinder's idle time, increasing shearing speed and output while reducing energy consumption.
3.High Hydraulic Cylinder Pressure Resistance: The hydraulic cylinder barrel is forged, with thick walls and few defects, resulting in high pressure resistance. The test pressure is 36.5MPa, providing a high safety factor. The shearing cylinder can operate for extended periods under a working pressure of 29MPa.
4.The servo motor uses Shenzhen Huichuan, the industry's leading brand of high-power hydraulic servo motors. These motors are meticulously crafted, undergo strict quality control, ensure stable quality, and offer high speed, large torque, and long lifespan.
5.The hydraulic pump adopts the A4V high-speed axial piston pump, which has stable quality, high speed, large displacement, low noise and low failure rate.
6.The hydraulic valve block adopts Jining Taifeng large-flow intelligent cartridge valve, which has good controllability, good sealing performance, strong pollution resistance, fast response, high working efficiency and strong stability.

Detailed Introduction to AEMK Hydraulic Gantry Shear:

1. The wide V-shaped guide rail structure ensures a tight fit between the inner and outer slide rails, resulting in even force distribution. The inner high-wear-resistant cast copper slide rail is wear-resistant, has low resistance, and a long service life. The outer four corner triangular slide rails are inlaid with wear-resistant steel plates for durability. Furthermore, during operation, an automatic lubrication pump automatically lubricates both the inner and outer slide rails.
2.The material pressing mechanism employs a corrugated, washboard-like structure to ensure smooth operation and durability.
3.The hydraulic oil cooling system uses a plate-fin radiator, which, compared to water cooling, requires less space, eliminates water consumption, and produces no wastewater, thus meeting environmental protection requirements. Furthermore, our air-cooled radiator offers a high safety factor and provides 2-2.5 times the rated heat dissipation, resulting in superior cooling performance.
4. The power system utilizes a servo motor and features optimized design, improving output power efficiency and reducing wasted energy. This achieves energy savings of 40% for the same output.
5. Before welding, the edges of the steel plates at the weld seams are beveled, and multi-layer, multi-pass welding is employed, resulting in excellent fusion and reliable weld quality.
6. The entire gantry frame is first welded and machined separately on the top, bottom, left, and right sides, then assembled and welded as a whole. This ensures the gantry frame's precision and guarantees smooth operation of the sliding track.
7. The equipment is equipped with a fully automatic control system. Core components utilize imported German Siemens PLCs and touchscreens. Operating parameters are automatically controlled, and operation is simple and easy to learn.
8.Equipment operating parameters and status are displayed intuitively on the interface, facilitating equipment monitoring, maintenance, and debugging. The entire operation requires no manual intervention; one-button start and stop are available. Single or multiple motors can be started independently, achieving truly fully automatic control. The equipment is easy for operators to learn.The equipment features a fast shearing mode, activated with a single button. This avoids excessive empty shearing strokes, improving shearing efficiency and output while preventing power waste.
9. The main frame structure has undergone stress analysis and practical verification, ensuring a high safety factor and robust durability.
10.All hydraulic lines utilize high-pressure welding technology. The weld ends are beveled, with argon arc welding for the root pass and MIG welding for the cap pass. Surface pickling removes impurities from the inner wall, ensuring a clean hydraulic system and stable long-term operation.
11.The company possesses large-scale gantry milling machines and other machining equipment, capable of precision machining the entire gantry frame to ensure the machining accuracy and quality of the entire equipment.

Brand

AEMK MACHINE

Model

Q91Y

Country of origin

China
