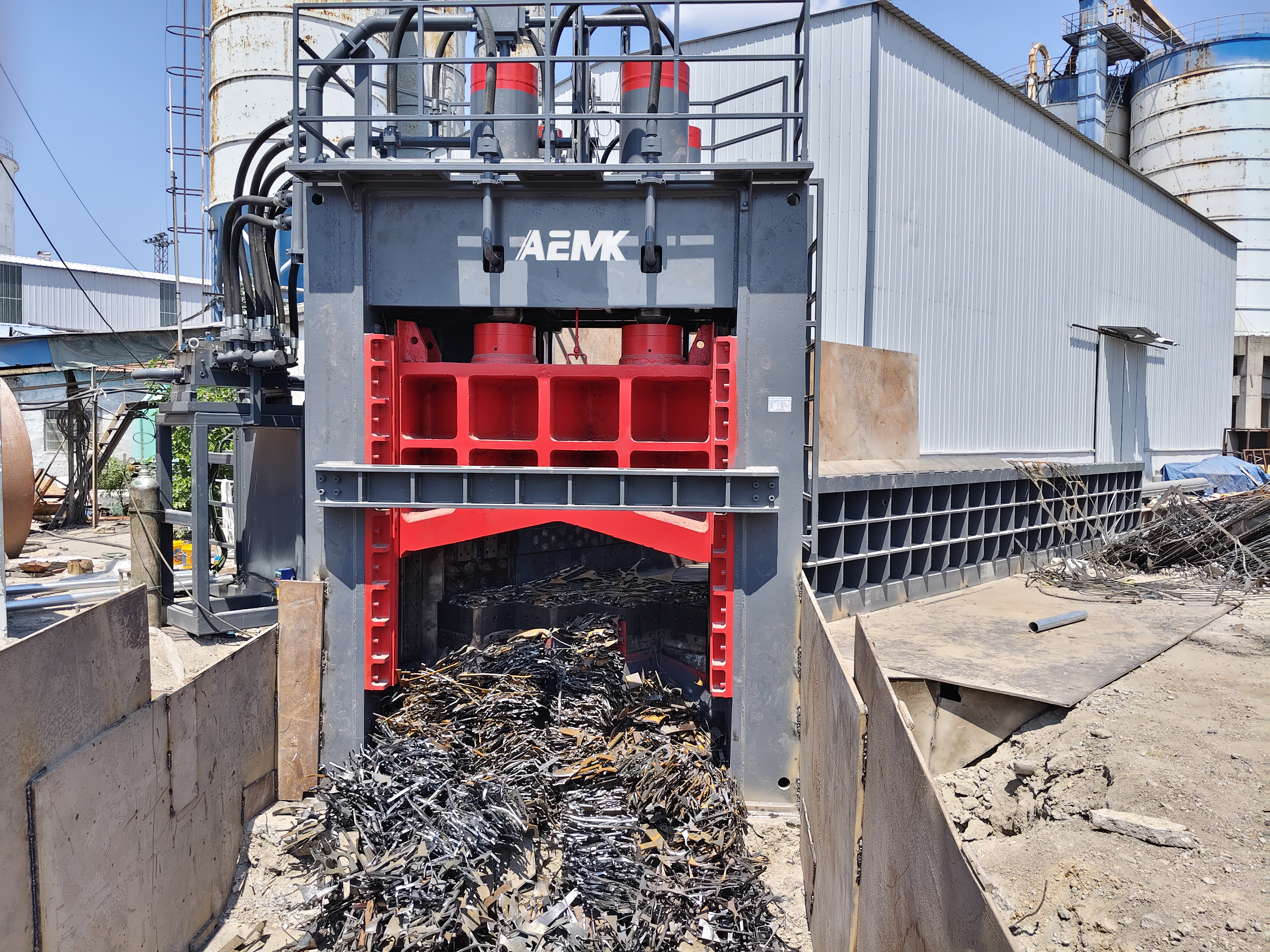

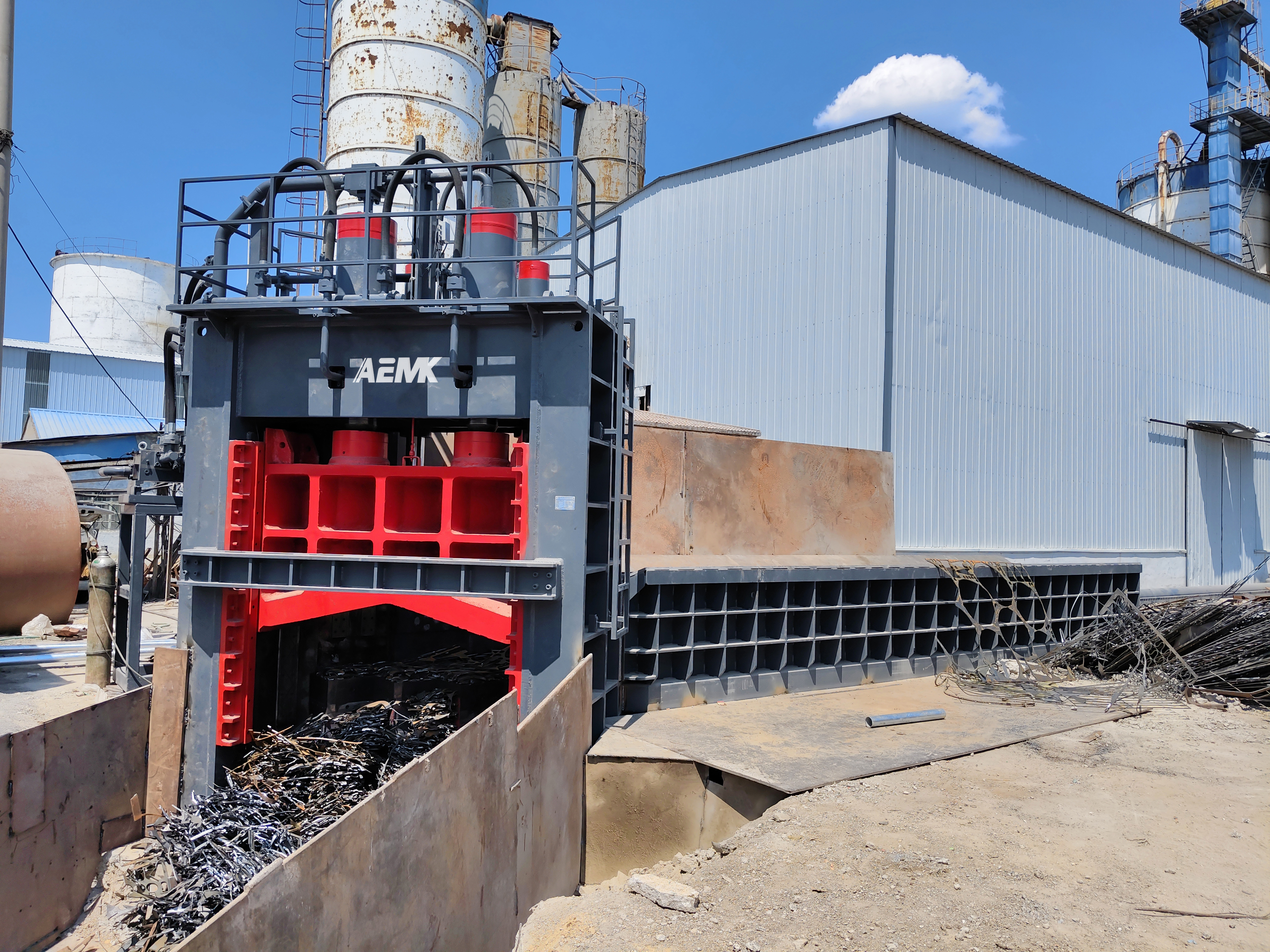

AEMK 660 ton/800ton multi-blade gantry shear

Description

Compared with similar products in the same industry, the overall advantages of AEMK gantry shears are as follows:

1. High working oil pressure. The shearing working pressure of AEMK gantry shear is set at 28-29 MPa, which is the highest in the domestic gantry shear industry.
2. The control system is designed with a fast shearing mode. When shearing sheet materials, one-button switching to the fast shearing mode shortens the running time of the oil cylinder when it is unloaded, while increasing the shearing speed and output, reducing power consumption.
3. The oil cylinder adopts the top products in the industry, which increases the service life and reduces the frequency and time of maintenance.
4. On the basis of ensuring strength, the gantry is manufactured using a special process to ensure the overall accuracy and improve the smoothness of the shearing and pressing mechanism.
5. The wear-resistant copper slide and triangular slide of the upper tool holder are wider and longer than similar products in the same industry to improve the guiding type of the upper tool holder, prevent the knife from skimming, improve the stability of the equipment and extend the service life.

Product advantages of Q91Y-800 stepped multi-blade gantry shears:

1.The pressing mechanism adopts a concave and convex washboard structure to ensure the smooth operation and durability of the pressing mechanism.
2. The hydraulic oil cooling system adopts plate-fin radiator cooling method. Compared with water cooling, it occupies less space, does not require water resources for cooling, does not produce sewage, and is more in line with environmental protection requirements. In addition, the air-cooled radiator configured by our company has a large safety factor, and the heat dissipation is 2~2.5 times the rated heat dissipation, and the cooling effect is good.
3.Before welding, the edge of the steel plate at the weld is beveled, and multi-layer and multi-pass welding is used, which has a good welding fusion effect and ensures reliable welding quality. The hydraulic pipeline weld adopts a special welding process, and flaw detection is carried out after welding to ensure that the pipeline is defect-free. The pipeline layout takes into account the fluid resistance factor, is neat and beautiful, and has a small pressure drop.
4. The equipment is equipped with a fully automatic control system. The core components use Siemens PLC and touch screen imported from Germany. The equipment working parameters are automatically controlled and the operation is simple and easy to learn.
5.The equipment working parameters and status can be displayed intuitively on the interface, which is convenient for equipment monitoring and maintenance and debugging. The entire operation process does not require unnecessary manual intervention. One-button start and stop can also realize independent start of single or multiple motors, truly realizing full automatic control, which is simple and easy to learn for operators.Parameters such as material pressing and tool holder lifting height can be set to avoid excessive empty shearing stroke. They can be adjusted according to the actual shearing material, thereby achieving the purpose of improving shearing efficiency and output and avoiding power waste.
6. All hydraulic pipelines are welded using the high-pressure pipeline welding process. The end faces on both sides of the weld are beveled, the base is welded with argon arc welding, and the surface is covered with double-protection welding. After 24 hours of high-pressure testing, the surface is pickled to remove impurities on the inner wall to ensure that there are no impurities inside the hydraulic system and it can work smoothly for a long time.
7.The company has large-scale gantry milling and other machining equipment, which can carry out fine processing of the entire gantry to ensure the processing accuracy and quality of the entire equipment.
8.The optimized design of the power system improves the efficiency of using the output power and reduces the loss of useless work, thus saving 20% of energy consumption under the premise of the same operating efficiency.

Brand

AEMK MACHINE

Model

Q91Y

Country of origin

China
