Professional Manufacturer CBN Cutting Tools DNGA150404/DNGA150408/DNGA150412 CBN Inserts Machining Engine Bearings

Description

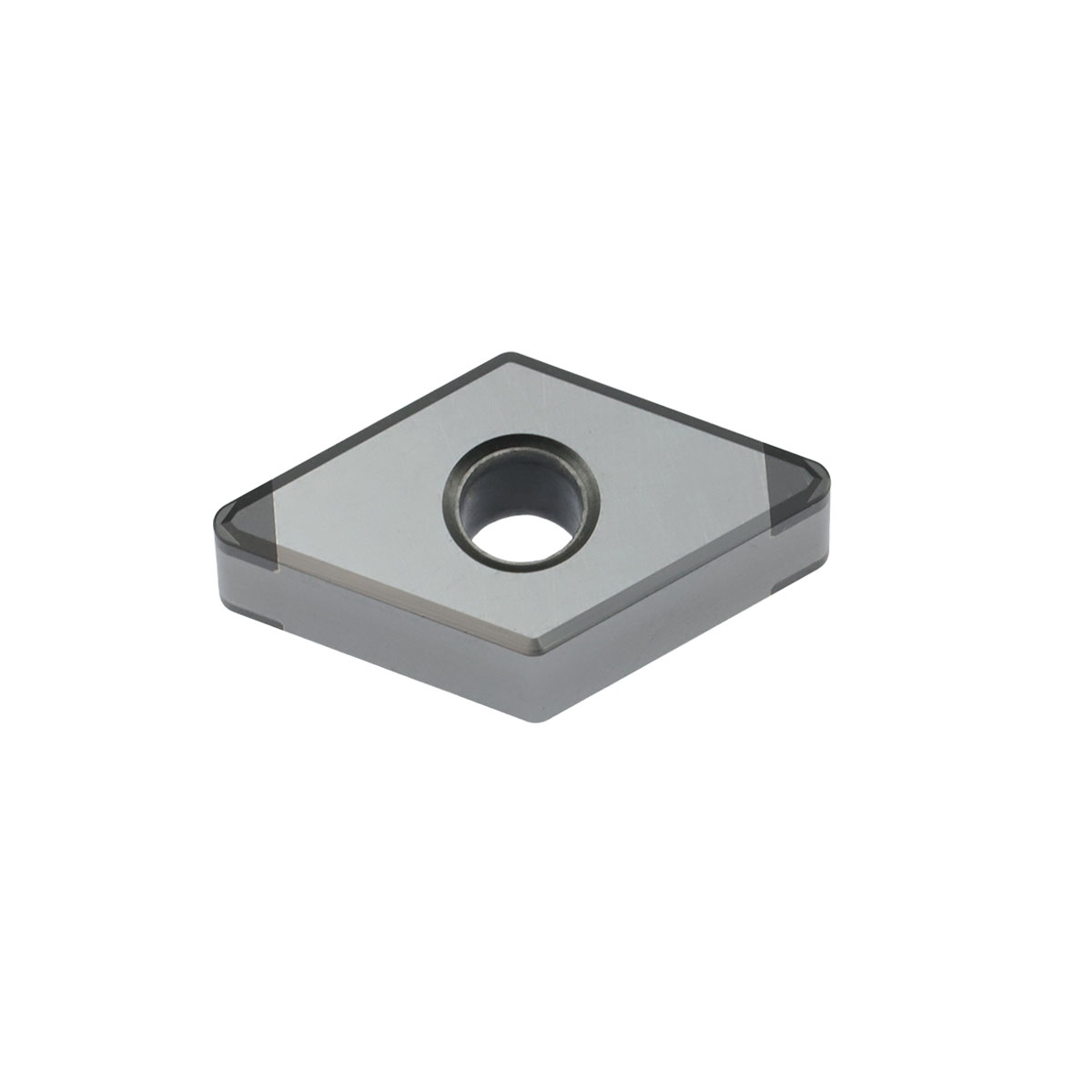

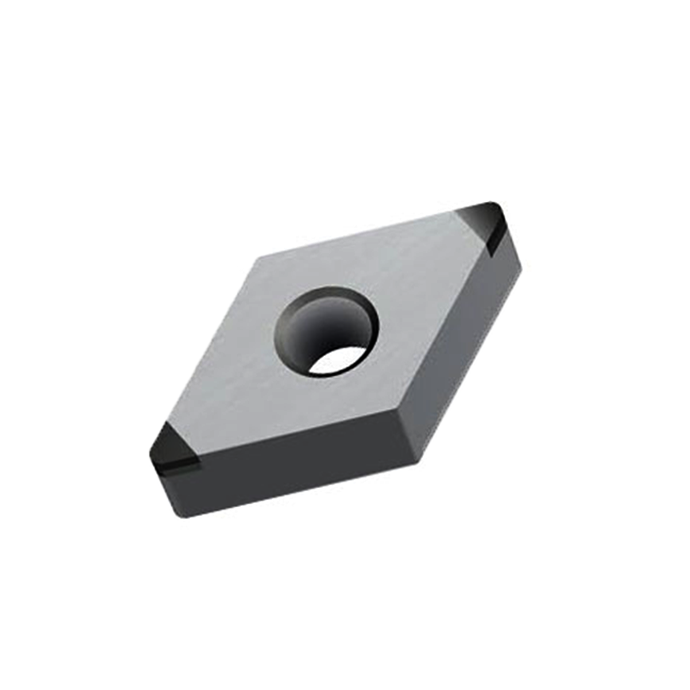

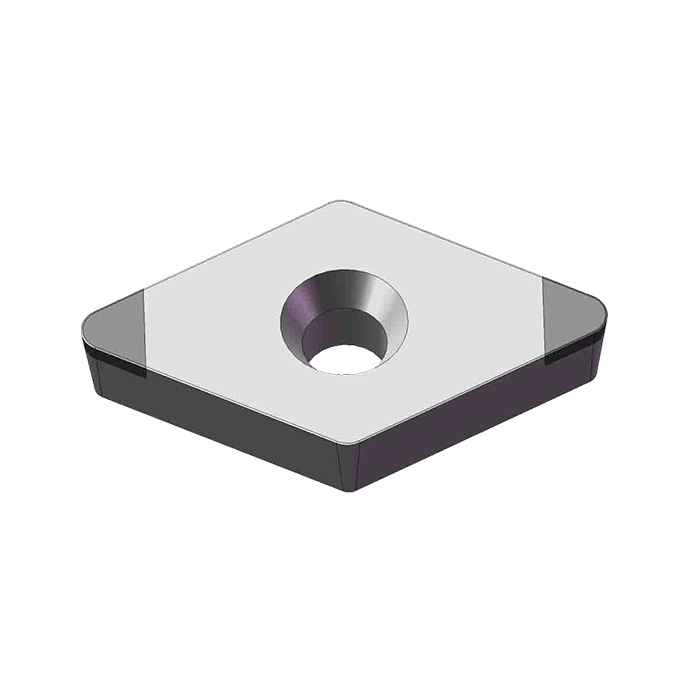

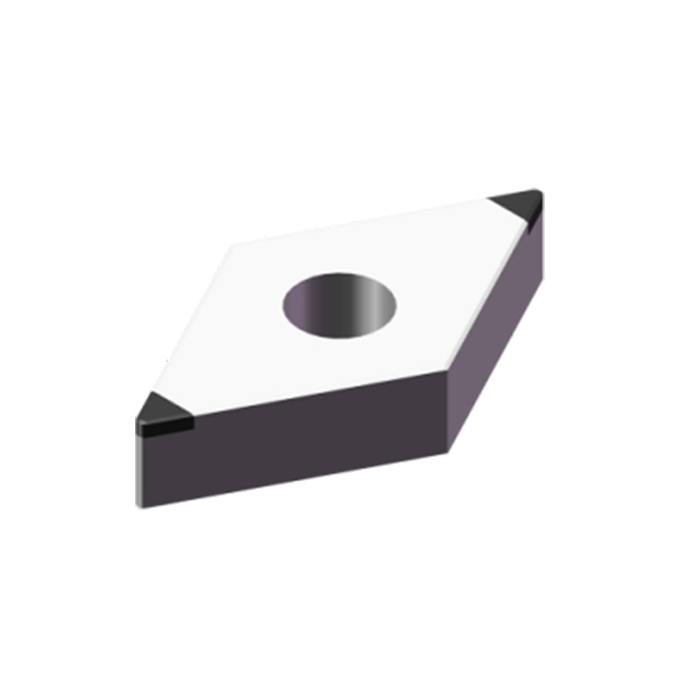

DNGA is an 55-degree diamond-shaped insert, which is made of PCBN composite sheet with excellent performance. It is a composite PCBN insert with a carbide base inlaid with a CBN tip. It is often used for finishing and semi-finishing of cast iron and hardened steel. , is a very commonly used cylindrical end face turning insert.

DNGA series inlaid composite PCBN inserts are very commonly used turning inserts, which can withstand continuous, intermittent and heavy interrupted machining conditions. There are different types of cbn insert materials for cast iron and hardened steel parts, which can fully meet different customer needs.

DNGA composite PCBN inserts conventional ISO standard type 55-degree diamond inserts, commonly used models are DNGA1104，DNGA120408，DNGA1504，DNGA1506 etc. This series of inserts can also be customized by double-sided welding according to customer needs, so that 4 cutting edges, nose radius and cutting edges can be customized.

DNGA composite PCBN inserts are often used for workpiece after hard turning and quenching, such as finishing gear end faces, gear outer circles and gear shafts, etc. The roughness can reach Ra0.4. When batch finishing gray cast iron workpiece, such as brake discs, brake drums , When the engine block is made of composite PCBN inserts, the surface finish is higher, and the efficiency is also greatly improved compared to cemented carbide.


When machining hardened steel parts, DNGA composite PCBN inserts can be coated. After coating, the tool life will be increased by 30%-45% compared with uncoated inserts, and the finish will also be improved.

Brand

SCBN TOOLS

Model

DNGA150404/DNGA150408/DNGA150412

Country of origin

China
