Solar Carport System (12.39kW) – Smart Parking with Integrated Clean Energy
Description
The Solar Carport System is an innovative solution that combines vehicle parking with solar power generation. Designed for commercial, industrial, and public infrastructure projects, this system not only provides reliable shelter for vehicles but also maximizes land utilization by converting parking areas into energy-generating assets.
Available in Grid-Tied, Off-Grid, and Hybrid configurations.
System Configurations Overview
1. Grid-Tied Solar Carport (A1)
Best suited for locations with stable grid access, this system feeds solar energy directly into the grid, reducing electricity costs.
Key Specifications:
Daily Power Generation: ~37 kWh
Solar Panels: 590W × 21 pcs
Grid-Tied Inverter: 12 kW × 1 unit
EV Charging Pile: 7 kW × 1 unit
Energy Storage Battery: Not included
Distribution Box: 12 kW customized
Anti-Backflow Device: VDG-EM-3 model
DC Cable: PV1-F 4mm², 192 m
Ground / AC Cable: Included
2. Off-Grid Solar Carport (B1)
Designed for remote or unstable grid areas, this system operates independently with energy storage capability.
Key Specifications:
Daily Power Generation: ~37 kWh
Solar Panels: 590W × 21 pcs
Off-Grid Inverter: 12 kW × 1 unit
Energy Storage Battery: 14 kWh × 1 set
EV Charging Pile: 7 kW × 1 unit
Distribution Box: 12 kW off-grid dedicated box
DC Cable: PV1-F 4mm², 192 m
Ground / AC Cable: Included
3. Hybrid Solar Carport (C1)
Combining the advantages of grid-tied and off-grid systems, the hybrid solution ensures energy independence while maintaining grid connectivity.
Key Specifications:
Daily Power Generation: ~37 kWh
Solar Panels: 590W × 21 pcs
Hybrid Inverter: 12 kW × 1 unit
Energy Storage Battery: 14 kWh × 1 set
EV Charging Pile: 7 kW × 1 unit
Distribution Box: 12 kW hybrid dedicated box
DC Cable: PV1-F 4mm², 192 m
Ground / AC Cable: Included

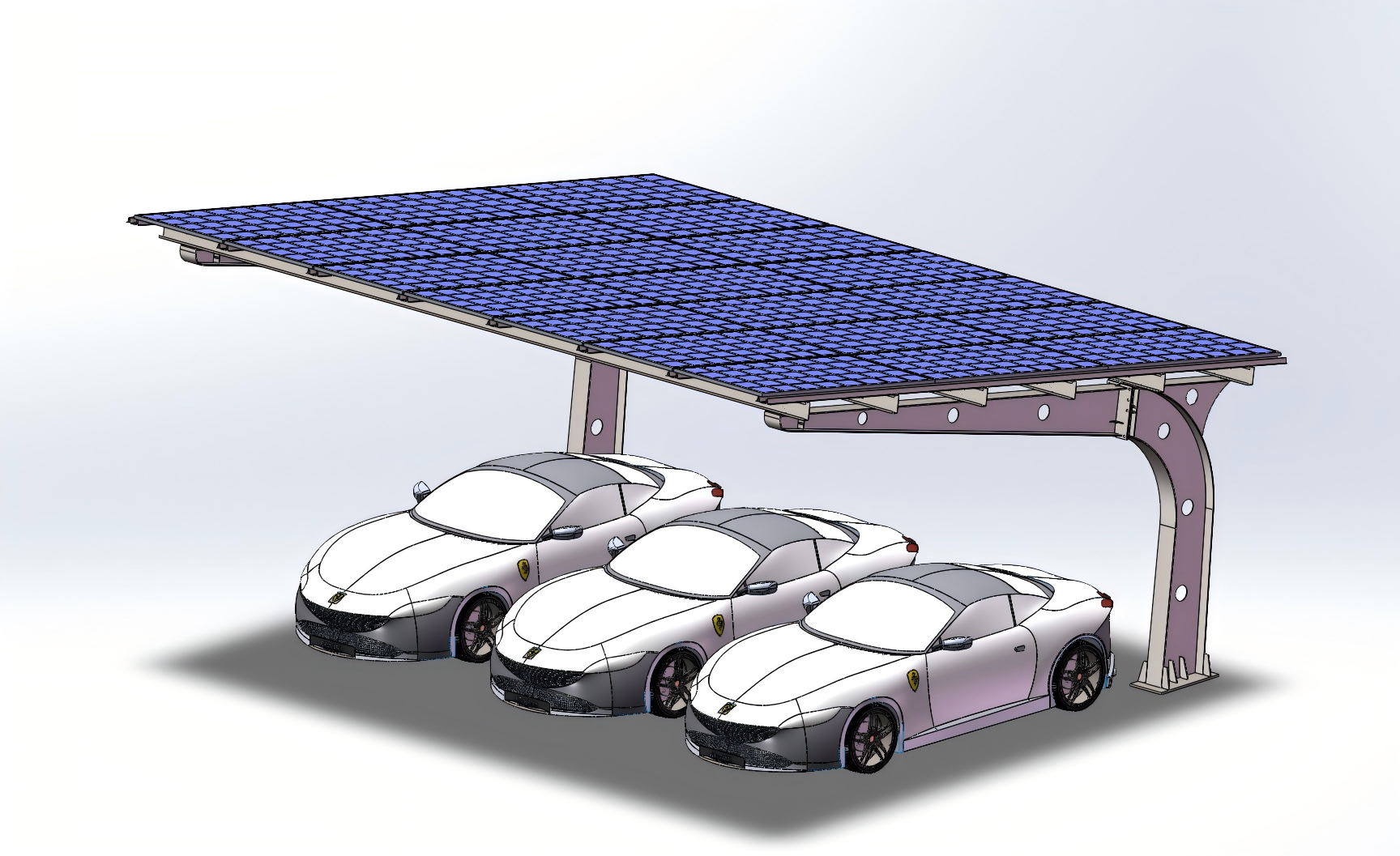

Steel Structure Carport Details
Structure Type: Three-car standard carport
Length: 8000 mm
Width: 7000 mm
Height: Low side 2700 mm / High side 3750 mm
Material: Galvanized steel (custom color coating available)
The robust steel structure ensures long-term durability, corrosion resistance, and adaptability to various environmental conditions.
Key Advantages
Efficient Energy Generation
Equipped with high-efficiency 590W solar panels, the system delivers stable daily output, helping reduce electricity costs and carbon footprint.
Integrated EV Charging
Each system includes a 7kW EV charging pile, enabling convenient charging for electric vehicles directly on-site.
Flexible Configurations
Choose from grid-tied, off-grid, or hybrid systems based on project requirements and local energy infrastructure.
Durable & Weather-Resistant Design
Galvanized steel structure with optional coating ensures excellent resistance to corrosion, wind, and harsh weather conditions.
Space Optimization
Transforms unused parking areas into productive energy assets without requiring additional land.
Applications
Commercial parking lots
Shopping malls and retail centers
Industrial parks and factories
Office buildings
Residential communities
Public infrastructure projects
Why Choose Our Solar Carport System?
For EPC contractors, distributors, and project developers, this solar carport solution offers a complete package—from structural design to power generation and EV charging integration. Its modular design simplifies installation and scalability, making it ideal for both small-scale and large-scale deployments.
Conclusion
The 12.39kW Solar Carport System is more than just a parking solution—it is a sustainable investment that generates clean energy, supports EV infrastructure, and enhances property value.
For detailed quotations, technical drawings, or customization options, feel free to contact us for professional support.
