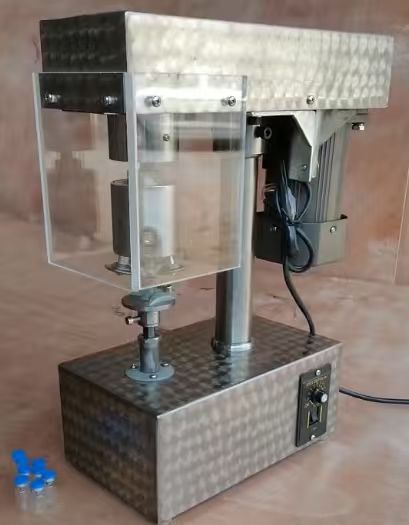

Speed-Adjustable Automatic Capping Machine

Description

The Speed-Adjustable Automatic Capping Machine is China's first domestically developed desktop three-blade speed-adjustable automatic capping machine. Equipped with a high-quality motor as its main unit, this machine can operate independently or be integrated into assembly lines. It delivers smooth sealing edges and excellent sealing performance. featuring a compact structure, precise positioning, user-friendly operation, and low damage rates. The capping speed is adjustable within a certain range, making it particularly suitable for beginners. Once operators gain proficiency, they can increase speed to boost production. Safety performance is significantly enhanced, meeting GMP requirements.

Main Characteristic

(1)The working surface use the bell mouth card-in Type self-determination
Center, the operation is most simple, safe and reliable ;
（2） Cap Rolling speed can be adjusted, suitable for beginners to use, high Factor of safety;
（3) In the same equipment with the corresponding head can be rolled a variety of specifications of the bottle cap, a variety of volume of bottles, cost-effective。

主要技术参数 main Technology Specification
外形尺寸 size L450±50mm W300±50mm H550±50mm
净 重 Net Weight 45±5KG
电 源 Mains 220VAC 50/60HZ 0.15KW
瓶口直径 Bottle Diameter 8~34.5mm
瓶子体积 Bottle Volume 2~1000ml
生产能力 Productive capacity 1800瓶Bottle/小时（H）max
调速范围 Control Speed Size 2~5瓶Bottle/10秒（10S）
型号规格 Model Specification 8,11，11A, 13,13A，15,15A,20,20A,24,24A,26,26A,28,28A,30,30A,32,32A
注:20表示20口径的纯铝盖，20A表示20口径的铝塑盖，以此类推。
Notice: 20 express 20mm pure aluminum cap, 20A express 20mm aluminum plastic cap, and so on.

Country of origin

China
