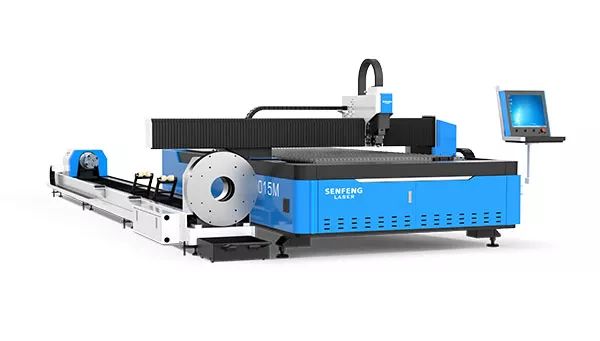

Open Type Metal Sheet And Pipe Laser Cutting Machine SF3015M

Category
Metal Sheet & Tube Laser Cutter
Brand
Senfeng
Model
SF3015M
Country of origin
China

Product details

SF3015M metal sheet and pipe laser cutting machine is equipped with fiber laser power from 1.5kw to 4kw. Optional 3 meters and 6 meters for pipe cutting.

Technical Parameters of Fiber Laser Cutter:

Model: SF3015M/SF4015M/SF4020M/SF6015M/SF6020M fiber laser cutter price
Working Area (mm): 3050 * 1530/4050 * 1530 /4050*2030/ 6050* 1530//6050* 2030
Laser Power (kw): 1.5/2/3/4
Maximum Speed (m/min): 80
X/Y Axis positioning accuracy (mm/m): ±0.05
X/Y Axis repeated positioning accuracy (mm): ± 0.02

Features of Metal tube and plate laser cutter:


Gantry Structure:

• Automatic positioning,timely dynamic response.
• High precision,high stability.

Optional chuck:

• Pneumatic Chuck Clamping
• Manual chuck clamping

Optional software:

• Cyptube, tubepro...

What Materials Does it Cut?

SF3015M is specially used for cutting carbon steel plates (pipes), stainless steel (pipes), galvanized steel plates and pipes , electrolytic zinc-coated steel (pipes), aluminum sheet (pipes), brass (pipes) and other thin metal materials.
