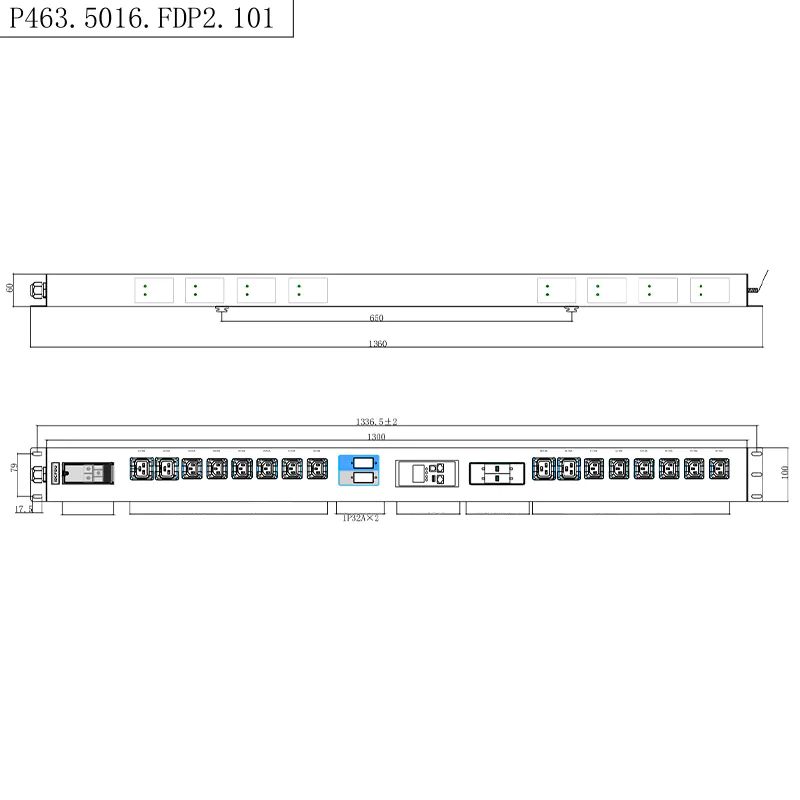

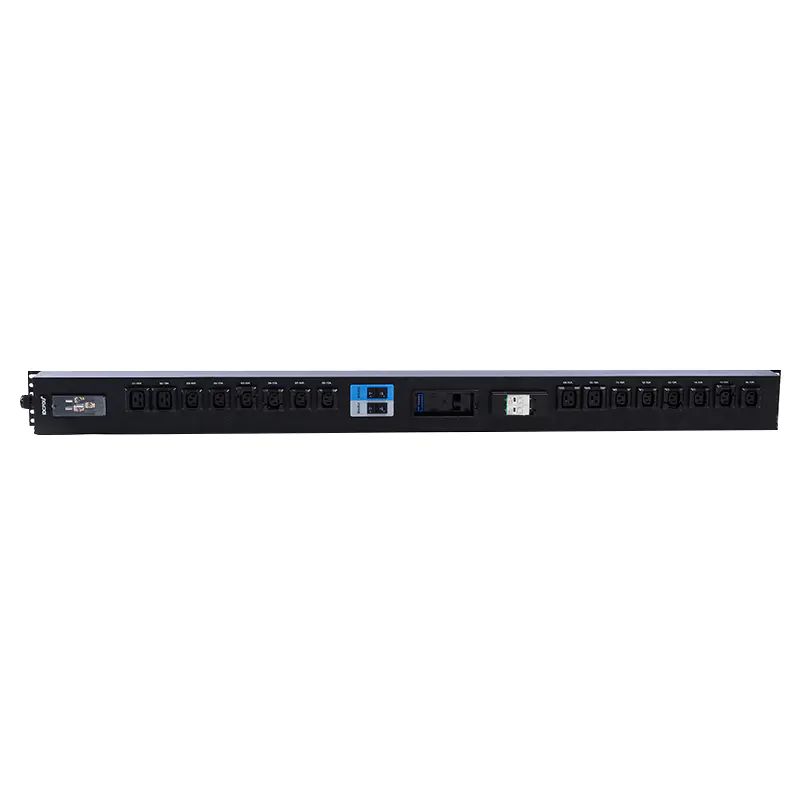

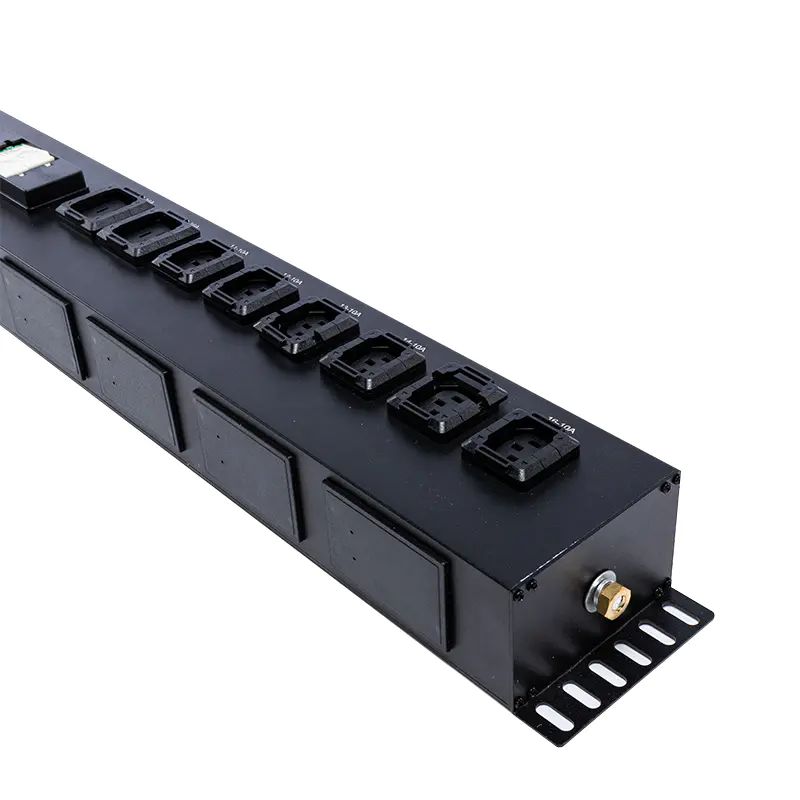

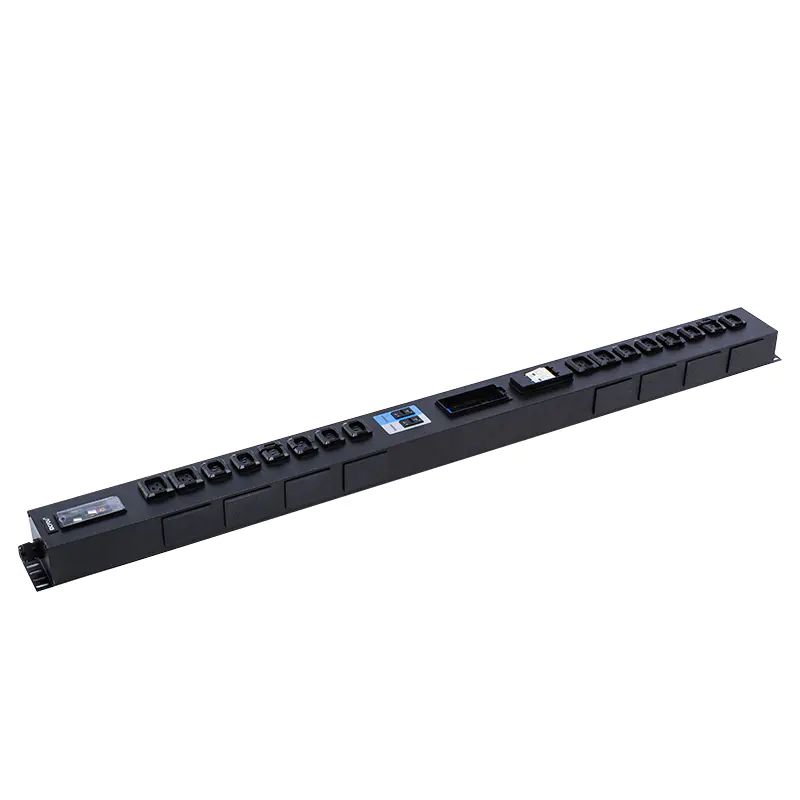

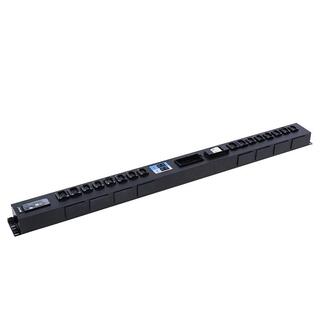

16 Outlets IEC C13 IEC C19 Lockable Socket Buckle equipped 2.5U Hot Swappable Surge Protection Vertical Modbus-RTU RS485 metered Rack PDU

Description

·Output AC 220V 16 channels 16A
·Provide RS485 bus
·Environmental monitoring: temperature and humidity, and threshold alarm
·The main circuit and branch circuits can be set for upper limit measurement and over-limit alarm
·Industrial-grade OLED display, current, voltage, power, energy, and switching status of the main circuit and branches
·Internal real-time clock, power-off time retention
·The whole machine has high reliability and strong anti-interference ability.
·Use high pressure resistant and flame retardant materials

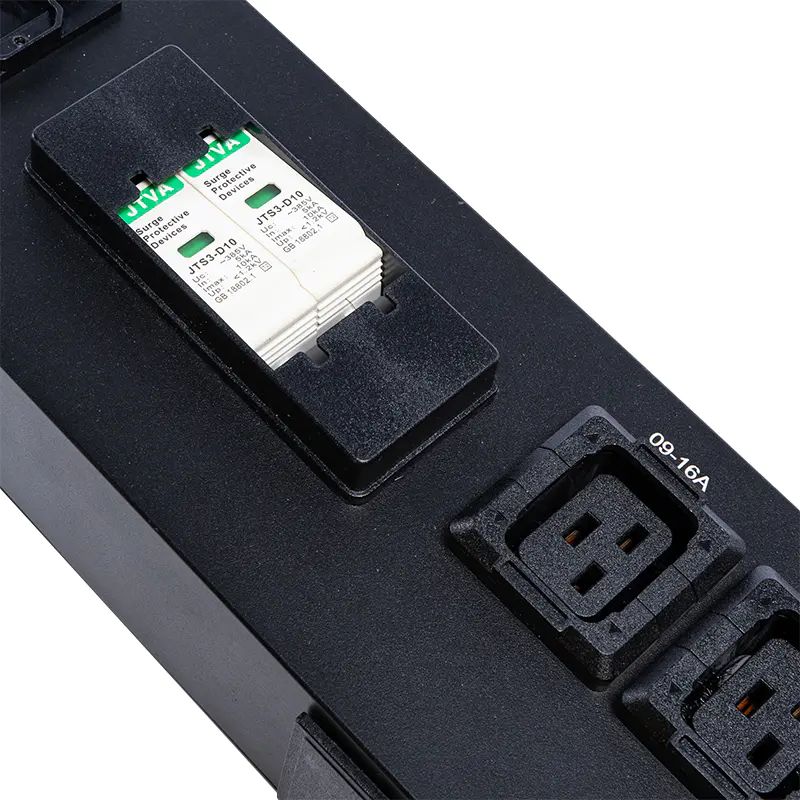

·180-265V wide voltage input, providing lightning and surge protection
·Support local viewing of voltage, total current, and alarm status;
·Support monitoring and viewing the voltage, current, and alarm status of each jack;
·Supports controlling the on/off of each output jack;
·Support customization of socket standards in most countries in the world;
·Output status indication
·Operating temperature -20-55c
·Operating humidity 10% 90% (non-condensing state)
·Working power supply: 85V ~ 264AC/DC;
·Accuracy level: Level 1;
·Measuring range: 0.5A~63A, 100~300V AC/DC;
·Current resolution: 0.01A
·Alarm function: current overcurrent alarm, the overcurrent alarm value can be set through the menu or communication
·The communication adopts MODBUS RTU protocol. The data format of one frame is: 1 start bit + 8 data bits + 1 stop bit. The baud rate is 9600 bit/S.
·OLED indicates the current status of each socket and equipment operation indication
·Nigital tube displays time and power parameter values
·PDU total current 32A, maximum 16A per channel

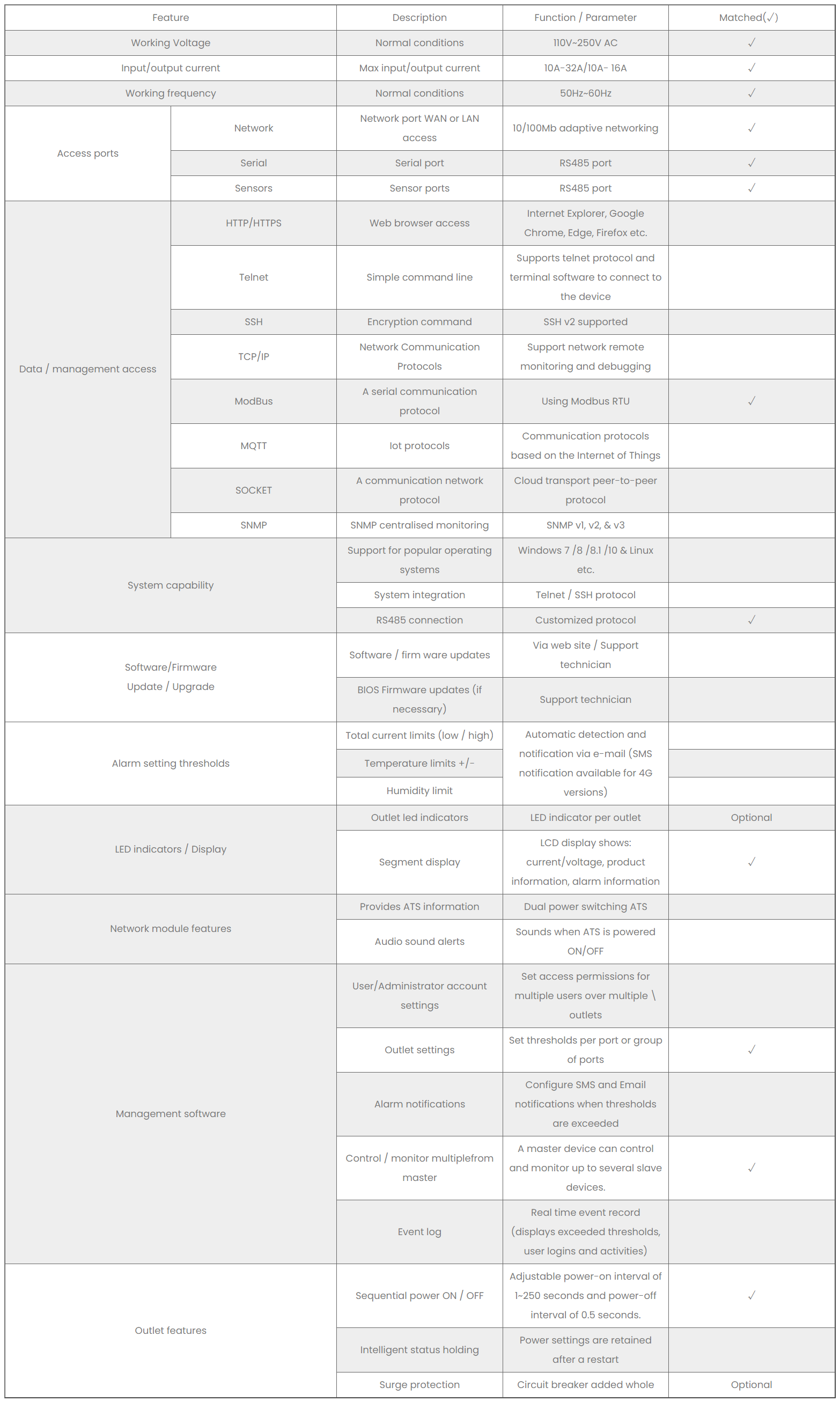

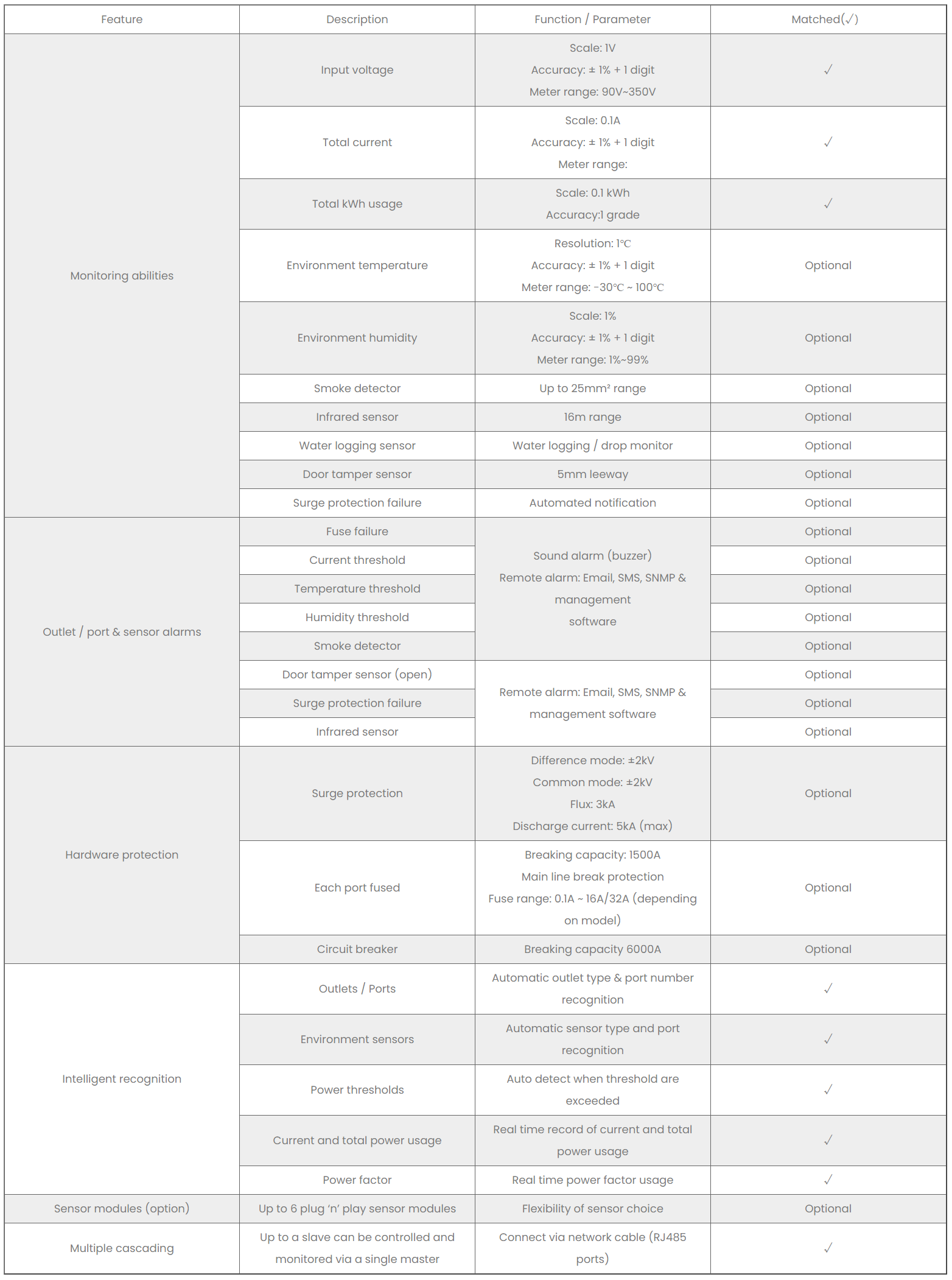

Specifications
